Service
Manual
Big Mac Club Bun In-Feed
LIMITED WARRANTY
This product is warranted to be free from defects in material and/
or workmanship for a period of two (2) years from date of original
Installation, not to exceed 30 months from date of shipment from
our factory. Any part or component which proves to be faulty in
material and/or workmanship within the warranty period will be
replaced or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts or labor.
This warranty is subject to the following exceptions/conditions:
Use of any non-genuine Prince Castle parts voids this
warranty and all work must be performed by an authorized
Prince Castle Service Agent.
All labor shall be performed during regular work hours.
Overtime premium will not be covered.
Travel charges are limited to 200 kilometers (100 miles) round
trip, 2 hours travel time, one trip per repair.
Damage caused by carelessness, neglect, and/or abuse (e.g.,
using wrong current, dropping, tampering with or altering
electrical components, or improper cleaning) is not covered.
Equipment damaged in shipment, by fire, flood or an act of
God is not covered.
Damage to non-stick coated surfaces is not covered by this warranty.
INFORMATION
527-500revJ_EN

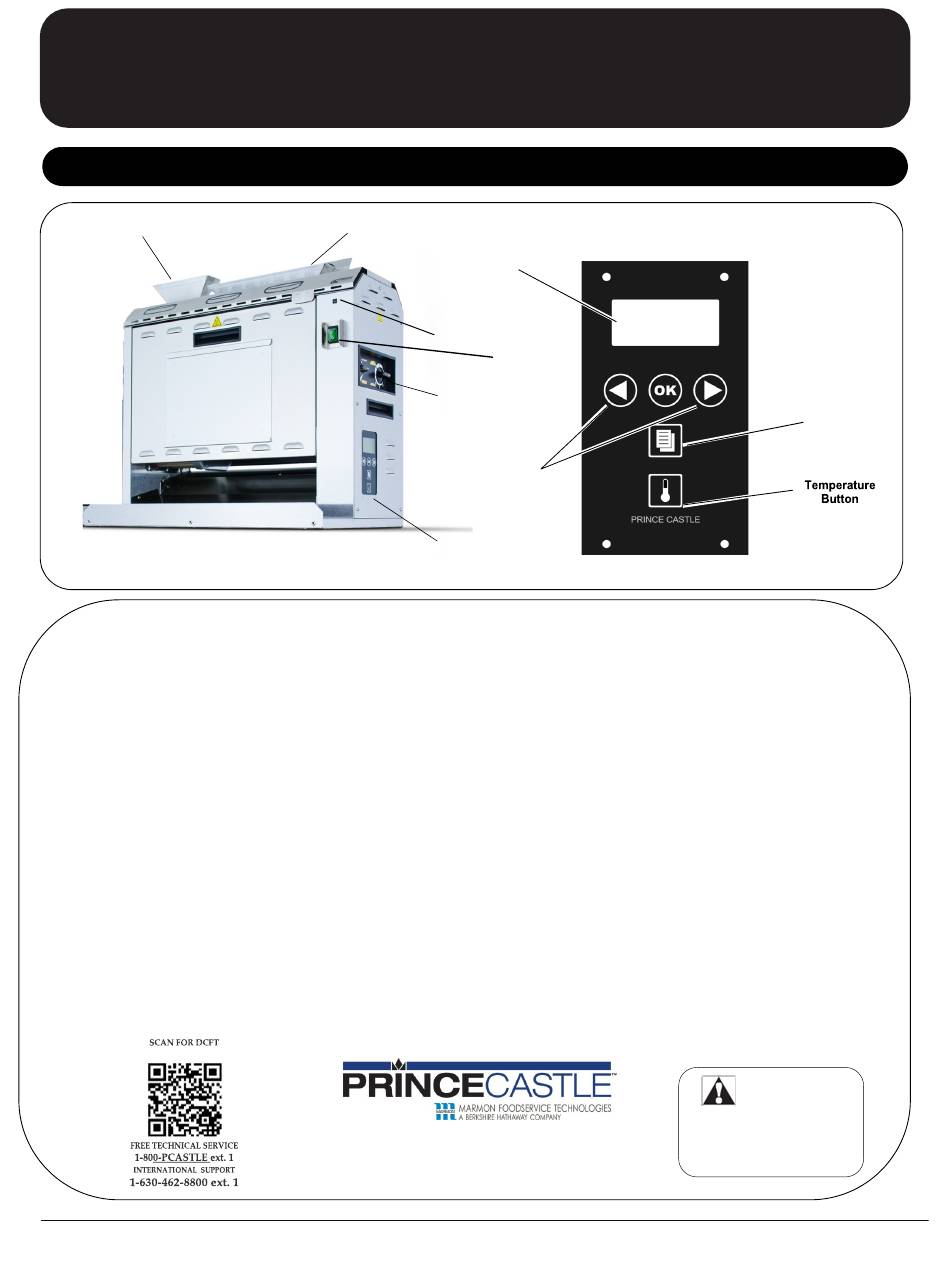

Product Identification
Heel and Crown Bun In-Feed
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Display
Indicator Light
Power Switch
Adjustment
Knobs
Left and Right
Scroll Buttons
Display
TABLE OF CONTENTS
Product Identification . . . . . . . . . . . . . . . . . . . . . . .1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . 2
Important . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Management Programming . . . . . . . . . . . . . . . . . 7
Lighter/Darker Adjustment. . . . . . . . . . . . . . . . . .11
Release Sheet Replacement Instructions. . . . . . 12
Club Belt Replacement Instructions. . . . . . . . . . .13
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 15
Optional Accessory. . . . . . . . . . . . . . . . . . . . . . . 16
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Vertical Toaster
DCFT-MCD Series
Menu
Button
WARNING
Before first use of this
equipment, read these
instructions!
Printed in USA 10/18 © 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prince Castle DCFT-MCD Series
Summary of Contents for Prince Castle DCFT-MCD Series
-
Page 1: Table Of Contents
(at the option of Prince Castle, Inc.) without Electrical Specifications ....2 cost to the customer for parts or labor. -
Page 2: Safety Information
Vertical Toaster DCFT-MCD Series Important Safety Information Prince Castle reserves the right to change specifications WARNING and product design without notice. Such revisions do not entitle the buyer to corresponding changes, im- Indicates information important to the proper operation of the provements, additions or replacements for previously unit. -
Page 3: Installation
Contact your local dealer. Verify parts. Verify that all parts have been re- Follow daily PM procedures (for first time use). ceived. When replacing parts use Prince Castle parts only. Vertical Toaster. Top Cover, Prince Castle Kit Install wire bun Part Number 527-761S. - Page 4 Vertical Toaster DCFT-MCD Series Installation (continued) Install top cover. Plug unit in. Plug unit into Tighten screws on a grounded receptacle both sides of top. with a matching plug con- figuration. WARNING All electrical connections must be in accordance with local electrical codes and any other applicable codes.
-
Page 5: Operation
Turn unit ON. Turn the View temperatures, if On/Off switch located desired. Pressing the on back of toaster to TEMPERATURE ON. The Prince Castle DCFT screen will ap- button once will display pear in the LCD display the front and rear for 3 seconds. - Page 6 Vertical Toaster DCFT-MCD Series Operation (continued) Begin continuous feeding. Feed product into top of IMPORTANT DCFT. Heels are toasted in the front slot and crowns are toasted in the rear slot. The sides to be toasted should face For oblong buns, insert the bun horizontally (with the widest the platen (Teflon sheet).
-
Page 7: Management Programming
Vertical Toaster DCFT-MCD Series Management Programming Enter program Choose Fahrenheit screens. Press or Celsius. From the and hold the PROGRAMMING MENU button for VERSION screen, 6 seconds. The press the RIGHT scroll PROGRAMMING button three times. VERSION screen will appear in the LCD display for 10 seconds. - Page 8 Vertical Toaster DCFT-MCD Series Management Programming (continued) Adjust set point tem- Change language. peratures. From the From the SELECT SELECT F/C screen, PLATEN TEM- press the LEFT scroll PERATURE button. screen, press the LEFT scroll button. From the SET PLATEN...
- Page 9 Vertical Toaster DCFT-MCD Series Management Programming (continued) Select Toast Time. Select MFY store. From From the PRO- the PROGRAMMING GRAMMING VERSION screen, VERSION screen, press the LEFT scroll press the LEFT scroll button once. button three times. From the SELECT...
- Page 10 Vertical Toaster DCFT-MCD Series Management Programming (continued) Exit programming. Press the MENU but- ton from the SELECT F/C, SELECT PLATEN TEMPERATURE or SELECT LANGUAGE screen or leave the controls inactive for 10 seconds. Toaster Settings Description Factory Presets Main Platen (Buns) 263֯...
-
Page 11: Lighter/Darker Adjustment
Vertical Toaster DCFT-MCD Series Lighter/Darker Adjustment Make adjustments. Return to display. Press and hold either Press the MENU the LEFT or RIGHT button briefly to return scroll button for 2 to the normal display seconds to adjust the mode. toast darkness setting indicator. -
Page 12: Release Sheet Replacement Instructions
Vertical Toaster DCFT-MCD Series Release Sheet Replacement Instructions The release sheet should be replaced every 3 months or if Fold and crease release sheet. Fold release sheet in sheet is worn, torn, excessively curled or if there is exces- half and create a crease in the center of the sheet. -
Page 13: Club Belt Replacement Instructions
Vertical Toaster DCFT-MCD Series Club Belt Replacement Instructions Depending on toaster use, the club belts should be Pivot latch arm and secure in metal clip. replaced approximately every 6 months. Belts should be replaced if worn or torn. Torn belt should be replaced. - Page 14 Vertical Toaster DCFT-MCD Series Club Belt Replacement Instructions (continued) Be sure that bead on belt rides in groove in belt Engage hooks on rear rollers. of side cover into slots in toaster frame and slide side cover up. Tighten thumbscrew to secure side cover.
-
Page 15: Troubleshooting
Vertical Toaster DCFT-MCD Series Troubleshooting WARNING BURN/ELECTRICAL SHOCK HAZARD! Platen sections are HOT and can cause severe burns or severe shock. Keep hands and objects out of the toaster unit! Failure to exercise caution may result in serious injury! Turn the unit off, unplug it and let it cool down completely before touching or working on internal apparatus. -
Page 16: Optional Accessory
DCFT-MCD Series Optional Accessory Parts List A Club Feed Extension is available as an optional ac- cessory for the Prince Castle DCFT. The Club Feed Extension permits easy access to the BigMac Club In-Feed Item Part from both sides of the toaster for single toaster prep lines.
