Operating
Instructions

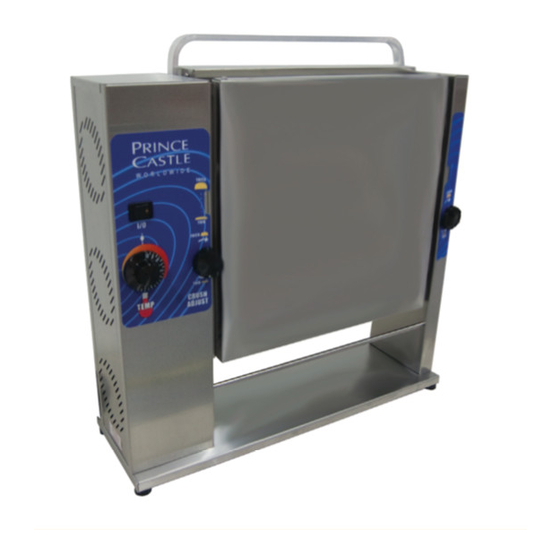

Vertical Contact Toaster
296 & 297 Series
Electrical Specifications
Volts
Hz
230
60
110/120
60
220
50/60
Table of Contents
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 8
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . .
197-538revC-EN
Watts
Amps
1700
7.5
1700
15.5
1700
7.5
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Fax : 630-462-1460
Toll Free: 1-800-PCASTLE
www.princecastle.com
Limited Warranty
This product is warranted to be free from defects in
material and/or workmanship for a period of 1 year from
date of original installation, not to exceed 18 months
from the date of manufacture.
Any component which proves to be faulty in material
and/or workmanship will be replaced or repaired (at the
option of Prince Castle, Inc.) without cost to the
customer for parts and labor. This warranty covers on
location service (i.e. trip charges and/or mileage). Travel
mileage is limited to 100 miles (200 Kilometers) round
trip (one trip warranty) from an authorized service
agency or its sub-service agency.
This warranty is subject to the following exceptions/
conditions:
• Use of any non-genuine Prince Castle parts voids
this warranty.
• All labor to be performed during regular work hours.
Overtime premium (the incremental amount) will be
charged to the customer.
• Damage caused by carelessness, neglect and/or
abuse (e.g., dropping, tampering or altering parts,
equipment damaged in shipment, by fire, flood or an
act of God) is not covered under this warranty.
• All problems due to operation at voltages other than
that specified on equipment nameplates are not
covered by this warranty. Conversion to correct
voltage is the customer's responsibility.
• This equipment must be serviced by Prince Castle
Authorized Service Agency or a Prince Castle
Service Technician during the warranty period.
• Normal adjustments as outlined in this manual are
not covered under warranty.
• Motors that fail due to the lack of monthly lubrication
will not be covered under warranty.
2
2
3
4
5
9
Printed in USA 6/06 © 2006
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prince Castle 296 Series
Summary of Contents for Prince Castle 296 Series
-
Page 1: Table Of Contents
Any component which proves to be faulty in material and/or workmanship will be replaced or repaired (at the option of Prince Castle, Inc.) without cost to the customer for parts and labor. This warranty covers on location service (i.e. trip charges and/or mileage). Travel... -
Page 2: Installation
• Notify carrier within 24 hours after delivery. • Save carton and packing material for inspection purposes. • Contact your Prince Castle dealer or the Figure 3 Prince Castle Customer Sales Department at Attach conveyor to the toaster by sliding the four pins 1-630-462-8800 if purchased directly. -
Page 3: Adjustments
Bun Compression: Adjustments The toaster platen can be adjusted to provide the necessary compression needed on various products. Conveyor and Motor Gears: • Turn the two platen adjustment knobs clockwise to There will be a 1/64" clearance between the conveyor gear compensate for use on thicker bread products. -
Page 4: Cleaning
Cleaning Preventive Maintenance (Motor) CAUTION: This is not jet-water approved, and To extend the life of your replacement motor, have an should not be cleaned with a water hose or jet authorized factory service technician or store manager wick spray. the shaft of the motor with 2-3 drops of oil every 3,000 hours of run time. -
Page 5: Troubleshooting
Conveyor Guide with Handle 197-475 Overlay (Motor Housing) 197-259 Release Sheet Conversion Kit, 197/297 197-402 Release Sheet (Pkg of 2) Conversion Kit 296 Series 297-151 Release Sheet (Pkg of 4) 297-T12PHH only 297-149 Clamp Bar 297-T12PHH only 197-260 Release Sheets (Pkg of 2), 297 Series * Not shown. - Page 6 Conveyor Assembly Parts List Part Part Item Number Description Item Number Description 197-463S Left and Right Side Shaft Carrier 197-465 Driven Shaft Assy 197-302 Sprocket Kit (Pkg of 2) 197-459S Left and Right Side Shaft Carrier 89-684 Complete Chain Assy Adjustment Assy 89-590 Single Conveyor Chain Link...
- Page 7 Rear View 4 Places Parts List Part Part Item Number Description Item Number Description 197-436S Gear Kit (20/40 Second) 73-008 Self Locking Hex Nut 197-476S Gear Kit (12 Second) 73-030 Hex Nut 197-477S Gear Kit (14 Second) 79-016 Flat Washer 197-437S Gear Kit (30 Second) 76-033...
- Page 8 Internal Components Parts List Part Item Number Description 76-300 Slotted Pan Head Screw 87-028AS Motor (208-240 Volt) 87-029S Motor (120 Volt) 73-031 Hex Nut 79-033 Washer 76-051 Slotted Binder Head Screw 79-055 Flat Washer 76-040 Slotted Binder Head Screw 79-017 Split Lock Washer 73-030 Hex Nut...
-
Page 9: Wiring Diagram
Wiring Diagram Voltage Connection High Voltage Connection (220-240 Volts) Low Voltage Connection (200-208 Volts) 355 East Kehoe Blvd. • Carol Stream, IL 60188 USA Telephone: 630-462-8800 • Fax : 630-462-1460 197-538revC-EN Toll Free: 1-800-PCASTLE Printed in USA 6/06 © 2006 www.princecastle.com...
Need help?
Do you have a question about the 296 Series and is the answer not in the manual?
Questions and answers

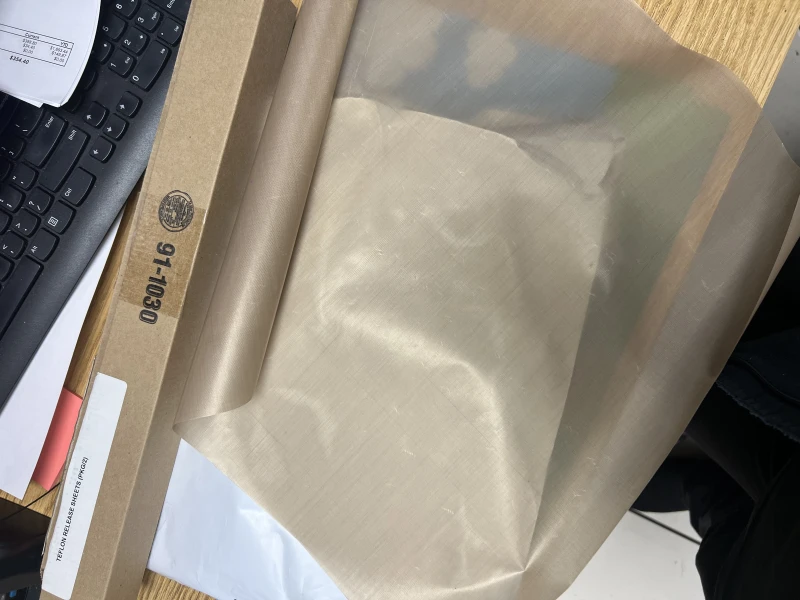

I need to order the teflon sheet
