Operation
Manual
The Prince Castle 247-ACC & 248-BCC Toaster Grill Series
offers two practical options for quick-and-easy bread product
toasting. Both models have pivoting sides allowing for easy

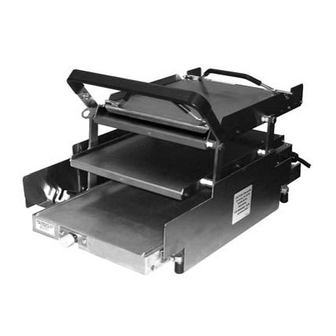

access to the platens for cleaning. The 248-BCC Model has
the added feature of a Club sandwich level.
LIMITED WARRANTY
This product is warranted to be free from defects in material and/
or workmanship for a period of two (2) years from date of original
installation, not to exceed 30 months from date of shipment from
our factory. This warranty covers on location service for 2 years
(i.e. trip charges and/or mileage). Travel mileage is limited to
100 miles (200 kilometers) round trip (one trip per warranty) from
an authorized service agency or its sub-service agency. Any
component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost to the customer for parts or labor.
247-500revH-EN
Product Identification
Model 247-ACC
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Models 247-ACC & 248-BCC
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this
warranty.
• All labor shall be performed during regular work hours.
Overtime premium will be charged to the buyer.
• Damage caused by carelessness, neglect, and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in
shipment, by fire, flood or an act of God) is not covered under
this warranty.
• The power cord on this product is rated for a maximum
surface temperature of 194°F (90°C). If the cord comes into
contact with any heated surface, it may be damaged and/or
cause damage to the product and/or injury to the user.
Damage resulting from any such misuse may result in a
voided Warranty at the sole discretion of the manufacturer.
Toaster Grills
Model 248-BCC
Printed in USA 03/10 © 2010
Advertisement
Table of Contents
Related Manuals for Prince Castle 247-ACC
Summary of Contents for Prince Castle 247-ACC
-
Page 1: Product Identification
Models 247-ACC & 248-BCC Manual Product Identification The Prince Castle 247-ACC & 248-BCC Toaster Grill Series offers two practical options for quick-and-easy bread product toasting. Both models have pivoting sides allowing for easy access to the platens for cleaning. The 248-BCC Model has the added feature of a Club sandwich level. -
Page 2: Table Of Contents
Ordering Parts and Service......16 Model 247-ACC Exploded View ....17 Model 248-BCC Exploded View . -
Page 3: Installation
Before first use, clean and condition the platens (see Conditioning Platens). Setting the Controls The model 247-ACC & 248-BCC Toaster Grills provide two modes of operation: DEDICATED MODE and PRODUCT MODE. • DEDICATED MODE is a simple mode of operation for toasting buns that is similar to the 213, 411 &... - Page 4 Toaster Grills Models 247-ACC & 248-BCC Product Selection (Product Mode Only) Press and release any of the four numbered buttons (i.e., 1, 2, LEDs 3 or 4) to select the product associated with that button. (See Figure 2.) The LED above the selected Product button glows steady green to indicate the current selection and the display will show the selected product’s name.
-
Page 5: View/Change Set Temperature
Toaster Grills Models 247-ACC & 248-BCC Resetting to Factory Presets To reset all settings to factory presets, at power-on immediately (within 3 seconds) press and hold the LOGO, UP and DOWN buttons simultaneously until the display shows “PSET”. Release all buttons. After about 10 seconds, the unit will operate with factory preset temperature, time and display name values. -
Page 6: View/Change Set Toasting Time
Toaster Grills Models 247-ACC & 248-BCC To Change the Set Temperature NOTE: While the unit is adjusting to the new set Press the button(s) used to view the set temperature. temperature, the product name flashes in the display. In the Hold the button(s) for 6 seconds. - Page 7 Toaster Grills Models 247-ACC & 248-BCC In Dedicated Mode: Dedicated Mode Press and release the TIME button. The display will show the present toasting time for “BUN1”. In either mode, after 3 seconds the display will return to showing the currently selected product time. (See Figure 10.)
-
Page 8: View/Change Duty Time Alarm
Toaster Grills Models 247-ACC & 248-BCC View/Change Duty Time Alarm A. Press and hold the LOGO button. Immediately press Press and release the UP or DOWN buttons to change the TIME button. the currently selected product’s duty time. B. Release all buttons. The display will show the present When finished, press and release the TIME button to save duty time for “BUN1”... -
Page 9: View/Calibrate Platen Temperature
Toaster Grills Models 247-ACC & 248-BCC View/Calibrate Platen Temperature Important! Do NOT perform this procedure until the Toaster Grill has been on for at least 45 mins. and the temperature has stabilized. Do NOT use the Toaster Grill during the first 45 minutes. - Page 10 NOTE: A yellow temperature port is located on the back of the adjust the Toaster Grill’s temperature display to match 247-ACC Model, behind the platen (same as the Lower External the meter’s temperature display, by the following Port in on 248-BCC Model figure above). (See Figure 14.) procedure.
-
Page 11: Change Product Name (Product Mode Only)
Toaster Grills Models 247-ACC & 248-BCC Change Product Name (Product Mode Only) Place the Toaster Grill in PRODUCT MODE (refer to When the desired character is displayed in the first “Mode Selection”). position, release the UP or DOWN arrow, and press and release button 3 to move on to the second display Press one of the four numbered buttons (i.e., 1, 2, 3 or 4) -
Page 12: Adjusting Bun Crush Settings
Toaster Grills Models 247-ACC & 248-BCC Adjusting Bun Crush Settings To adjust the bun crush settings, use the knob located on the front of the unit’s base. There are 10 incremental settings, each increasing the center gap by approximately 2 mm. -
Page 13: Conditioning The Platens
Toaster Grills Models 247-ACC & 248-BCC Conditioning the Platens A. Rub a generous amount of the Release Agent over the To minimize bun-sticking, the platens should be wiped entire surface of the platen until well coated. weekly with McD Bun Toaster Grill Release Agent. -
Page 14: Cleaning
Toaster Grills Models 247-ACC & 248-BCC Cleaning A. Periodically and upon shutdown, use a clean, dry soft WARNING cloth to wipe down the Toaster Grill unit. Do Not Clean with Water Jet. B. When the platens are cool, you may also use a mild soap solution on a damp soft cloth to remove stubborn food remains, if necessary. -
Page 15: Troubleshooting Guide
Toaster Grills Models 247-ACC & 248-BCC Troubleshooting Guide WARNING WARNING SHOCK HAZARD! Live circuits are exposed! Use extreme Inspection, testing and repair of electrical equipment are to care during electrical circuit tests. Do NOT attempt any be performed by qualified service personnel ONLY. Unplug troubleshooting without proper authorization to do so. -
Page 16: Ordering Parts And Service
Toaster Grills Models 247-ACC & 248-BCC Ordering Parts and Service To Order Replacement Parts or Service — INTERNATIONAL: Contact your Kitchen Equipment Supplier or designated repair facility for parts and service. Printed in USA 03/10 © 2010 247-500revH-EN... -
Page 17: Model 247-Acc Exploded View
Toaster Grills Models 247-ACC & 248-BCC Exploded Views Parts Breakdown Part Part Description Description 248-141S Overlay Kit * 248-048S Safety Latch Kit * 248-140S Display Printed Circuit Board Kit * 248-202S Knob Kit 66-017S Strain Relief Kit * 248-045S Rear Bun Fence Kit... -
Page 18: Model 248-Bcc Exploded View
Toaster Grills Models 247-ACC & 248-BCC Parts Breakdown Part Part Description Description 248-141S Overlay Kit * 248-202S Knob Kit 248-140S Display Printed Circuit Board Kit * 248-045S Rear Bun Fence Kit 66-017S Strain Relief Kit * 72-416S Power Cord Kit... -
Page 19: Model 247-Acc Wiring Diagram
Toaster Grills Models 247-ACC & 248-BCC Wiring Diagrams Model 247-ACC 247-500revH-EN Printed in USA 03/10 © 2010... -
Page 20: Model 248-Bcc Wiring Diagram
Toaster Grills Models 247-ACC & 248-BCC Model 248-BCC Printed in USA 03/10 © 2010 247-500revH-EN...
