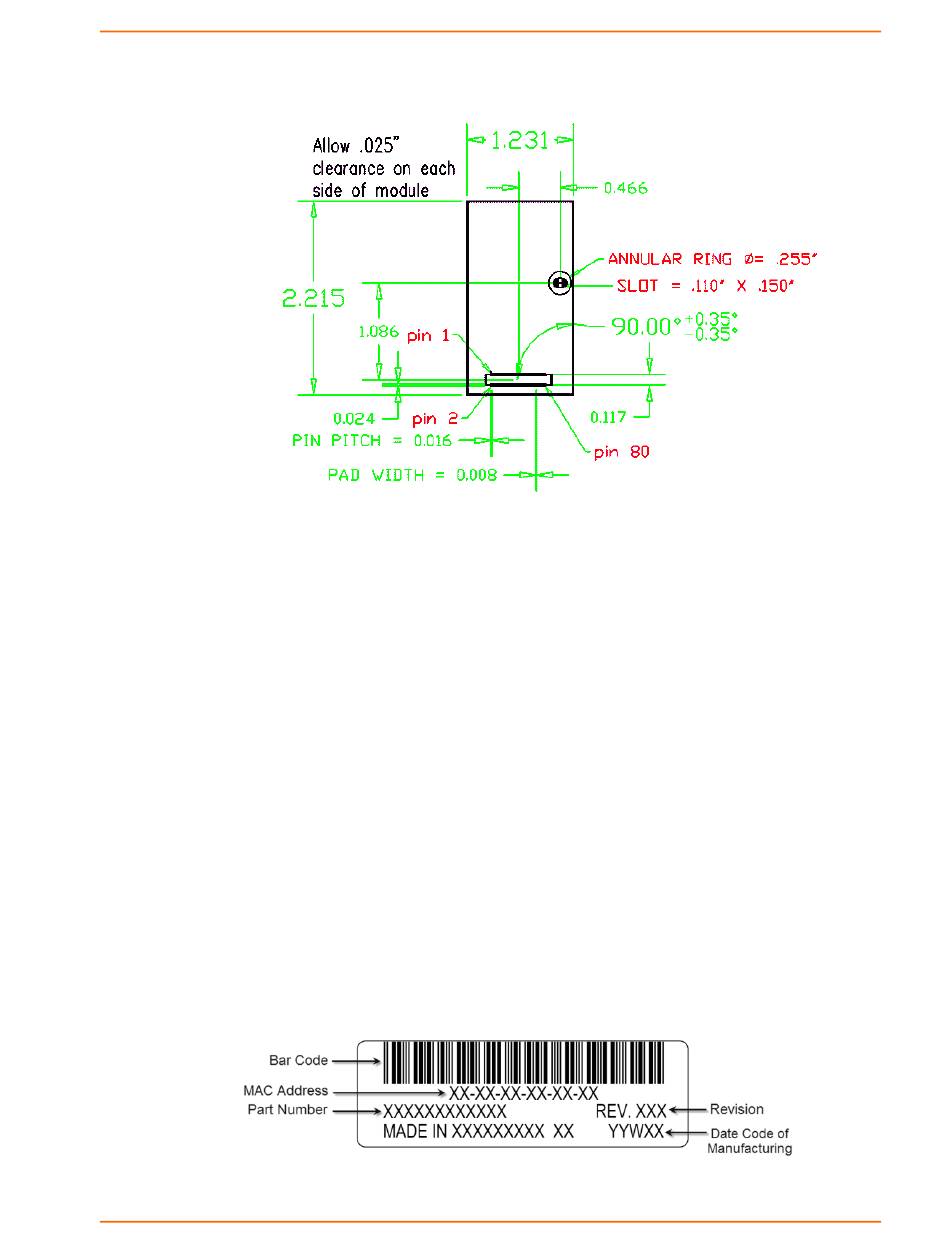

Figure 2-13

Note:

The recommended mounting diagram above assumes that both male and female I/O

connectors are placed with an angular tolerance of ±0.35° or better. If this tolerance cannot

be held on the customer's PCBA, a larger slot and component keepout should be used to

accommodate.

Mounting Instructions

The PremierWave module should be mounted with hardware that maintains a 2mm height.

Lantronix can provide this hardware as part number 120-093-R. The mated height of the

interface connector is 2mm. If custom hardware is made, it must maintain the mounting

height of 2mm to ensure the interface connector is properly seated.

If the PremierWave module will be subjected to drops, or significant shock and vibration,

additional methods of securing the module are recommended. Any additional securing

mechanism should prevent the interface connector from disconnecting. The design of this

mechanism may change depending on the customer enclosure, PCB and weight of the

system.

PremierWave® Embedded System on Module Integration Guide

Pin Locations of PremierWave Module (Top View)

Figure 2-14

PremierWave EN Product Label

2: Description and Specifications
