Pin Name
Description
E_SPEED
Link Speed Active low for
100Mbps, Off (high) for
10Mbps.
3V3
3.3 V power

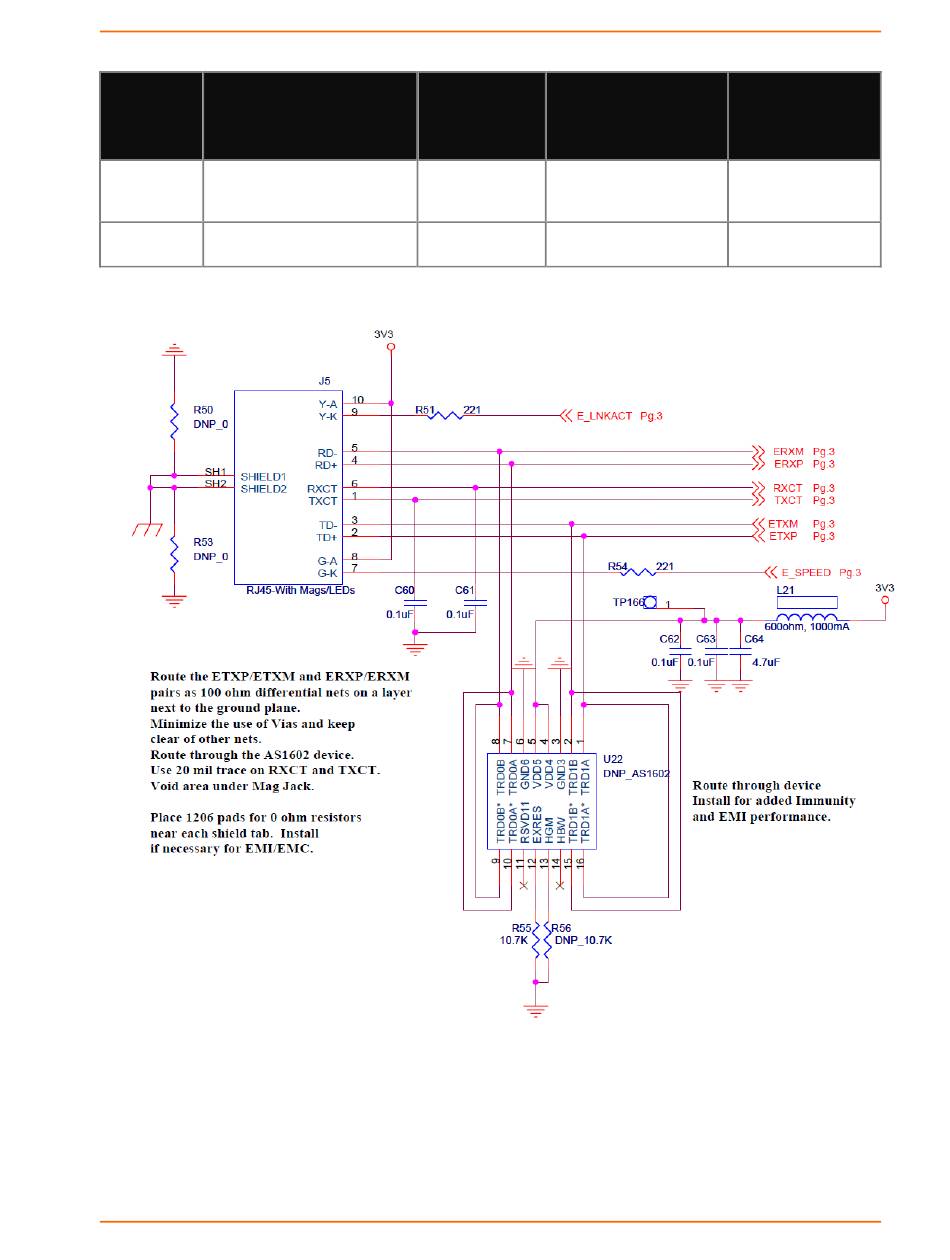

Figure 2-4 Ethernet connections to an external 10/100 RJ45 Magnetic Jack (J5)
PremierWave® Embedded System on Module Integration Guide
PremierWave
Signal Requirement
Connector
Pins
21
Route to LED cathode
through 220 ohm or
greater.
3V3
3.3V power, connect to
LED anodes.
2: Description and Specifications
RJ45 MagJack
Belfuse, 08B0-
1D1T-06-F Pin
assignment
7
8, 10
14
