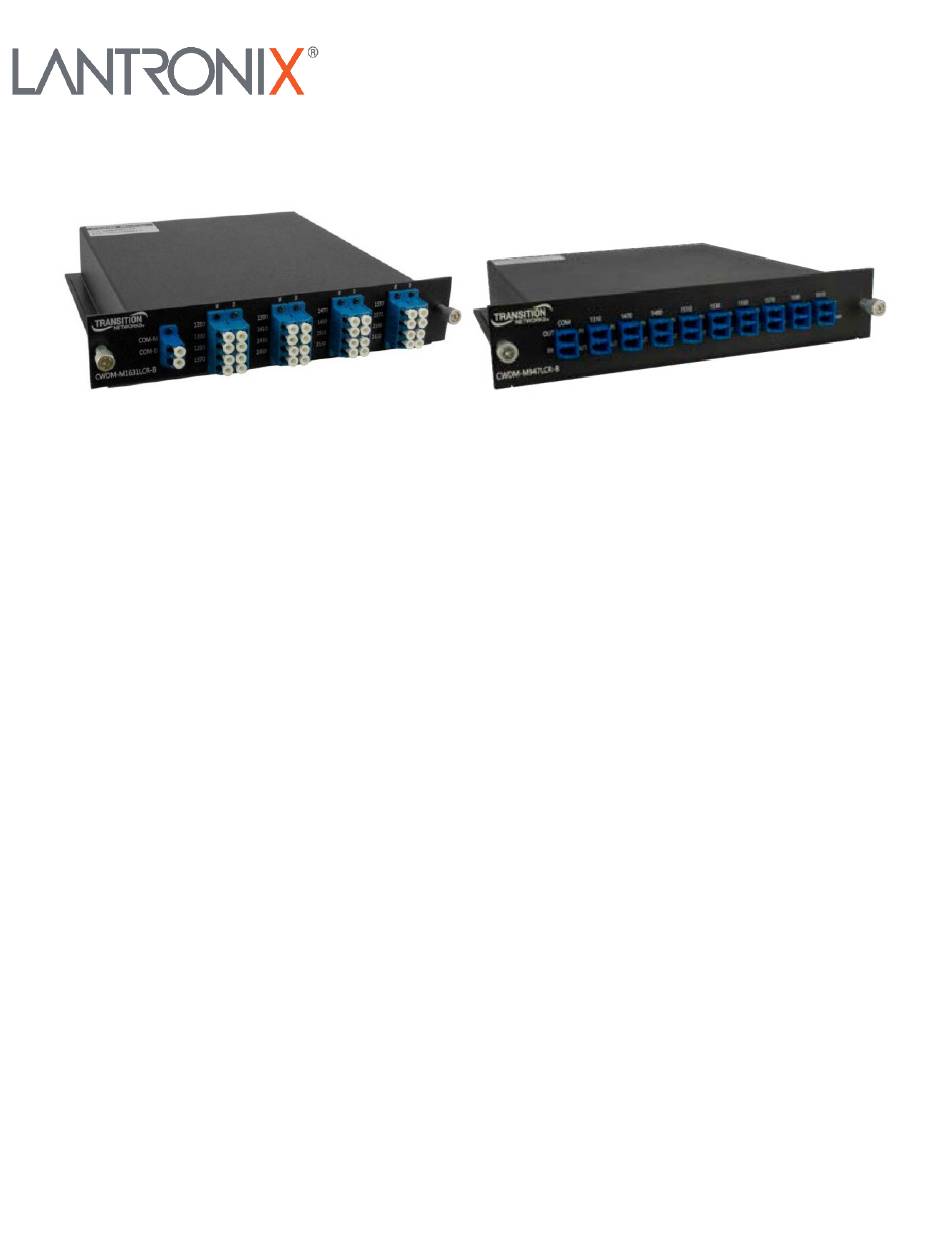

- Page 1 CWDM-xxxxxCR-B Mux/Demux and Optical Add/Drop Multiplexer Modules User Guide Part Number 33794 Revision B November 2021 33794 Rev. B https://www.lantronix.com/ Page 1 of 19...
- Page 2 CWDM-xxxxxCR-B Mux/Demux User Guide Intellectual Property © 2021 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Table Of Contents
Lantronix CWDM-xxxxxCR Mux/Demux User Guide Table of Contents Product Description ................................. 4 Ordering Information ................................4 Optional Accessories (Sold Separately) ..........................5 Product Views ..................................5 Connections .................................... 6 Application Examples ................................6 CWDM-Add-Drop Mux Example: ............................7 CWDM-Mux-Demux Example: ............................8 CWDM Add/Drop Mux Connections............................ -
Page 4: Product Description
Lantronix CWDM products use a passive technology that allows for any protocol to be transported over the fiber link, as long as it is at a specific wavelength. Lantronix CWDM Mux/Demux and Add/Drop Mux can provide a simple and affordable method to maximize existing fiber capacity with little or no increased cost. -
Page 5: Optional Accessories (Sold Separately)
Optional Accessories ( Sold Separately Model Description CWDM-MB19R2 19” Rack Mount chassis, 1RU High, holds 2 CWDM Modules Lantronix offers a full line of small form factor pluggable (SFP) modules. SFP Modules See our SFP product webpage for more information. Features •... -
Page 6: Connections

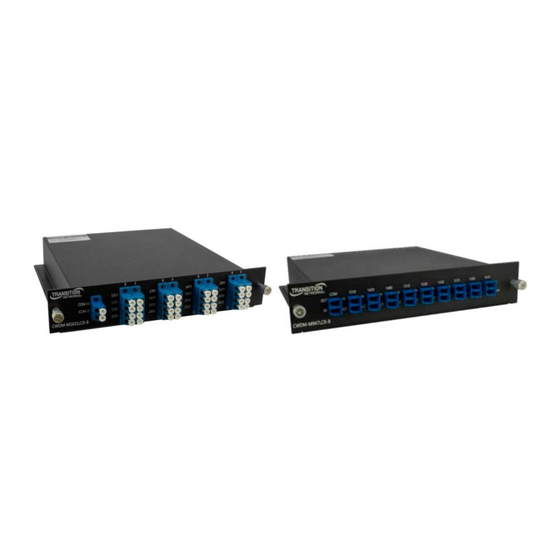

Lantronix CWDM-xxxxxCR-B Mux/Demux User Guide Connections CWDM-xxxxxCR-B Mux/Demux Optical Add/Drop Multiplexer Modules Figure 1: CWDM-xxxxxCR-B Mux/Demux and Optical Add/Drop Multiplexer Modules Application Examples The figure below shows an existing copper switch at a Central Office or Point-of-Presence (POP) converting the electrical signal to the appropriate optical wavelength. -
Page 7: Cwdm-Add-Drop Mux Example
Lantronix CWDM-xxxxxCR Mux/Demux User Guide CWDM-Add-Drop Mux Example: 33794 Rev. B https://www.lantronix.com/ Page 7 of 19... -
Page 8: Cwdm-Mux-Demux Example
Lantronix CWDM-xxxxxCR-B Mux/Demux User Guide CWDM-Mux-Demux Example: CWDM Add/Drop Mux Connections The figure below shows Lantronix CWDM Mux/Demux & Add/Drop Mux modules. In the figure, λ1 indicates Lambda 1 (for one particular wavelength). 33794 Rev. B https://www.lantronix.com/ Page 8 of 19... -
Page 9: Unpacking
Lantronix CWDM-xxxxxCR Mux/Demux User Guide Unpacking Carefully unpack the CWDM-xxxxxCR-B. Verify that you have received: • One CWDM-xxxxxCR-B • One Documentation Postcard One printed Quick Start Guide, 33793 • Please save the packaging for possible future use. Installation Safety Instructions for Rack Mount Installations The instructions below (or similar) are intended for rackmount installation environments: 1. - Page 10 Lantronix CWDM-xxxxxCR-B Mux/Demux User Guide Rack Mount Install Procedure The CWDM modules install into the optional CWDM-MB19R2 Rack Mount chassis for installation in a free-standing rack. To install the bracket and CWDM module into a rack, do the following: 1. Locate the CWDM module and bracket. See Figure 3.
- Page 11 Lantronix CWDM-xxxxxCR Mux/Demux User Guide 5. Secure the CWDM module to the bracket, as shown in Figure 6. Figure 6: CWDM Module Installation into Bracket 33794 Rev. B https://www.lantronix.com/ Page 11 of 19...
-
Page 12: Front Panels
Lantronix CWDM-xxxxxCR-B Mux/Demux User Guide Front Panels Add/Drop Mux Front Panel The Add/Drop Mux Front Panel is shown in Figure 7. Figure 7: Add/Drop Mux Front Panel CWDM Mux Front Panels The CWDM modules have no LEDs as it does not require power. The front panels are shown in Figures 8a, 8b, and 8c. -
Page 13: Fiber Cable Handling & Installation
Lantronix CWDM-xxxxxCR Mux/Demux User Guide Fiber Cable Handling & Installation Handling Fiber Cables Accurate and repeatable data transmissions require clean fiber-optic connections; therefore, inspect the ends of all connectors for dust or imperfections. To achieve the best possible performance, follow these guidelines: •... -
Page 14: Theory Of Operation
See Figure 11. Figure 11: Coarse Wave Division Multiplexing Lantronix CWDM devices utilize thin-film filter technology. Since the CWDM devices are entirely passive, they can be used in conjunction with lower-cost, noncooled laser sources. These CWDM devices are available in two main configurations: Multiplexer/Demultiplexer (Mux/Demux) modules, and Optical Add/Drop Multiplexer (OADM) modules. -
Page 15: Optical Add/Drop Multiplexer (Oadm)
Figure 12: Add/Drop Module CWDM Wavelength-specific Optical Transceivers Lantronix full line of media converters and switches can incorporate CWDM wavelengths with the addition of wavelength-specific small form-factor pluggable (SFP) optical transceivers or traditional fixed optical ports. CWDM SFPs comply with ITU-T G.694.2 CWDM... -
Page 16: Technical Specifications
Lantronix CWDM-xxxxxCR-B Mux/Demux User Guide Technical Specifications Add/Drop Mux Specifications Channel Wavelength ITU & ITU+1 (1260-1620nm) Center Wavelength Accuracy +-0.5 (nm) Channel Spacing 20 (nm) Channel Passband bandwidth (nm) +-6.5 (nm) Channel Ripple 0.3dB Isolation Adjacent > 30dB Non-Adjacent > 40dB Insertion Loss Temperature Sensitivity <= 0.005dB/°C... - Page 17 Lantronix CWDM-xxxxxCR Mux/Demux User Guide CWDM-M947LCR-B Specifications Channel Wavelength ITU & ITU+1 (nm) Center Wavelength Accuracy +-0.5 (nm) Channel Spacing 20 (nm) Channel Passband bandwidth (nm) +-6.5 (nm) Insertion Loss with connector <= 2.5dB Channel Ripple 0.3dB Isolation Adjacent > 30dB Non-Adjacent >...
-
Page 18: Troubleshooting
Lantronix CWDM-xxxxxCR-B Mux/Demux User Guide Troubleshooting 1. Make sure the fiber connectors are clean; see the FOA.org termination cleaning webpage. 2. Make sure your model supports the feature or function attempted; see Ordering Information on page 4. 3. Verify the install process; see Installation on page 9. - Page 19 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: http://www.transition.com/support. Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33794 Rev. B https://www.lantronix.com/ Page 19 of 19...
