Satel ASW-100 E Manual

The ASW100 E and ASW-100 F 230V AC wireless controllers are designed to work
together with the ACU-100 wireless system controller. They are supported by the
ACU-100 controller with firmware version 1.05 or later. They make it possible to
remotely switch ON/OFF devices to be connected to 230V AC sockets. The letter at
the end of their designation corresponds to the type of controller socket: type E
(EURO) in the ASW100 E controller, type F (SCHUKO) in the ASW100 F controller.
The 230V AC wireless controller takes up one position on the list of wireless devices
which can be operated by the ACU-100 controller. It is supplied with 230V voltage.

1. Description of the controller

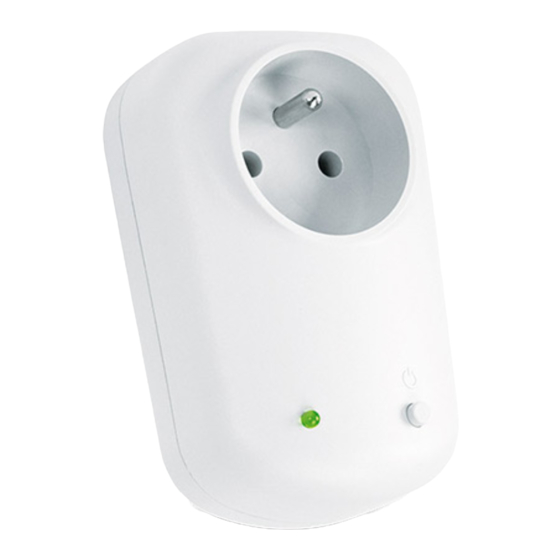

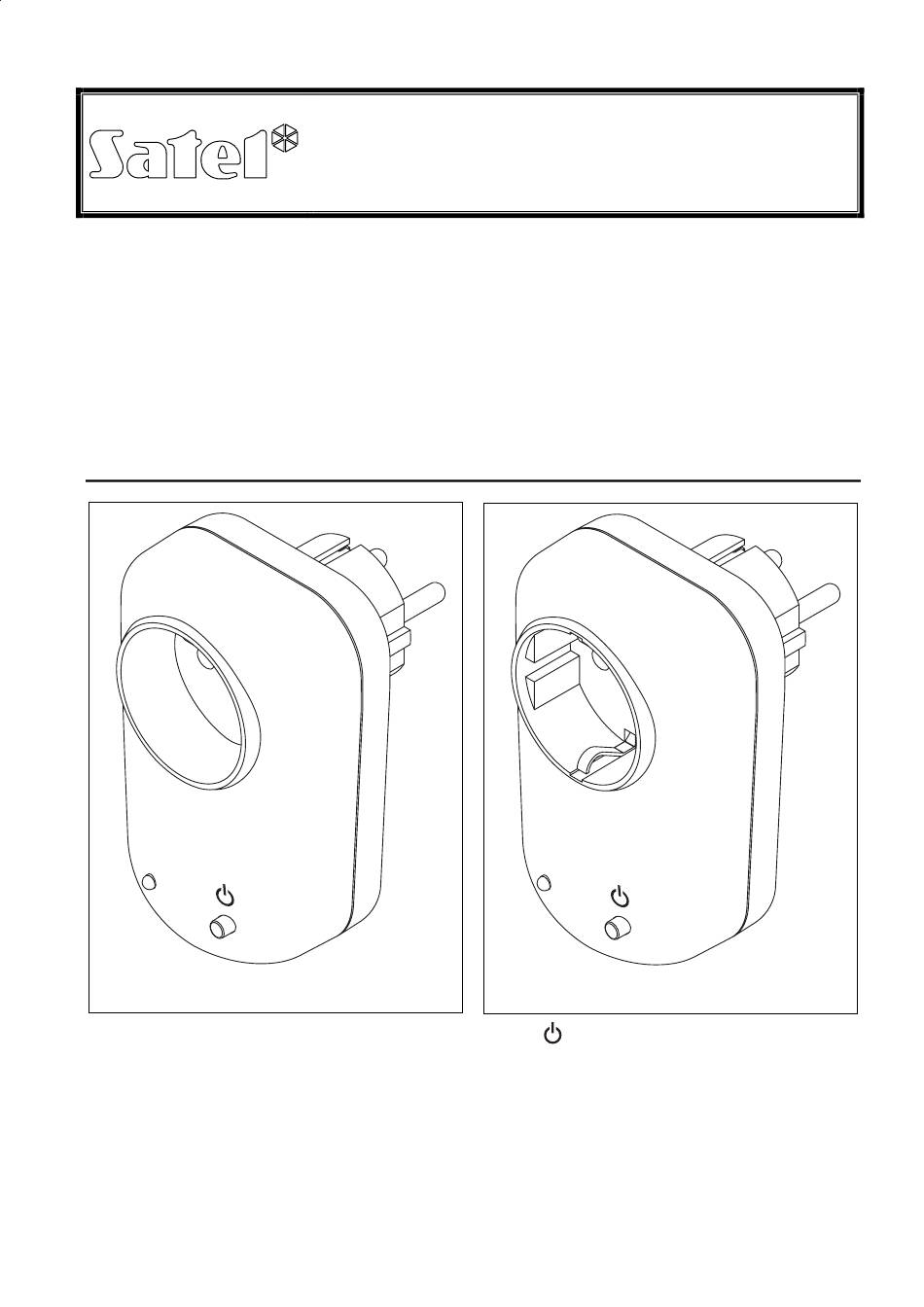

Fig. 1. View of ASW-100 E controller
Operation mode of the button designated by the
controller configuration (refer to the ACU-100 controller user manual):
mode 0 - the button enables no manual control of the electric circuit – pressing the
button will have no effect on the 230V electric circuit, but information on the
button status will be transmitted to the controller and, through the controller,
to the alarm control panel. With the control panel zone suitably
programmed, the button can be used to perform various tasks.
230V AC WIRELESS CONTROLLER
®
ASW-100 E
ASW-100 F
Fig. 2. View of ASW-100 F controller
symbol depends on the current
asw100_en 08/08
