ENGLISH - Quick Start Guide
1

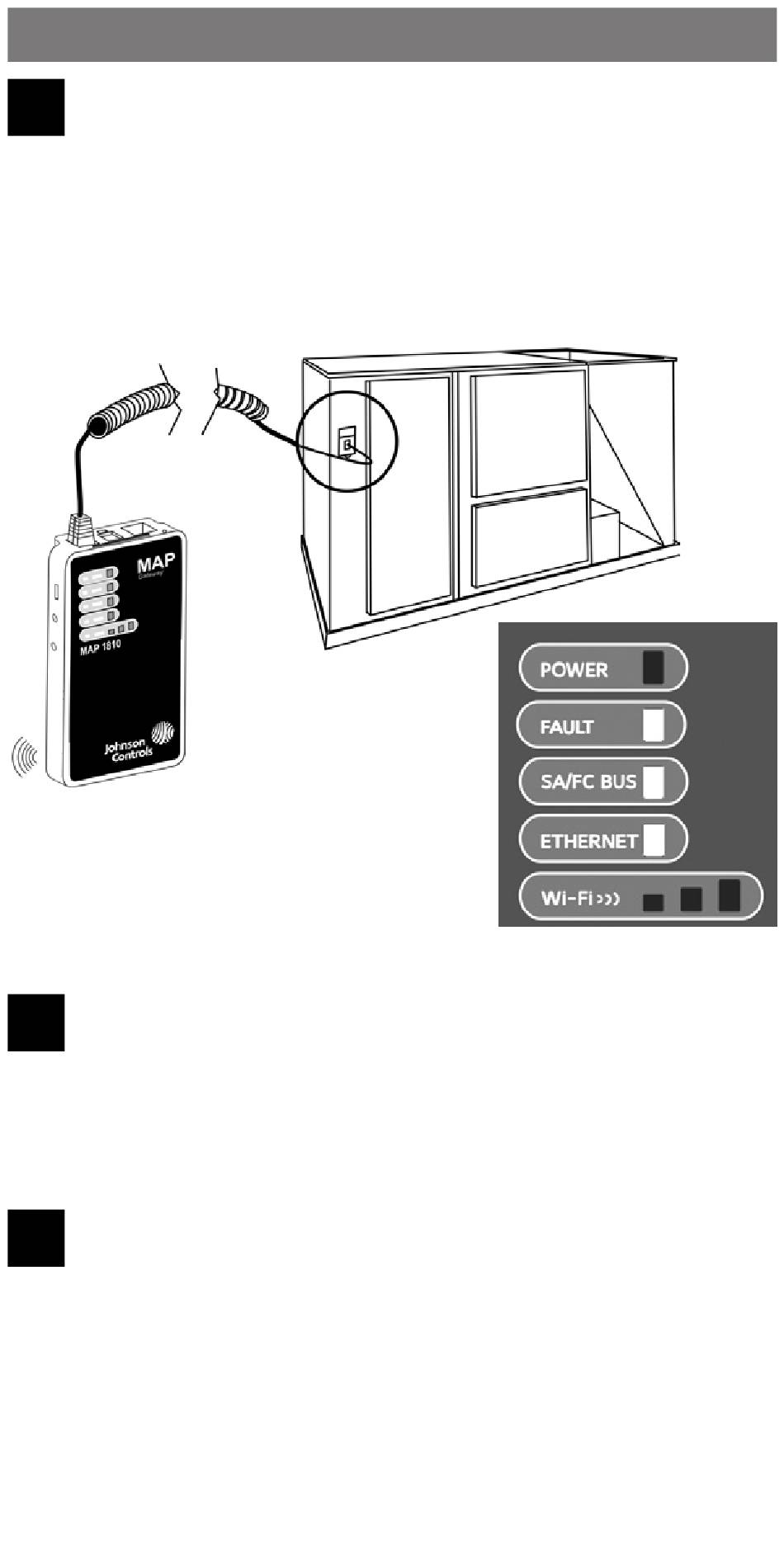

Connect the MAP Gateway to Equipment

If you are going to use the MAP Gateway on Ethernet,
you must plug it into external power before you attach
the field bus adapter. Use the supplied RJ-12 cable
or field bus adapter to connect the RS-485 port of the
MAP Gateway to the sensor bus or field bus port of the
equipment controller.
The MAP Gateway LEDs flash,
indicating that the device is
initializing. When the Fault LED
turns off and the Wi-Fi LEDs flash
in succession, the MAP Gateway is ready to use.
2
Connect to the MAP Gateway
Wi-Fi Network
In the Wi-Fi settings of your mobile device or laptop,
connect to the MAP Gateway Wi-Fi network using your
credentials.
3
Open a Web Browser
Direct your browser to www.mapgwy.com to open the
MAP Gateway browser interface.
MAP Gateway ships with a private mapgwy.com SSL
certificate installed to ensure secure communication
with the MAP Gateway. However, this certificate does
not indicate that it is trusted in a browser. If you wish to
install your own certificate, refer to Installing a Security
Certificate on a Client That is Connecting to MAP
