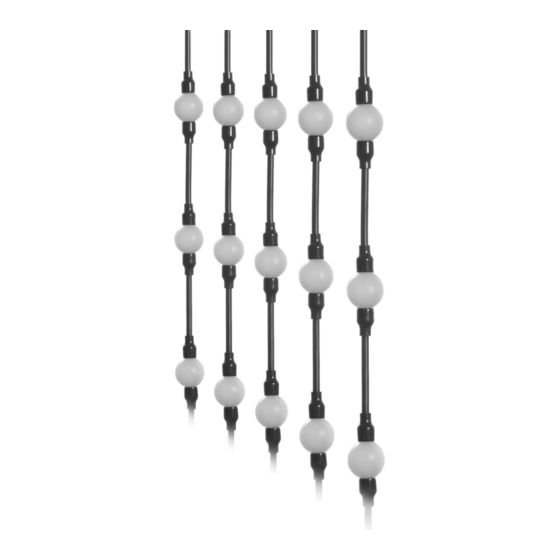

Summary of Contents for SGM LB-100

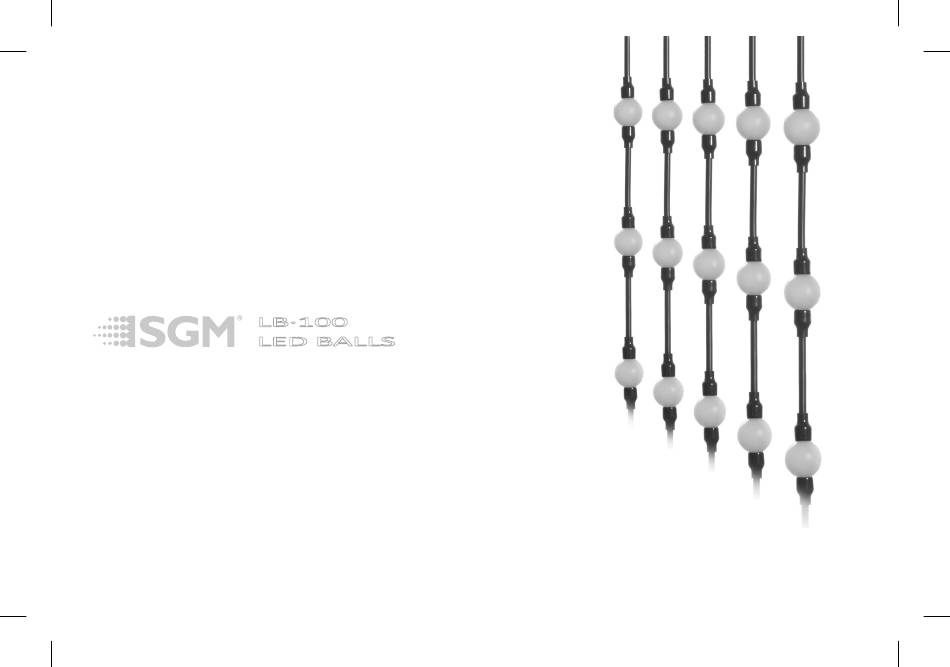

- Page 1 LB·100 LED BALLS Manual_LED Ball_UK_170x113,3.indd 1 30/04/12 12.24...
- Page 2 Dimensions of LB-100 LED Balls All dimensions in mm. Drawing not to scale. Manual_LED Ball_UK_170x113,3.indd 2 30/04/12 12.24...
- Page 3 The SGM logo, the SGM name and all other trademarks in this document pertaining to services or products by SGM or its affiliates and subsidiaries are trademarks owned or licensed by SGM or its affiliates or subsidiaries.
-
Page 4: Table Of Contents
Read the Manual..............................6 Protection from Injury............................6 Introduction..........................7 Parts Identification and Terminology........................7 Features..............................8 Connections Overview............................9 Connecting to SGM Touring LED Driver TLD-612 or TLD-312...............10 Using custom power supply and SGM adaptor cable..................11 Service......................12 Cleaning..............................12 Troubleshooting......................13 Specifications: LB-100 (Part # 80080001)................14 Users notes........................16 Manual_LED Ball_UK_170x113,3.indd 4... -
Page 5: Safety Information
• Verify that the power feed cable is rated for the current draw of all connected fixtures. See application informa- tion on page 11. • Do not modify the fixture or install other than genuine SGM parts. • Do not operate the system if the ambient air temperature (Ta) exceeds 40 ˚C (104 ˚F) Manual_LED Ball_UK_170x113,3.indd 5... -
Page 6: Read The Manual
Read this manual before installing or powering the LED Balls, and follow the safety precautions. Always observe all warnings in this manual and printed on the system. If you have questions about how to oper- ate the system safely, please contact your SGM representative. Protection from injury •... -
Page 7: Introduction
Introduction Parts identification and terminology See Fig. 1 for part terminology and identification. A. One string LED Balls (7 LED balls) B. One row of LED Balls consisting of 1 to 8 strings (Max. 56 LED balls). Fig. 1 Manual_LED Ball_UK_170x113,3.indd 7 30/04/12 12.24... -
Page 8: Features
Features The SGM LED Balls form a modular semi-transparent LED video curtain with a 12cm pixel pitch, which can be viewed in a 360° angle. One LED Ball driver is capable of producing a seamless image of 6.6 meters vertically and for as long in the horizontal direction as the number of drivers permit (Fig.2). -
Page 9: Connections Overview
Connections Overview The LED ball string has a female 4 pin RJ765 connector at the inlet (before ball 1), and a male 4 pin RJ765 con- nector at the outlet (after ball 7). Fig. 3 shows the pin layout. 4 pin female RJ765 connector Connector front shown Fig. -
Page 10: Connecting To Sgm Touring Led Driver Tld-612 Or Tld-312
Connecting to SGM Touring LED Driver TLD-612 or TLD-312 TLD-612 TLD-312 (Part #: 80070201) (Part #: 80070202) Manual_LED Ball_UK_170x113,3.indd 10 30/04/12 12.24... -
Page 11: Using Custom Power Supply And Sgm Adaptor Cable
Using Custom power supply and SGM adaptor cable When extending the supply cable between the adaptor (Part #: 83060201) and a user specified 12VDC PSU, make sure to use cables according to specifications in the table below. When using a 12V DC custom power supply, it must be protected with a T12.5A fuse. -
Page 12: Service
This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your SGM dealer for a suitable maintenance schedule. Clean the LED Balls with a soft cloth dampened with a solution of water and a mild detergent such as car shampoo. -
Page 13: Troubleshooting
Troubleshooting Problem Probable cause(s) Remedy No DMX signal is Replace DMX source received from source Check addresses and protocol settings No light in Defective DMX source Replace DMX source one LED ball Incorrect addressing Check addresses and protocol settings Defective LED Replace LED string Replace DMX source Defective DMX source... -
Page 14: Specifications: Lb-100 (Part # 80080001)
Specifications LB-100 (Part #: 80080001) BALL DIMENSIONS Diameter...............................28mm Pixel pitch................................12cm 7 balls string length (Balls CC)..........................72cm Ball / Pixel weight..............................20g INSTALLATION Orientation............................Any AMBIENT OPERATING CONDITIONS Maximum ambient temperature (T )....................40 °C (104 °F) Minimum ambient temperature (T )....................-10 °C (14 °F) Operating humidity..............................100%... - Page 15 Power consumption per LB-100 (7 pixels)......................5.4W APPROVALS Safety................................EN 60950-1 EMC.............................EN 55103-1, EN 55103-2 INCLUDED PARTS • LED Balls string, LB-100 (Part #: 80080001) • User manual ACCESSORIES IC-1, Power adaptor cable.......................Part #: 830060201 Specifications subject to change without notice Manual_LED Ball_UK_170x113,3.indd 15...
-
Page 16: Users Notes
Users notes Manual_LED Ball_UK_170x113,3.indd 16 30/04/12 12.24... - Page 17 Manual_LED Ball_UK_170x113,3.indd 17 30/04/12 12.24...
- Page 18 Manual_LED Ball_UK_170x113,3.indd 18 30/04/12 12.24...
- Page 19 Manual_LED Ball_UK_170x113,3.indd 19 30/04/12 12.24...
- Page 20 SGM A/S · Soeren Frichs Vej 51-53 · DK 8230 Aabyhoej · Denmark Tel +45 70 20 74 00 · info@sgmlight.com · www.sgmlight.com Manual_LED Ball_UK_170x113,3.indd 20 30/04/12 12.24...
