Summary of Contents for SGM Q-7

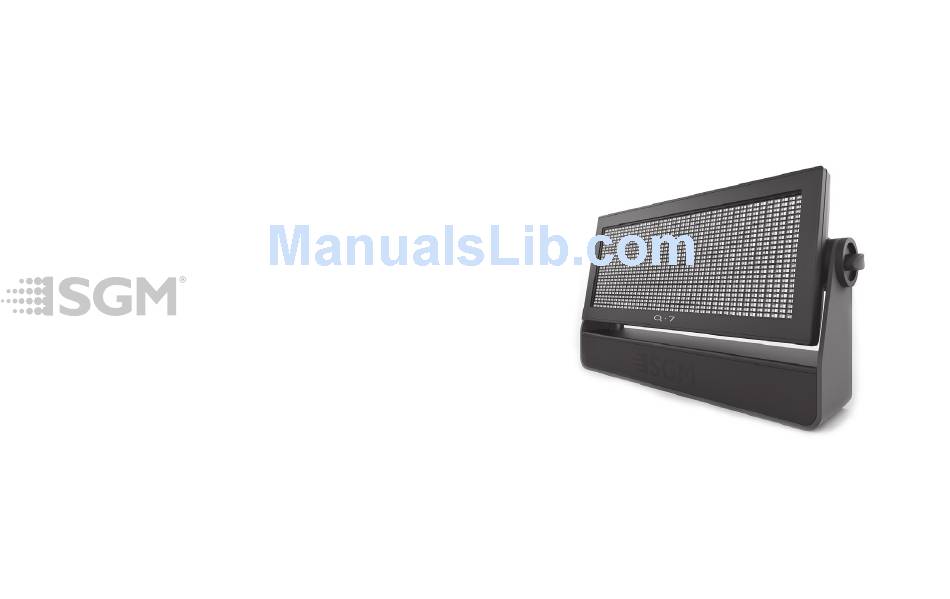

  • Page 1 Q-7 WHITE...

  • Page 2: Dimensions

    Q-7 Series dimensions 437 (17.2 in.) (4.8 in.) 90° 90° (12.3 in.) (10.6 in.) (8.3 in.) (3.5 in.) 456 (17.9 in.) 497 (19.6 in.) (7.3 in.) 300 (11.8 in.) (6.1 in.) (7.3 in.) Measurements in millimetres and inches (in brackets).
  • Page 3 The SGM logo, the SGM name and all other trademarks in this document pertaining to services or products by SGM or its affiliates and subsidiaries are trademarks owned or licensed by SGM or its affiliates or subsidiaries.

  • Page 4: Table Of Contents

    Dimensions ........................2 Safety information ......................6 Overview ........................9 Preparing for installation ..................... 10 Installing the Q-7 ......................11 Connecting AC power ....................13 Configuring the device ....................14 Setting a static color manually ..................15 Using stand-alone operation ..................16 Connecting to a DMX control device ................
  • Page 5 Control menu .......................26 Specifications ......................32 User’s notes .........................37...

  • Page 6: Safety Information

    Read the safety precautions in this section before unpacking, installing, powering or operating this product. The Q-7/Q-7W is intended for professional use only. It is not suitable for household use. Impropre a l’usage domestique. Review the following safety precautions carefully before installing or operating the device.
  • Page 7 WARNING! Take measures to prevent burns and fire. • Install in a location that prevents accidental contact with the device. • Install only in a well-ventilated space • Install at least 0.3 m (12 in.) away from objects to be illuminated. •...
  • Page 8 WARNING! Take measures to prevent personal injury. • Do not look directly at the light source from close range. • Take precautions to prevent injury due to falls when working at height. • For permanent installation, ensure that the device is securely fastened to a load-bearing surface with suitable corrosion-resistent hardware.

  • Page 9: Overview

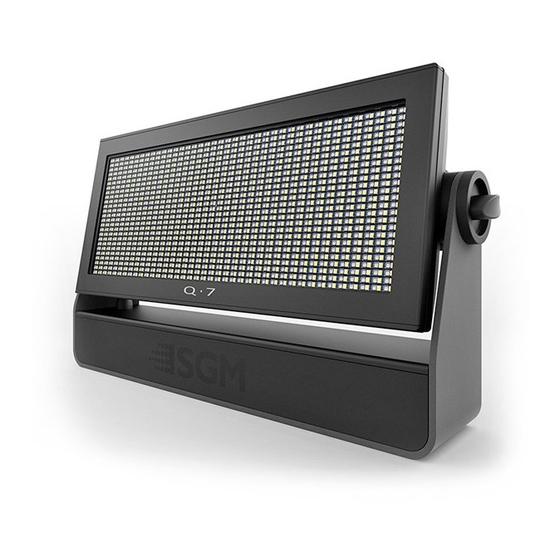

    Overview The Q-7 is a low-profile, compact IP65-rated*, full-color LED wash light, incorporating 1,000 RGB + 1,000 White LEDs. The Q-7 W is a low-profile, compact IP65-rated* cool white flood light incorporating 1,000 cool white LEDs. Both fixtures offer built-in wireless DMX support, stand-alone programs, dimming, RGB color mixing (Q-7), color temperature control, a (half-peak) spread angle of 110°...

  • Page 10: Preparing For Installation

    Unpack the device and inspect it to ensure that it has not been damaged during transport. The Q-7 series is shipped with two quarter-turn brackets, that can be used to mount the device at elevation, and a W- G4 wireless antenna.

  • Page 11: Installing The Q-7

    Under normal operation the moisture will evaporate. However, in locations with high rainfall, 300 (11.8 in.) you may wish to fabricate a rain shield above the device, or modify the Q-7’s position and orientation to minimize pooling. (6.1 in.) Ø8...
  • Page 12 Two quarter-turn brackets are supplied with the device if it is to be flown above the ground. Remove the floor stand/base and rig the Q-7 to a support truss or structure using the supplied brackets and suitable clamps. Fasten a safety cable (not shown) between the support structure and the attachment point on the device.

  • Page 13: Connecting Ac Power

    Connecting AC power The Q-7 can operate on any 208–250 V, 50/60 Hz AC mains power supply. It draws approximately 2 amps at full power. For permanent installation, have a qualified electrician wire the mains cable directly to a suitable branch circuit.

  • Page 14: Configuring The Device

    Configuring the device using an Android smartphone via RFID Q-7 devices can also be configured wirelessly, via RFID, using the SGM Tool app installed on an Android smartphone that has NFC support (ISO 15693 and ISO 18000-3 mode 1 compatible, operating on 13.56 MHz ±7k Hz carrier...

  • Page 15: Setting A Static Color Manually

    Setting a static color manually The device can be configured to display a predefined and static color (or white color, depending on the Q-7 model) using the “Manual→Quick color” menus (see “Control menu” on page 26). Note that whenever the “Manual→Quick color” settings are changed, the fixture will be set by default to automatically start in quick color mode whenever it is powered on.

  • Page 16: Using Stand-Alone Operation

    Using stand-alone operation Stand-alone operation is where the fixture is not connected to a control device, but is preprogrammed with a series of up to 24 scenes, that play continuously in a loop. Up to three stand-alone programs can be defined and run from the menus, and one of the programs can be set to run by default whenever the fixture is started.

  • Page 17: Connecting To A Dmx Control Device

    Connecting to a DMX control device The device is controllable using a DMX control device and it can be connected using either DMX cable or via the Q-7’s built-in wireless W-DMX G4 receiver system. If using a cabled DMX system, connect the DMX in cable (with male 5-pin XLR plug) and out cable (with female 5-pin XLR plug) to the DMX data link.

  • Page 18: Configuring The Device For Dmx Control

    The first channel used to receive data from a DMX control device is known as the DMX start address. Each Q-7 must have a DMX start address set. For example, if a Q-7 has a DMX address of 10 and it is in 4-channel DMX mode, then it uses channels 10, 11, 12 and 13.
  • Page 19 Setting the DMX mode Using the “DMX mode” menu available from the control panel, specify the DMX mode that provides the device controls that you require: DMX mode Function Individual control of color channels for red, green, blue & white (RGBW). RGBW, Shutter and Intensity.

  • Page 20: Device Personality Settings

    100%. Linear control provides uniform adjustment throughout the control action, whereas gamma corrected dimming provides finer control at low light levels, where the eye is more sensitive to change. By default, the Q-7 uses gamma corrected dimming. For uniform response, set all devices to the same dimming curve. To set the desired dimming curve, use the “Settings→Dimming curve”...

  • Page 21: Service

    If in doubt, consult your SGM dealer for a suitable maintenance schedule. Clean the Q-7 using a soft cloth dampened with a solution of water and a mild detergent. Do not use products that contain solvents, abrasives or caustic agents for cleaning, as they can cause damage to both hardware, cables and connectors.

  • Page 22: Dmx Protocols

    DMX protocols Configuring DMX is described in “Setting the DMX mode” on page 19. This section contains “Q-7 DMX protocols” (below), and “Q-7 W DMX protocols” on page 24. Q-7 DMX protocols Q-7 - 4 channel mode Default DMX Fader...
  • Page 23 Q-7 - 6 channel mode Default Fader Channel Name DMX value Description Info DMX value type Closed Open Strobe Fast -> Slow SHUTTER Pulse - Open Slow -> Fast Snap Pulse - Close Slow -> Fast Strobe - Random Slow -> Fast...
  • Page 24 Q-7 W DMX protocols Q-7 W - 4 channel mode Default DMX Fader Channel Name DMX value Description Info value type Panel 1 No LIGHT -> Maximum LIGHT Fade Panel 2 No LIGHT -> Maximum LIGHT Fade Panel 3 No LIGHT -> Maximum LIGHT...
  • Page 25 Q-7 W - 6 channel mode Default Fader Channel Name DMX value Description Info DMX value type Closed Open Strobe Fast -> Slow SHUTTER Pulse - Open Slow -> Fast Snap Pulse - Close Slow -> Fast Strobe - Random Fast ->...

  • Page 26: Control Menu

    Displays the fixture product type. Firmware Version Displays installed software version number. Serial number Displays the fixture serial number. RDM ID Displays the fixture RDM ID (for use with the SGM Tool app). DMX View Displays received DMX levels. Temperatures Mainboard Displays temperature on main circuit board.
  • Page 27 Level 1 Level 2 Level 3 Level 4 Settings Wireless DMX Enable Enables wireless DMX operation. (cont.) (cont.) Disable Disables wireless DMX operation. Startup mode Default operating mode when fixture is powered on: Select startup 1. Quick color mode 2. Stand-alone 3.
  • Page 28 Level 1 Level 2 Level 3 Level 4 Settings Minimum values Adjust default minimum setting (0-1000). Min. red (Q-7) (cont.) Min. green (Q-7) Min. blue (Q-7) Min. white (Q-7) Min. panel 1 (Q-7W) Min. panel 2 (Q-7W) Min. panel 3 (Q-7W) Min.
  • Page 29 Level 3 Level 4 Static quick color – red mix (0-255). Sets fixture to Manual Quick color Red (Q-7) quick color startup mode. Static quick color – green mix (0-255). Sets fixture to Green (Q-7) quick color startup mode. Static quick color – blue mix (0-255). Sets fixture to Blue (Q-7) quick color startup mode.
  • Page 30 Program Currently selected program (1, 2 or 3). (cont.) Scene Currently selected scene (1-24). Red (Q-7) Red value in currently selected scene (0-255). Green (Q-7) Green value in currently selected scene (0-255). Blue (Q-7) Blue value in currently selected scene (0-255).
  • Page 31 Level 1 Level 2 Level 3 Level 4 Manual Editor Shutter 176-199 Pulse Close (cont.) (cont.) (cont.) 200-244 Variable Random Strobe 245-255 Shutter Open Test Stops test sequence execution. Automated test Initiates a self-test sequence. Burn In test 30 min. Service use only.

  • Page 32: Specifications

    Lens ..............................Tempered glass front IP class ..................................IP65 OPTICS Light source Q-7 ..................-1,000 x RGB +1,000 x W (5,700K) SMD LEDs Light source Q-7W......................1,000 x W (5,700K) SMD LEDs LEDs expected lifetime ........................... 50,000 hours Beam angle................................. 110° fixed INSTALLATION Orientation ..................................
  • Page 33 OPERATING CONDITIONS Temperature range, operating .................... -10°C to 40°C (14°F to 104°F) Temperature range, start-up ....................-10°C to 40°C (14°F to 104°F) Humidity (max.)................................98% Cooling....................Active, forced air, temperature-regulated, low noise PROGRAMMING AND CONTROL Protocol..............................USITT DMX512-A Setting and addressing ..........................Wireless DMX Stand-alone mode (programmable by RFID) OLED graphical display/5 buttons Software upgradable via Uploader cable...
  • Page 34 PHOTOMETRIC Light output ..........................28,000 lumen (all LEDs on) 3,100 lumen (red) 6,300 lumen (green) 1,500 lumen (blue) 19,000 lumen (white) Efficacy ................................... 60 lm/W CRI................................... Min. 80 FUSES Main fuse (not user-replaceable) ...........................T5A INCLUDED ITEMS Included items..........................Floor stand (incl. screws) 2 pcs Omega clamps Wireless DMX G4 antenna User manual...
  • Page 35 FIXTURES AND ACCESSORIES Fixtures ......................Order no: 80030524 - Q-7 Color Flood Light Fixtures ..........................Order no: 80030525 - Q-7 White Brackets ......................Order no: 83060603 - BCC-2 dual bracket Brackets ......................Order no: 83060604 - BCC-4 quad bracket Cables..................... Order no: 83062011 - SGM USB uploader cable...
  • Page 36 APPROVALS AND CERTIFICATIONS Conforms to ........................... 2004/108/EC: EMC Directive Conforms to ......................... 2006/95/EC: Low Voltage Directive Conforms to ..........................2011/65/EU: RoHS2 Directive Specifications subject to change without notice...
  • Page 37 User’s notes...
  • Page 40 SGM A /S · Sommer vej 23 · 8210 Aarhus V · Denmark Tel +45 70 20 74 00 · info@sgmlight.com · www.sgmlight.com...
