  • Page 1 Viega Steptec bidet module Instructions for Use Viega Steptec Model Year built: 8467.3 from 03/2009 en_INT...
  • Page 2 Viega Steptec bidet module 2 from 12...
  • Page 3: Table Of Contents

    Areas of use Product description 2.3.1 Overview 2.3.2 Compatible components 2.3.3 Sound protection Handling Assembly information 3.1.1 Mounting conditions 3.1.2 Installation dimensions 3.1.3 Required tools Assembly 3.2.1 Mounting module 3.2.2 Rounding off jobs Disposal Viega Steptec bidet module 3 from 12...
  • Page 4: About These Instructions For Use

    This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.
  • Page 5: About This Translated Version

    German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation. Viega Steptec bidet module 5 from 12...
  • Page 6: Product Information

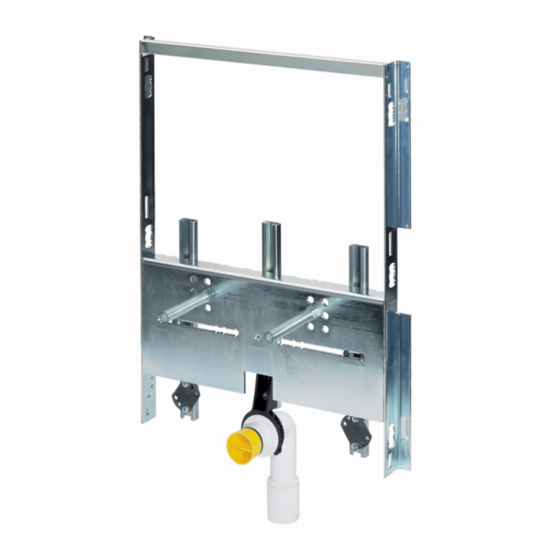

    The Steptec bidet module is suitable for mounting on wall constructions Ä „Regulations from section: pursuant to the regulations in section Fields of application / Mounting conditions“ on page 6 and is intended for use in a Steptec pre-wall construction. Viega Steptec bidet module 6 from 12...
  • Page 7: Product Description

    The bidet module is compatible with common bidet ceramics, even with larger projection (barrier-free). 2.3.3 Sound protection The bidet module complies with the noise insulation requirements Ä „Regulations from section: Sound protection“ specified in section on page 6 . Viega Steptec bidet module 7 from 12...
  • Page 8: Handling

    3.1.1 Mounting conditions Suitable walls The Viega bidet element is suitable for mounting on masonry wall con- structions and support profiles pursuant to the regulations in section Ä „Regulations from section: Fields of application / Mounting condi- tions“ on page 6 .
  • Page 9: Installation Dimensions

    17 mm / 19 mm Assembly 3.2.1 Mounting module Mounting in Steptec The two vertical rails, which surround the module, must be open towards the module and be at an interval of 430 mm. Securing module Viega Steptec bidet module 9 from 12...
  • Page 10 ð The slot nut is secured in the Steptec rail. Align the height of the module. The interval between the middle fixing level for the threaded bolts to the UEFFL is 330 mm. Viega Steptec bidet module 10 from 12...
  • Page 11 Lock the drainpipe in place in the holding device. Insert seal. Set the height of the drainpipe, if required. To do this, loosen the screw above the pipe fixing and set the desired height. Secure with the screw. Viega Steptec bidet module 11 from 12...
  • Page 12: Rounding Off Jobs

    Observe the instruction manual for the cladding panels for more information. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Viega Steptec bidet module 12 from 12...
