Summary of Contents for Black Box JPM804A-R2

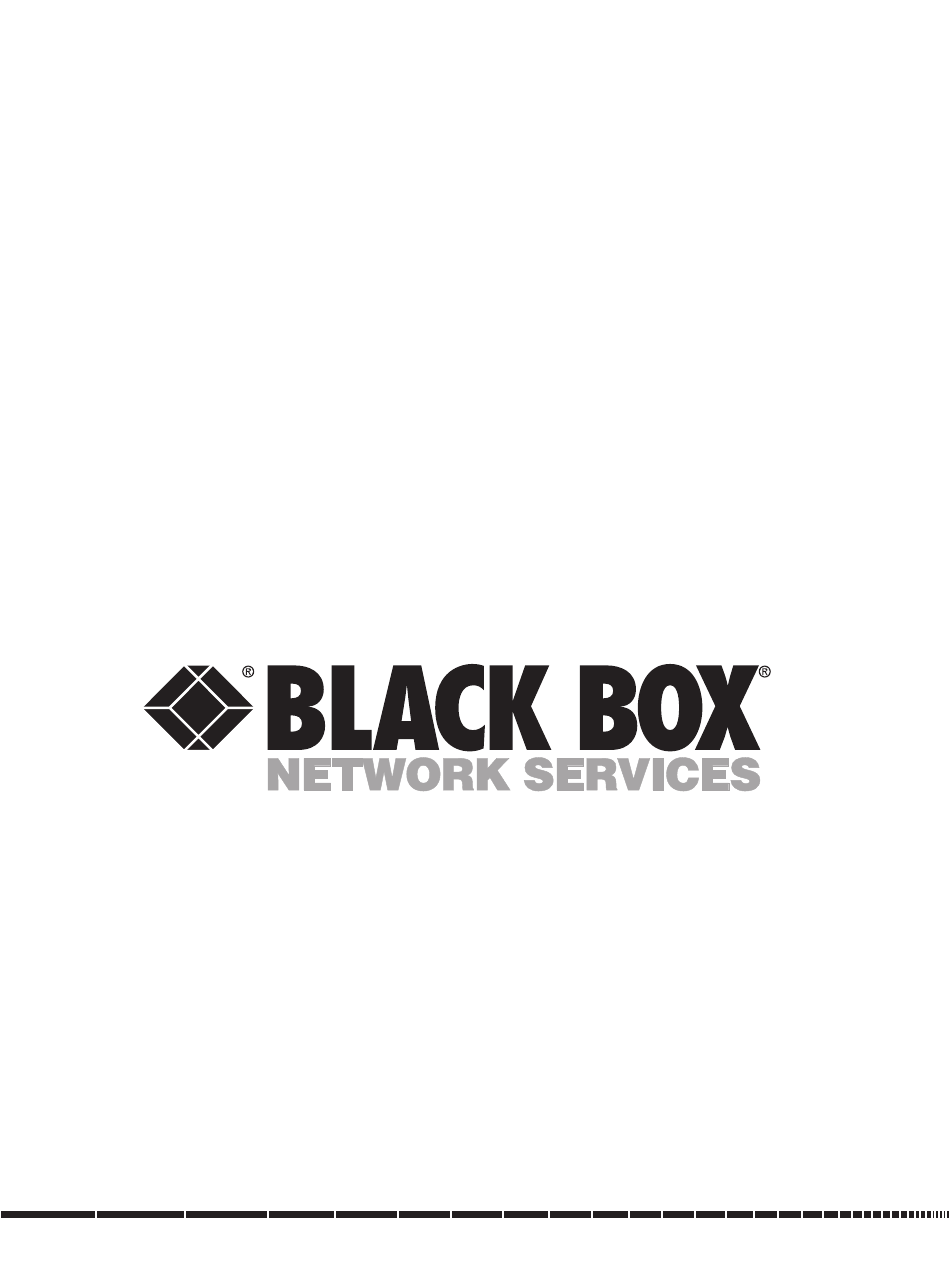

- Page 1 © Copyright 2003. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
- Page 2 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...
-
Page 3: Specifications

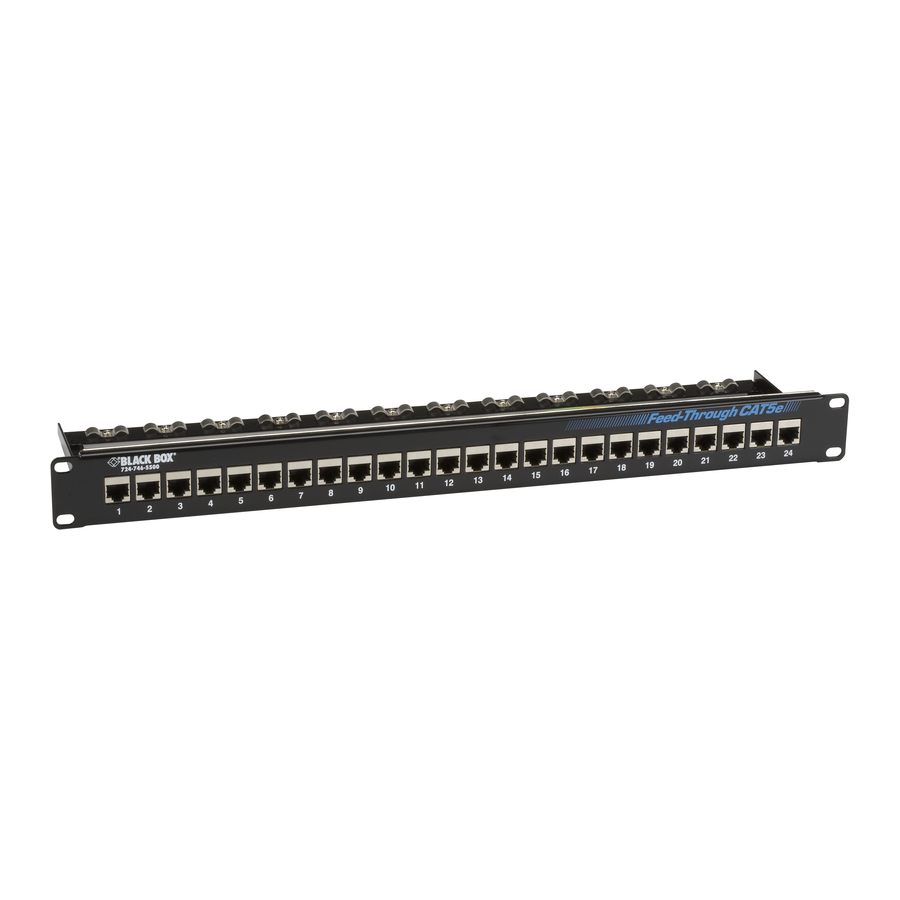

Size: JPM804A-R2, JPM808A-R2: 1.75"H (1U) x 19"W x 4.5"D (4.4 x 48.3 x 11.4 cm); JPM806A-R2, JPM810A-R2: 3.5"H (2U) x 19"W x 4.5"D (8.9 x 48.3 x 11.4 cm) Weight: JPM804A-R2: 1.6 lb. (0.7 kg); JPM806A-R2: 2.9 lb. (1.3 kg); JPM808A-R2: 1.3 lb. (0.6 kg); JPM810A-R2: 2.3 lb. (1 kg) - Page 4 FEED-THROUGH CAT5E PATCH PANELS Installation Use the Feed-Through CAT5e Patch Panels with or without the cable-management bar. It neatly organizes and supports the cables that are installed in rear of the patch panel. Without using the cable-management bar: 1. Find an empty rack space on a relay rack or communications cabinet. 2.
