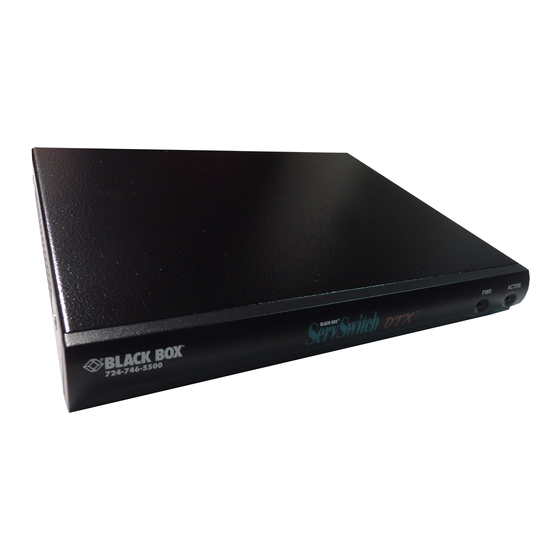

Summary of Contents for Black Box ServSwitch DTX5000-T

  • Page 3: User Guide

    SERVSWITCH DTX5000/5001/5002 USER GUIDE ServSwitch DTX5000/5001/5002 User Guide...
  • Page 4 SERVSWITCH DTX5000/5001/5002 USER GUIDE Instructions This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Dangerous Voltage This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 5 This solution can be deployed as a point-to-point extender system or may be over-laid on the standard 100 Mbps/1 Gbps TCP/IP network. The ServSwitch™ family from BLACK BOX—the one- stop answer for all your KVM switching needs! This manual will tell you all about your new ServSwitch DTX system, including how to install, operate and troubleshoot it.
  • Page 6 SERVSWITCH FAMILY...
  • Page 7 SERVSWITCH FAMILY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a...
  • Page 8 SERVSWITCH FAMILY Japanese Approvals Safety and EMC Approvals and Markings UL, FCC, cUL, VCCI, C-Tick, CE...
  • Page 9 ® BLACK BOX and the logo are registered trademarks, and ServSwitch is a trademark of BLACK BOX Corporation. Mac and Macintosh are registered trademarks of Apple Computer, Inc. PS/2 is a registered trademark of International Business Machines Corporation. Microsoft, HyperTerminal, Windows, Windows NT, and Windows XP are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
  • Page 10 SERVSWITCH FAMILY VIII...

  • Page 11: Table Of Contents

    TABLE OF CONTENTS 1. Specifications....................1 1.1 Factory Default Settings ....................11 2. Product Overview...................13 2.1 Introduction........................13 2.2 Safety Precautions......................18 3. Installation ......................21 3.1 Installing the DTX5000-R user station................21 3.2 Installation options.......................21 3.3 Installing the DTX5001-R and DTX5002-R User Stations.........27 3.4 Mounting option ......................28 3.5 Installation options.......................28 4.
  • Page 12 SERVSWITCH DTX5000/5001/5002 USER GUIDE...

  • Page 13: Specifications

    CHAPTER 1: SPECIFICATIONS 1. Specifications During the course of this product’s lifetime, modifications might be made to its hardware or firmware that could cause these specifications to change without notice. DTX5000-R Product Specifications Network Ethernet Standard Ethernet II IP Port Usage Port 16384 - Video Port 16385 - Audio Port 16386 - Keyboard\Mouse...
  • Page 14 Bulk only transfer protocol Printers Touch screens Pen tablets Mass Storage Devices Smart card readers Digital sign pads Joysticks NOTE: Check with your Black Box representative for the latest list of devices that have been tested and verified on the DTX system.
  • Page 15 CHAPTER 1: SPECIFICATIONS DTX5000-R Product Specifications (Continued) Video Resolution 640 x 350 @ 85 Hz 640 x 480 @ 60 Hz, 72 Hz, 75 Hz, 85 Hz 720 x 400 @ 70 Hz, 85 Hz 800 x 600 @ 60 Hz, 72 Hz, 75 Hz, 85 Hz 1024 x 768 @ 60 Hz, 70 Hz, 75 Hz, 85 Hz 1152 x 864 @ 75 Hz 1280 x 960 @ 60 Hz...
  • Page 16 SERVSWITCH DTX5000/5001/5002 USER GUIDE DTX5000-T Product Specifications Network Ethernet Standard Ethernet II Extension Ports Number Connectors RJ-45 Computer Ports Number USB: 2; DVI-I video: 1; audio microphone: 1; audio line out: 1 Type USB Type A, DVI-I video USB, male; DVI-I, male; 3.5 mm stereo audio jacks, line out Connectors and mic;...
  • Page 17 CHAPTER 1: SPECIFICATIONS DTX5000-T Product Specifications (Continued) Video Resolution 640 x 350 @ 85 Hz 640 x 480 @ 60 Hz 640 x 480 @ 72 Hz 640 x 480 @ 75 Hz 640 x 480 @ 85 Hz 720 x 400 @ 70 Hz 720 x 400 @ 85 Hz 800 x 600 @ 60 Hz 800 x 600 @ 72 Hz...
  • Page 18 SERVSWITCH DTX5000/5001/5002 USER GUIDE DTX5000-T Product Specifications (Continued) Safety and EMC Approvals UL, FCC, cUL, VCCI, C-Tick and Markings DTX5001-R and DTX5002-R Product Specifications Network Ethernet Standard Ethernet II IP Port Usage Port 16384 - Video Port 16388 - Video Port 16385 - Audio Port 16386 - Keyboard\Mouse Port 16387 - vMedia...
  • Page 19 Bulk only transfer protocol Printers Touch screens Pen tablets Mass Storage Devices Smart card readers Digital sign pads Joysticks NOTE: Check with your Black Box representative for the latest list of devices that have been tested and verified on the DTX system.
  • Page 20 SERVSWITCH DTX5000/5001/5002 USER GUIDE DTX5001-R and DTX5002-R Product Specifications (Continued) Video Resolution 640 x 350 @ 85 Hz 640 x 480 @ 60 Hz 640 x 480 @ 72 Hz 640 x 480 @ 75 Hz 640 x 480 @ 85 Hz 720 x 400 @ 70 Hz 720 x 400 @ 85 Hz 720 x 480 @ 60 Hz...
  • Page 21 CHAPTER 1: SPECIFICATIONS DTX5001-T and DTX5002-T Product Specifications Network Ethernet Standard Ethernet II Extension Ports Number Connectors RJ-45 Console Ports USB: 1; DVI-D video: 1; VGA D-Sub 15 HD:1; audio line-out: 1 Number (DTX5001-T) USB: 1; DVI-D video: 2; audio line-out: 1(DTX5002-T) Type USB Type A, DVI-D video USB, male;...
  • Page 22 SERVSWITCH DTX5000/5001/5002 USER GUIDE DTX5001-T and DTX5002-T Product Specifications (Continued) Operating Humidity 10 to 90% noncondensing Storage Humidity 5 to 95% Supported Hardware Video Resolution 640 x 350 @ 85 Hz 640 x 480 @ 60 Hz, 72 Hz, 75 Hz, 85 Hz 720 x 400 @ 70 Hz, 85 Hz 720 x 480 @ 60 Hz 800 x 600 @ 60 Hz, 72 Hz, 75 Hz, 85 Hz...

  • Page 23: Factory Default Settings

    CHAPTER 1: SPECIFICATIONS 1.1 Factory Default Settings Black Box ServSwitch DTX5000 Extender DTX Receiver Name RX_<MAC address> IP Address 192.168.13.1 Default Gateway 0.0.0.0 Netmask 255.255.255.0 OSD Hotkey Sequence PRINT SCREEN OSD Inactivity Timer 00 hours 10 minutes OSD Inactivity Check Box Enabled...
  • Page 24 SERVSWITCH DTX5000/5001/5002 USER GUIDE Black Box ServSwitch DTX5002 Extender DTX Receiver Name RX_<MAC address> IP Address 192.168.13.1 Default Gateway 0.0.0.0 Netmask 255.255.255.0 OSD Hotkey Sequence PRINT SCREEN OSD Inactivity Timer 00 hours 10 minutes OSD Inactivity Check Enabled Session Retry Timeout...

  • Page 25: Product Overview

    Desktop users can access keyboard, mouse, video, audio, USB mass storage devices and other USB devices from remote workstations via the DTX Extender System. NOTE: Check with Black Box Tech Support for vUSB support on DTX5001. NOTE: References to the DTX Extender System in this document refer to both the receiver (DTX5000-R, DTX5001-R or DTX5002-R user stations) and the transmitter.
  • Page 26 SERVSWITCH DTX5000/5001/5002 USER GUIDE USB support NOTE: Check with Black Box Tech Support for vUSB support on DTX5001. USB keyboards, mice, mass storage devices and other types of USB devices are fully supported along with the following: • Any keyboard (up to 109 keys) •...
  • Page 27 CHAPTER 2: PRODUCT OVERVIEW NOTE: The DTX5001-T and DTX5002-T transmitters provide a single USB interface, and uses an integrated hub within the transmitter. Video Video of 24-bit color depth up to a resolution of 1280 x 1024 at 60 Hz is supported by the DTX5000-R user station and DTX5000-T transmitter.
  • Page 28 SERVSWITCH DTX5000/5001/5002 USER GUIDE • Solaris ® • Microsoft Windows Vista ® • Mac OS The default keyboard drivers for these operating systems are supported by the DTX user station. Flexible installation The DTX user station provides you with the following flexible installation features: •...
  • Page 29 CHAPTER 2: PRODUCT OVERVIEW Audio The DTX5000-R user station supports CD-quality stereo from the remote workstation to peripheral speakers, and mono-quality audio from a peripheral microphone to the remote workstation. The DTX5001-R and DTX5002-R user stations support a CD-quality stereo from the remote workstation to peripheral speakers.

  • Page 30: Safety Precautions

    For best results, they should be on the same circuit. To avoid potentially fatal shock hazard and possible damage to equipment, please observe the following precautions: • Do not use a 2-wire extension cord in any BLACK BOX product configuration.
  • Page 31 CHAPTER 2: PRODUCT OVERVIEW • Test AC outlets at the workstation and monitor for proper polarity and grounding. • Use only with grounded outlets at both the workstation and monitor. When using a backup Uninterruptible Power Supply (UPS), power the workstation and the transmitter off the same supply.
  • Page 32 SERVSWITCH DTX5000/5001/5002 USER GUIDE...

  • Page 33: Installation

    The DTX5000-R user station mounts to the rear of a flat panel monitor via a mounting plate accessory. NOTE: Mounting accessories are ordered separately. Contact BLACK BOX for more information. 3.2 Installation options CAUTION: To reduce the risk of electric shock or damage to your equipment, disconnect the power from the DTX5000-R user station by unplugging the power supply from the electrical outlet.
  • Page 34 NOTE: A VGA-only workstation can be connected to the DTX5000-T transmitter using a VGA to DVI-I adaptor (Black Box Part No. FA462). You must configure the DTX5000-T transmitter video settings for VGA through the serial menu.
  • Page 35 CHAPTER 3: INSTALLATION Connect the DTX5000-T transmitter’s audio and microphone connectors to the appropriately labeled ports on the back of the workstation. NOTE: For CD-quality audio, you must configure the DTX5000-T transmitter and the user station using the serial menu. Connect one end of the UTP cable to the DTX5000-T transmitter’s RJ-45 connector and turn on the workstation.
  • Page 36 SERVSWITCH DTX 5000/5001/5002 USER GUIDE Table 3.2 Descriptions of Figure 3.2 (Continued) Number Type of Connector Video To connect the DTX5000-R user station: Connect your keyboard, monitor, mouse and other peripherals cables to the appropri- ately labeled ports on the back of the DTX5000-R user station. Connect the UTP cable to the RJ-45 port on the back of the DTX5000-R user station.

  • Page 37: Connecting Power

    DTX5000-R user station. NOTE: Use only the power supply provided by BLACK BOX. To connect power to the DTX5000-R user station: Plug the external power supply’s 2.5 mm connector into the DC power jack on the rear of the DTX5000-R user station.
  • Page 38 SERVSWITCH DTX 5000/5001/5002 USER GUIDE Figure 3-4. Networked Installation Table 3.4 Descriptions of Figure 3-4 Number Description Remote Workstation DTX5000-T transmitter IP Network DTX5000-R User Station UTP Cable The DTX5000-R user station has been preconfigured with factory-default network settings. If you install only one DTX5000-R user station and one DTX5000-T transmitter on a subnet, you do not need to change these default network settings.

  • Page 39: Installing The Dtx5001-R And Dtx5002-R User Stations

    CHAPTER 3: INSTALLATION Default Network Settings (DTX5000-R User station) Default Component IP Address Type Subnet Mask Gateway DTX5000-R 192.168.13.1 Static 0.0.0.0 255.255.255.0 User station DTX5000-T 192.168.13.2 Static 0.0.0.0 255.255.255.0 transmitter To install the DTX Extender System on a network with the DTX5000-R user station: With the DTX5000-T transmitter already connected to the remote workstation, con- nect it to the LAN via the unit's RJ-45 connector.

  • Page 40: Mounting Option

    3.4 Mounting option The user station mounts to the rear of a flat panel monitor via a mounting plate accessory. NOTE: Mounting accessories are ordered separately. Contact BLACK BOX for more information. 3.5 Installation options CAUTION: To reduce the risk of electric shock or damage to your equipment, disconnect the power from the DTX5001-R or DTX5002-R user station by unplugging the power supply from the electrical outlet.
  • Page 41 CHAPTER 3: INSTALLATION Figure 3-5. Point-to-Point Installation (DTX5002-R and DTX5002-T) Table 3.5 Descriptions of Figure 3-5 Number Description Remote Workstation DTX5002-T transmitter DTX5002-R User station To connect the DTX5001-T or DTX5002-T transmitter: Before connecting the DTX5001-T or DTX5002-T transmitter to the remote workstation, ensure that the resolution and the refresh rate of the remote workstation are supported by the DTX5002-R user station.
  • Page 42 SERVSWITCH DTX 5000/5001/5002 USER GUIDE NOTE: For CD-quality audio, you must configure the transmitter and the user station using the serial menu. Connect one end of the UTP cable to the transmitter’s RJ-45 connector and turn on the workstation. Route the other end of the UTP cable to the location you have chosen for the user station.
  • Page 43 USB Connecting power Both the DTX5001-R and DTX5002-R user station and associated transmitters feature an external power supply. A DC power jack is located on the rear of each. NOTE: Use only the power supply provided by BLACK BOX.
  • Page 44 SERVSWITCH DTX 5000/5001/5002 USER GUIDE To connect power to the user station and transmitter: Plug the external power supply’s 2.5mm connector into the DC power jack on the rear of the user station and transmitter. Connect the detachable IEC power cord to the power supply. Plug the IEC power cord into an appropriate wall outlet.
  • Page 45 CHAPTER 3: INSTALLATION Table 3.8 Descriptions of Figure 3-8 (Continued) Number Description UTP Cable DTX5002-R User station The DTX5001-R and DTX5002-R user stations have been preconfigured with factory- default network settings. If you install only one DTX5002-R user station and one DTX5002-T transmitter on a subnet, you do not need to change these default network settings.
  • Page 46 SERVSWITCH DTX 5000/5001/5002 USER GUIDE Use the serial menu to reconfigure the network settings for the user station. Repeat this procedure for each transmitter and user station pair you wish to install on the network. To install the DTX Extender System on a network in Desktop Mode: Ensure that each transmitter and user station has a unique IP address.

  • Page 47: Operations

    CHAPTER 4: OPERATIONS 4. Operations 4.1 Overview Operating a workstation through the DTX Extender System is no different than working directly connected to your workstation. All peripherals operate as if directly connected, even though the workstation is located at a distance. When you turn on the DTX user station, a connection is automatically established with the workstation.

  • Page 48: Osd Functions

    SERVSWITCH DTX5000/5001/5002 USER GUIDE the progress of the connection. You will be able to interact with the remote workstation as if it were located at your desk. NOTE: If the remote workstation has been turned off, the DTX user station cannot establish a connection. 4.3 OSD functions The DTX user station incorporates an On-Screen Display (OSD) that allows you to view information about the configuration of your system in Matrix Mode or Extender Mode.
  • Page 49 CHAPTER 4: OPERATIONS If the user has access to a list of target PCs, the Target dialog box will appear when the Target tab is selected. The Target dialog box displays a list of target PCs to which the user has access. Figure 4-2.
  • Page 50 SERVSWITCH DTX5000/5001/5002 USER GUIDE To initiate a connection with a remote PC in Matrix Mode: Press Print Screen. Enter the Login Name and Password, ensuring that the appropriate keyboard has been selected. Click the OK button to accept the changes. If the user has access to only one target PC, the login progress message will then appear and a connection will be established.
  • Page 51 CHAPTER 4: OPERATIONS Figure 4-5. Target Screen (Matrix Mode) Select the remote PC to which you wish to connect and click Connect. NOTE: Once a remote PC has been selected, Matrix Mode denies access to any other user. Access through Auto-Login Mode Using the DTX5000-CTL Management Appliance, an administrator can enable Auto- Login Mode.

  • Page 52: The Serial Menu

    SERVSWITCH DTX5000/5001/5002 USER GUIDE To display system information in Extender Mode: Press Print Screen. In Extender Mode, the Information tab displays user informa- tion for your DTX user station by default. Figure 4-6. DTX User station Connected to Transmitter Click the Rcvr radio button to view system information for your DTX user station. -or- Click the Trans radio button to view the system information for your transmitter.
  • Page 53 CHAPTER 4: OPERATIONS Accessing the serial menu You can access the serial menu via the serial port on the back of the DTX user station. All ® terminal commands are executed through a terminal or PC running HyperTerminal emulation software or equivalent. By default, two passwords are required to access the DTX user station via the transmitter.

  • Page 54: Configuring Network Settings

    SERVSWITCH DTX5000/5001/5002 USER GUIDE Confirm the HyperTerminal settings and click OK. Press Enter to display the serial menu. The Appliance Selection Menu will be dis- played. Figure 4-8. Appliance Selection Menu Select the Receiver or Transmitter Menu by pressing 1 or 2 and pressing Enter. You will be prompted to enter a password.
  • Page 55 CHAPTER 4: OPERATIONS Press 2 to access the Transmitter Menu. If the password option is enabled, you will be prompted for a password. Type the password and press Enter. The Transmitter Main Menu will appear. Figure 4-9. Transmitter Main Menu NOTE: The Reset Appliance option in the Transmitter Main Menu applies only to network settings.
  • Page 56 SERVSWITCH DTX5000/5001/5002 USER GUIDE Press 1 to select the Transmitter Network Config option and press Enter. The Trans- mitter Network Configuration Menu will appear. Figure 4-11. Transmitter Network Configuration Menu NOTE: For option 5, the administrator can configure the transmitter IP address as DHCP or Static. Static is the default configuration.
  • Page 57 CHAPTER 4: OPERATIONS Figure 4-12. Receiver Main Menu NOTE: The Network Configuration Menu is different for the Extender and Matrix modes. To access the Network Configuration Menu in Extender Mode: Press 1 to select the Network Configuration option and press Enter. The Network Configuration Menu (Extender Mode) appears.
  • Page 58 SERVSWITCH DTX5000/5001/5002 USER GUIDE Press 2 to select the Transmitter IP Config option and press Enter. The Transmitter IP Config menu will appear. The old Transmitter IP address is displayed beside menu option 1. Figure 4-14. Transmitter Configuration Menu on the DTX User station Press 1 to select the Transmitter IP Address option and press Enter.
  • Page 59 CHAPTER 4: OPERATIONS Figure 4-15. Appliance Mode Menu Press Enter to activate the serial menu. The Appliance Selection Menu displays. Press 1 to access the Receiver menu. If the password option is enabled, you will be prompted for a password. Type the password and press Enter.
  • Page 60 SERVSWITCH DTX5000/5001/5002 USER GUIDE Press Enter. The Receiver Network Configuration Menu will appear. Figure 4-17. Receiver Network Configuration Menu (Extender and Matrix Mode) NOTE: The Receiver Network Configuration Menu is identical in both Extender and Matrix modes. NOTE: The reset option in the Receiver Network Configuration Menu applies only to network settings. Press 1 to select the Receiver IP Address option and press Enter.
  • Page 61 CHAPTER 4: OPERATIONS Press Enter. The Network Speed Menu will appear. Figure 4-18. Network Speed Menu NOTE: The currently selected network speed, Auto-Negotiate, is marked with an asterisk. To access the DTX5000-CTL Management Appliance IP Configuration Menu: Press 6 to select the Appliance Mode option in the Receiver Main Menu. Press Enter.
  • Page 62 SERVSWITCH DTX5000/5001/5002 USER GUIDE Press 2 to select the Management Appliance IP Configuration Menu in the Network Configuration Menu (Matrix Mode) and press Enter. The Management Appliance IP Configuration Menu will appear. Figure 4-19. DTX5000-CTL Management Appliance IP Configuration Menu Detecting a transmitter IP address In the event that you forget the IP address of a transmitter, you can use the serial menu to detect the IP address of a transmitter that is connected to the DTX user station.
  • Page 63 CHAPTER 4: OPERATIONS Type the password and press Enter. The Receiver Main Menu will appear. Figure 4-20. Receiver Main Menu Press 1 to select Network Configuration and press Enter. The Network Configura- tion Menu will appear. Figure 4-21. Network Configuration Menu...

  • Page 64: Authentication

    SERVSWITCH DTX5000/5001/5002 USER GUIDE Press 2 to select Transmitter IP Config and press Enter. The Transmitter IP Config menu will appear. The old Transmitter IP address is displayed beside menu option 1. Figure 4-22. Transmitter IP Configuration Menu on the DTX User station NOTE: This screen is available only in Extender Mode.
  • Page 65 To save your changes and exit the menu, type 0 (zero) and press Enter. To reset your user station password: If you lose your user station password, you can reset the system to the default password with the help of BLACK BOX Technical Support.
  • Page 66 The code is a 16 character hex sequence. The serial menu will also prompt you to enter a Key. Contact BLACK BOX Technical Support to obtain the Key. In the serial menu at the Key prompt, type the new 16 character hex sequence pro- vided by BLACK BOX Technical Support.

  • Page 67: Flash Upgrading Your Dtx Extender System

    To Flash upgrade your transmitter using XMODEM: NOTE: Black Box recommends using HTTP Flash upgrade for faster upgrade times. See “To Flash upgrade your DTX user station using HTTP:” on page 58 Download the transmitter upgrade file from BLACK BOX.
  • Page 68 20 minutes or more per unit. Do not turn off power during upgrade. To Flash upgrade your transmitter using HTTP: Download the Transmitter upgrade file from BLACK BOX. Press Enter to display the serial menu.
  • Page 69 It is recommended that you flash upgrade the transmitter before you flash upgrade the DTX user station. Black Box recommends using HTTP Flash upgrade for faster upgrade times. See “To Flash upgrade your DTX user station using HTTP:” on page 58 Download the DTX user station upgrade file from BLACK BOX.

  • Page 70: Restoring Factory Default Settings

    To Flash upgrade your DTX user station using HTTP: Download the DTX user station upgrade file from BLACK BOX. Press Enter to display the serial menu. Press 1 to access the Receiver Main Menu and press Enter. If the password option is enabled, you will be prompted for a password.

  • Page 71: Resetting The Dtx Extender System

    CHAPTER 4: OPERATIONS Press 4 to access the Restore Factory Defaults menu and press Enter. Defaults will now automatically reset. You will be automatically returned to the Appliance Selection Menu. During reset, the DTX user station will drop the connection to the transmitter. When reset is complete, the DTX user station will restore the connection to the transmitter using the new settings.

  • Page 72: Viewing System Information

    SERVSWITCH DTX5000/5001/5002 USER GUIDE will appear that states: Connection to the Transmitter is lost. You will be automati- cally returned to the Appliance Selection Menu. The connection will be automati- cally restored. 4.10 Viewing System Information The serial menu enables you to display the firmware release and details of the DTX user station and of the transmitter.

  • Page 73: Configuring Video Input Settings

    CHAPTER 4: OPERATIONS Figure 4-29. Receiver Appliance Information Menu To view transmitter system information: Press Enter to display the serial menu. Press 2 to access the Transmitter Main Menu and press Enter. If the password option is enabled, you will be prompted for a password. Type the password and press Enter.
  • Page 74 SERVSWITCH DTX5000/5001/5002 USER GUIDE To configure video input settings: Press Enter to display the serial menu. Press 2 to access the Transmitter Main Menu and press Enter. If the password option is enabled, you will be prompted for a password. Type the password and press Enter.

  • Page 75: Session Retry Settings

    CHAPTER 4: OPERATIONS 4.12 Session Retry Settings The DTX user station is designed to automatically establish a connection between the DTX user station and the remote workstation. By default, if the DTX user station cannot immediately establish a connection with the remote workstation it will retry once per second until a connection is successfully established.
  • Page 76 SERVSWITCH DTX5000/5001/5002 USER GUIDE Type the password and press Enter. The Receiver Main Menu will appear. Press 8 to access the Console Setting Menu. The Console Settings Menu will appear. Your currently selected OSD hotkey sequence is displayed beside menu item 1. NOTE: The layout of the Console Settings Menu is different for the Desktop and Extender modes.

  • Page 77: Osd Inactivity Timeout

    CHAPTER 4: OPERATIONS To confirm your selection and exit the screen, type 0 (zero) and press Enter. Table 4.2 OSD Hotkey Sequences Hotkey Sequences Print Screen (Default) Ctrl + Ctrl (L - R) Ctrl + Ctrl (L) Ctrl + Ctrl (R) Alt + Alt (L - R) Alt + Alt (L) Alt + Alt (R)

  • Page 78: Audio Performance Settings

    SERVSWITCH DTX5000/5001/5002 USER GUIDE Press 8 to access the Console Settings Menu and press Enter. The Console Settings Menu will appear. The current OSD Timeout configuration is displayed beside menu item 2. Figure 4-35. Receiver Console Settings Menu Press 2 to access the OSD Inactivity Timer and press Enter. The OSD Inactivity Timer Menu will appear.
  • Page 79 CHAPTER 4: OPERATIONS provides the best audio performance and should be used when high network bandwidth is available. The medium setting should be used if network bandwidth is limited or if the network latency is high. If you choose off, audio support will be disabled. NOTE: To ensure that audio operates correctly, configure the DTX5000-R user station and the transmitter with identical audio performance settings.
  • Page 80 SERVSWITCH DTX5000/5001/5002 USER GUIDE Press 3 to access the Audio Performance Menu and press Enter. The Audio Perfor- mance Menu shows you the audio settings that you can choose from. The current set- ting is indicated by an asterisk symbol. Figure 4-38.
  • Page 81 CHAPTER 4: OPERATIONS Press 4 to access the Audio Performance Menu and press Enter. The Audio Perfor- mance Menu will appear. This menu shows you the audio settings that you can choose from. The current setting is indicated by an asterisk. Figure 4-40.
  • Page 82 SERVSWITCH DTX5000/5001/5002 USER GUIDE...

  • Page 83: Appendix A: Technical Support

    Appendix A: Technical Support Our Technical Support staff is ready to assist you with any installation or operating issues you encounter with your Black Box product. If an issue should develop, follow the steps below for the fastest possible service.

  • Page 84: Appendix B: Troubleshooting

    If the transmitter cannot draw sufficient power from the remote workstation you will need to obtain an external power supply unit for the transmitter from BLACK BOX. If connected through a USB hub, ensure that the hub can supply enough power.
  • Page 85 APPENDICES No mouse or keyboard operation from peripherals attached to DTX user station • Ensure that the mouse and keyboard cables are connected to the correct PS/2 or USB ports on the DTX user station. Match the connector color codes (green for mouse and purple for keyboard).
  • Page 86 If the green LED on the transmitter is on, the transmitter is drawing sufficient power. • If the transmitter cannot draw sufficient power from the remote workstation, obtain an external power supply unit for the transmitter from BLACK BOX. • The transmitter has an internal fan. Verify that the fan is functioning. •...
  • Page 87 APPENDICES Transmitter disconnected from DHCP server (Matrix Mode) To connect transmitter to DHCP server (Matrix Mode): In the DTX5000-CTL Management Appliance Explorer Window area, select Units to add a single unit. Select the product without an IP address. Select No, the Transmitter does not have an address. Plug the DTX5000-T transmitter into the network and turn it on.

  • Page 88: Appendix C: Login Error Messages

    SERVSWITCH DTX5000/5001/5002 USER GUIDE Appendix C: Login Error Messages The following table lists error messages that may appear when using the DTX5000-R user station. Table C.1: DTX5000-CTL Management Appliance and User Station Initiated Error Messages User station Login Description Error Messages User attempts to log in to the DTX5000-CTL Management Login failed Appliance.
  • Page 89 APPENDICES Table C.1: DTX5000-CTL Management Appliance and User Station Initiated Error Messages (Continued) A warning which may be received when a successful connection Login warning was made between the user station and transmitter. The warning Different appliance indicates that the transmitter and user station have different release versions firmware release versions.
  • Page 90 SERVSWITCH DTX5000/5001/5002 USER GUIDE...
  • Page 91 Public Licenses is available from BLACK BOX on a medium customarily used for software interchange for a period of three years from date of purchase of this product by contacting BLACK BOX at www.blackbox.com/support. BLACK BOX AND ITS LICENSORS MAKE NO WAR-...
  • Page 92 LICENSE INFORMATION with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
  • Page 93 LICENSE INFORMATION If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.
  • Page 94 LICENSE INFORMATION PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO...
  • Page 95 NOTES...
  • Page 96 NOTES...
