Muth Mirror Systems Signal Installation Instructions Manual page 15

3
TIP: A gopher rod (wire) maybe use to assist in the Signal
mirror wire harness routing processes.

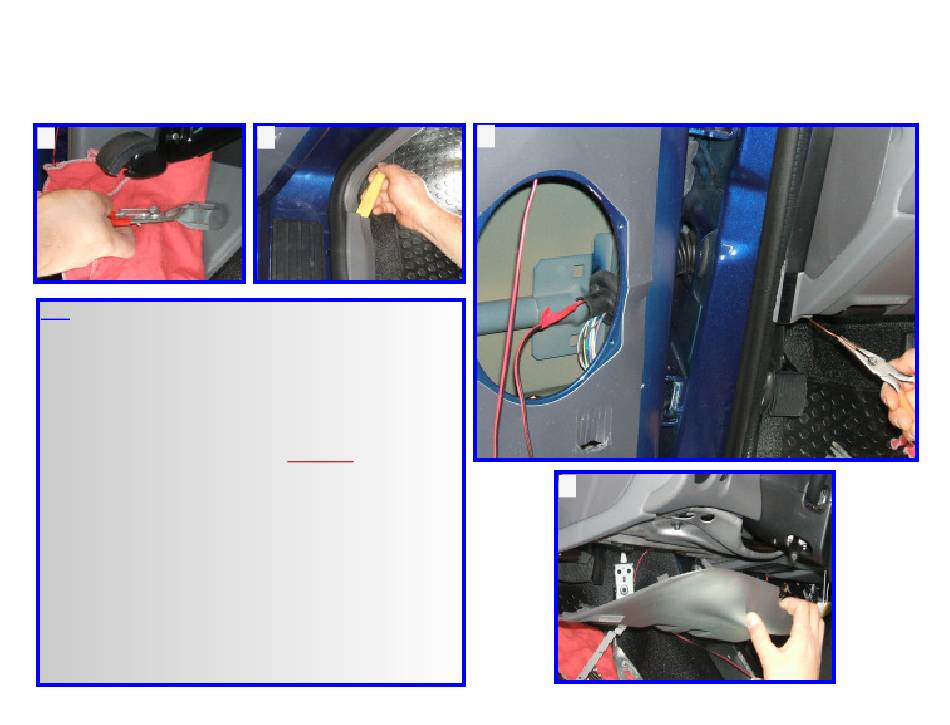

3. Using a push-up tool, remove plastic insert located in the kick panel.
4. With a nylon, non-scratchable, pry bar - lift up on the floor trim partial-
ly, unsnap and remove kick panel.
5. With a gopher rod, guide the Signal® mirror harness thru rubber grom-
met and into vehicle as shown. Gently pull the Signal
ness to remove any slack in the wire.
damage material.
6. To gain access to the wiring location, the knee panel and plate need to
be removed. Using a T-30 Torx bit, remove the (2) screws holding the
knee panel in place. Unsnap and remove knee panel. Using an 8mm
socket, remove the (5) screws around the knee plate and remove knee
plate.
* Before proceeding, please read remainder of instructions for infor-
mation regarding wiring identification and options. *
** Repeat all of the previous steps to replace the factory mirror on the
passenger side door with the new Signal
Ranger - Wire Routing Continued
4
mirror wire har-
®
CAUTION: Careful not to
mirror. **
®
5
®
6
Page 15
