Muth Mirror Systems Signal Installation Instructions Manual page 14

WARNING: When routing wires into vehicle, it is extremely important to not let wires get pinched or crushed at any time. Avoid
window track and sharp edges at all times. Not doing so may cause circuit shortage problems in the long run.
1
TIP: A gopher rod (wire) maybe use to assist in the Signal

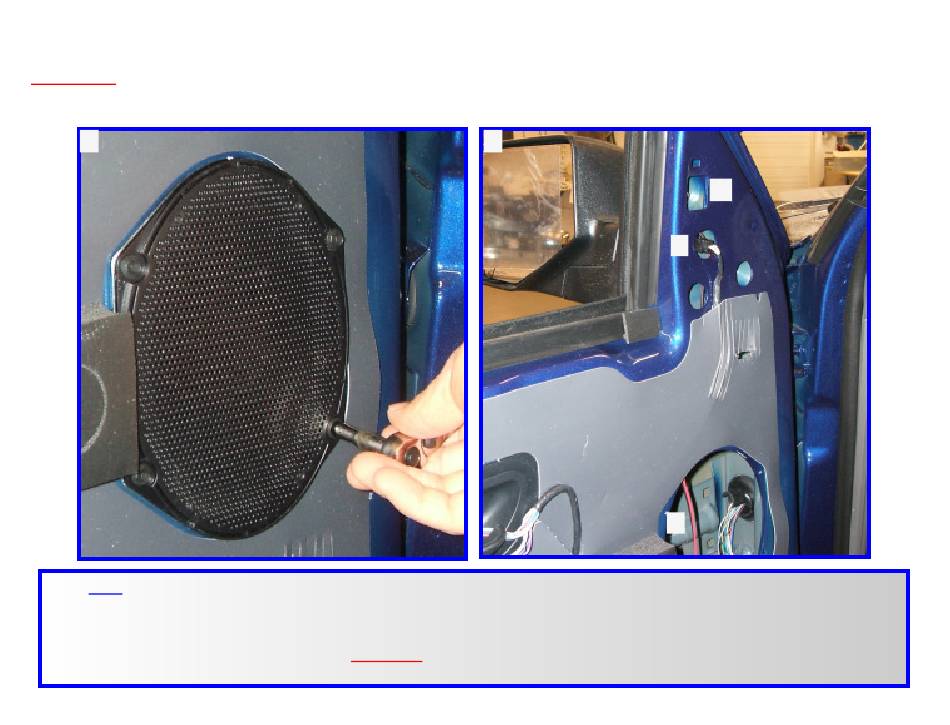

1. Using a 6mm socket, remove the (4) speaker screws. Disconnect speaker wire and remove speaker to gain access to wire routing passage.
2. Guide the wire harnesses through the door frame and position the mirror housing assembly on the mirror mount. Bolt the mirror housing to the mir-
ror mount with three mirror mounting nuts (A).
Route the Signal® mirror harness down in between door frame as shown in (C).
Ranger - Wire Routing
2
WARNING! Do not over tighten the mirror mounting nuts.
Page 14
A
B
C
mirror wire harness routing processes.
®
Reconnect OE wire harness (B).
