Muth Mirror Systems Signal Installation Instructions Manual page 12

WARNING: Safety glasses and sturdy gloves are required for mirror replacement.
1
3
A

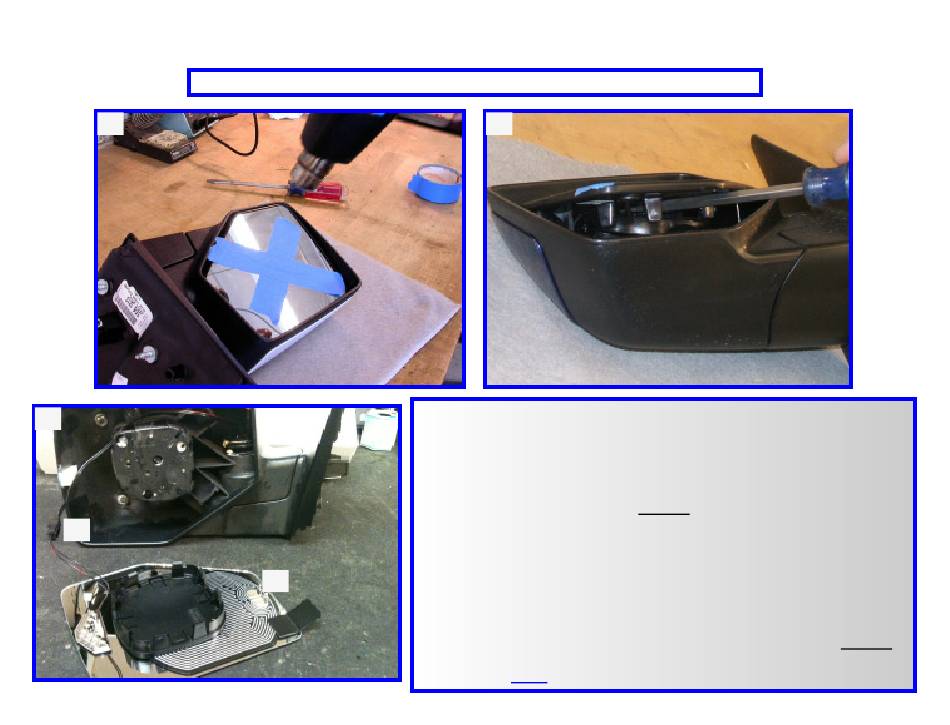

Ranger - Mirror Replacement
1. Place an 'X' on the mirror glass with masking tape to help prevent glass breakage.
With a heater gun (blow dryer), heat around the central portions of the glass (in a
circular motion) for about 30 seconds to help loosen backing plate engagement.
2. Push on the outboard side of the mirror to manually pivot mirror fully inward. In-
sert a large flathead screwdriver down between the motor actuator and the back-
plate motor mount. Slowly and carefully pry up against mirror and around motor
actuator until OE mirror unsnaps. If heated, disconnect heater wires from heater
terminals. Lift up and remove OE mirror.
3. Using the shorter of the two Signal® mirror harnesses from the wiring kit, guide
the end without the mating connector from inside mirror housing and out
through the housing sail leaving about 4"-6" of wiring inside housing for con-
B
nection.
wiring passages.
side routing passage. Connect the Signal® mirror mating connector to the Signal®
mirror harness (A) and wrap connectors with the supplied foam wrap. If heated,
reconnect the heater wires to the heater terminals on the back of the new Signal®
mirror (B).
2
When routing the Signal® mirror harness thru, make sure to follow OE
Pull the Signal® mirror harness thru to eliminate any slack in-
NOTE: There is no polarity so the wires may be interchanged.
Page 12
