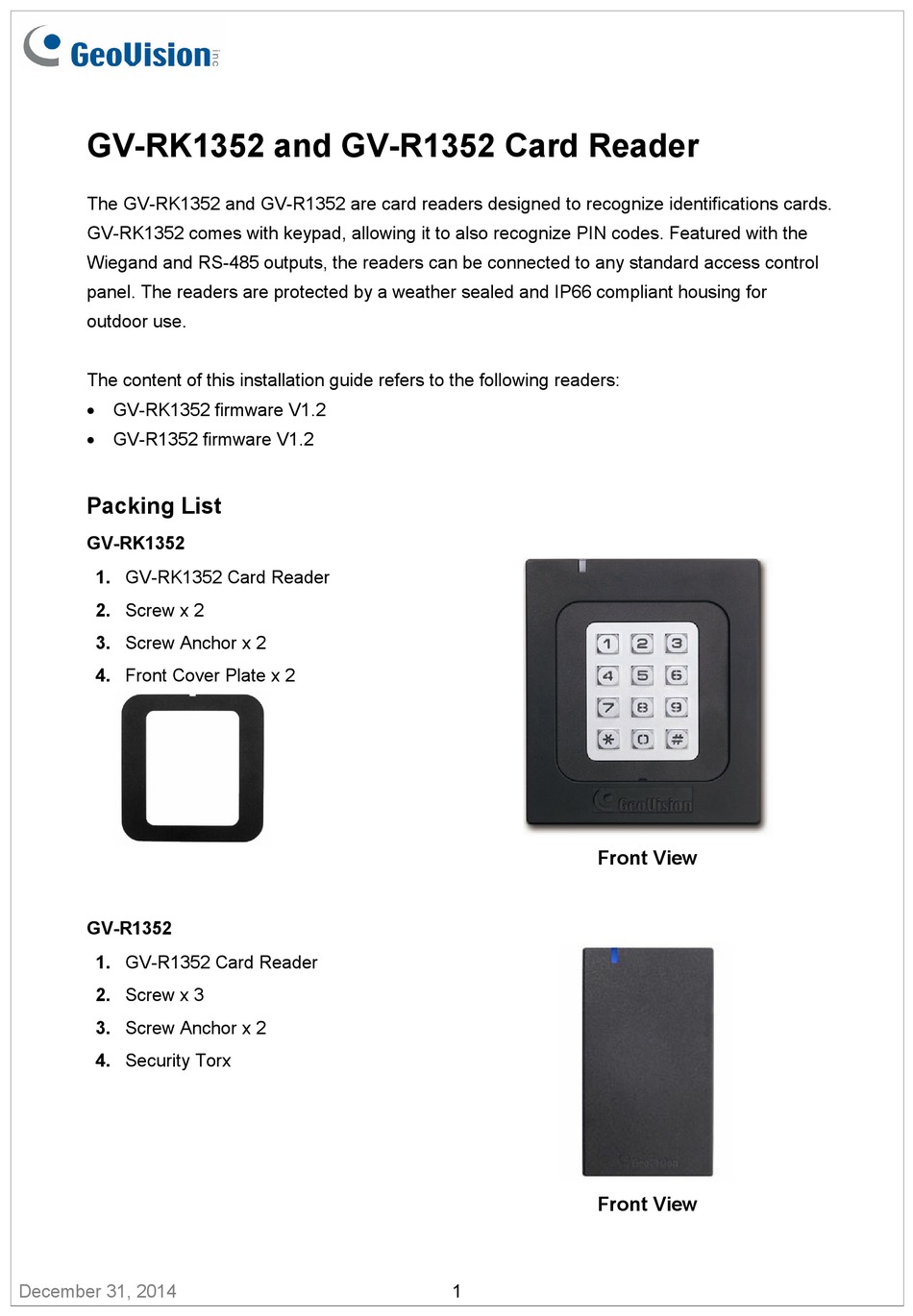

GV-RK1352 and GV-R1352 Card Reader
The GV-RK1352 and GV-R1352 are card readers designed to recognize identifications cards.
GV-RK1352 comes with keypad, allowing it to also recognize PIN codes. Featured with the
Wiegand and RS-485 outputs, the readers can be connected to any standard access control
panel. The readers are protected by a weather sealed and IP66 compliant housing for
outdoor use.
The content of this installation guide refers to the following readers:
 GV-RK1352 firmware V1.2
 GV-R1352 firmware V1.2
Packing List
GV-RK1352
1. GV-RK1352 Card Reader
2. Screw x 2
3. Screw Anchor x 2
4. Front Cover Plate x 2
GV-R1352
1. GV-R1352 Card Reader
2. Screw x 3
3. Screw Anchor x 2
4. Security Torx
December 31, 2014
Front View
Front View
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GV-R1352 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-R1352

Summary of Contents for GeoVision GV-R1352

  • Page 1 GV-RK1352 and GV-R1352 Card Reader The GV-RK1352 and GV-R1352 are card readers designed to recognize identifications cards. GV-RK1352 comes with keypad, allowing it to also recognize PIN codes. Featured with the Wiegand and RS-485 outputs, the readers can be connected to any standard access control panel.

  • Page 2: Physical Descriptions

    Light Red Red LED Green Wiegand Data 0 White Wiegand Data 1 Blue RS-485 + Light Blue RS-485 - Rear View GV-R1352 Wire Color Function DC 7.5 ~ 12V Black Yellow Beeper Orange Green LED Light Red Red LED Green...
  • Page 3 1.2 Keypad (GV-RK1352 Only) When accessing an entry using GV-RK1352, you can enter the door’s PIN code on the keypad or present the card and then enter the card’s PIN code on the keypad to be granted access. The access mode is defined on GV-ASManager. 1.
  • Page 4 2. Connecting the Reader to GV-AS Controller You can connect the readers to GV-AS Controllers through Wiegand or RS-485 interface. Note that the connection between the reader and GV-AS Controller varies with different controller models. To see how many readers can be connected to a GV-AS Controller, refer to The Number of Readers Supported by GV-AS Controllers table at the end of this installation guide.
  • Page 5 2.2 Connecting through RS-485 Interface The following diagrams use GV-RK1352 and GV-AS810 Controller as an example. Up to eight readers can be connected together to the RS-485 interface on GV-AS810 Controller. Connecting four or less readers to GV-AS810 Controller:  Wire Color Function Black Light Blue...
  • Page 6 2.2.1 Defining Readers on GV-AS Controller Web Interface Since multiple readers can connect to GV-AS Controller using one RS-485 interface, you need to specify which door each reader controls. This section explains how to define readers on the Web interface of GV-AS Controller. On the Web interface, you can also set the reader to read the GID or UID on GV-AS ID Cards / Key Fobs.
  • Page 7 4. Next to Read Mode, select Read UID or Read GID to set the connected readers to read UID (unique identifier) or GID (GeoVision ID) on GV-AS ID Cards / Key Fobs. If you select Read GID, make sure there are two numbers on your GV-AS ID Cards / Key Fobs as shown below.
  • Page 8 You can inst all the Con fig AP from the Software DVD or GeoVision Website. To use a GV- OM, GV-Hub or GV-NET/IO Card V3.1, you also need to install GeoVision USB Device river. Installing from Software CD 1. Insert the software CD and the Install Program window will pop up automatically.
  • Page 9 GV-System or GV-R1352 GV-NET/IO Card Note: GV-RK1352 / GV-R1352 is not compatible with GV-NET Card and GV-NET/IO Card of versions earlier than V3. 4.1 Defining the ID Number and Setting the Reader to Slave After the reader is connected to the computer of the GV-System, use the GV-R/RK/DFR Config AP to define the ID number of the reader and set the reader to Slave.
  • Page 10 2. Select the COM port that is connected to the reader and click Open COM. The seria number and firmware version of the reader will be automatically detected. The red s quare next to the COM port box should change to blue to indicate the COM port is correct. 3.
  • Page 11 4.2 Adding the Reader to GV-System 1. In GV-System, click the Configure button, select Accessories, and select GV Wiegand Capture Device Setting. This dialog box appears. 2. Click the New button. This dialog box appears. Type: Select GV-Wiegand Capture.  Device: Type a number and name to help you identify the reader.
  • Page 12 5. Changing the Default Settings of Beeper and LED You can change the default settings of the LED and the beeper by enabling a GV-AS210 / 2110 / 400 / 410 / 4110 / 810 / 8110 to externally control the LED and Beeper. Through the Web interface, you can set the controller to trigger the re d LED, green LED or beeper when the specified alarm events occur.
  • Page 13 2. Click Open COM. The serial number and the firmware version of the reader will be automatically detected. 3. To enable external control of Beeper or LED, select Beeper, Green LED or Red LED. 4. Select Master from the Master / Slave drop-down list. 5.
  • Page 14 5.2 Wiring the Beeper and LED to the GV-AS Controller To wire the beeper and LED to GV-AS210 / 2110 / 400 / 410 / 4110 / 810 / 8110, connect the control wires of the reader’s Beeper, Red LED or Green LED to any of the outputs on GV-AS Controller.
  • Page 15 After wiring, you also need to go to GV-ASManager to select the alarm conditions that will set off the reader’s beeper. In GV-ASManager, right-click the GV-AS Controller in the device list, click Settings, and click the Door / Gate tab to select the alarm conditions. December 31, 2014...
  • Page 16 5.3 Configuring the Beeper and LED Settings for Each Door/Gate After connecting the wires for beeper or LED, specify the conditions to trigger the beeper and LED on the GV-AS210 / 2110 / 400 / 410 / 4110 / 810 / 8110 Web interface. 1.
  • Page 17 By default, the readers read the UID (unique identifier) on ID cards or key fobs. Using GV- R/RK/DFR Config AP, you can set the GV-RK1352 / GV-R1352 to read GID (GeoVision ID) n GV-AS ID Cards / Key Fobs instead.
  • Page 18 To use GID, make sure there are two numbers on your GV-AS ID Cards / Key Fobs as shown below. If there is only one number on your GV-AS ID Cards / Key Fobs, GID is not supported and you must select Unique Identification (UID). December 31, 2014...

  • Page 19: Firmware Upgrade

    7. Firmware Upgrade GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into the reader by using Update Utility included in the Software CD. Important Notes before You Start Before you start updating the firmware, please read these important notes: 1.

  • Page 20: Specifications

    8. Specifications GV-RK1352 GV-R1352 8-bit microprocessor 13.56 M Hz for ISO14443A (Mifare DESFire, Mifare Plus and Frequency Mifare C lass) Wiegand Interface Wiegand 26 / 34 bits, distance 30 m / 98.43 ft RS-485 9,600 bps, connect up to 8 GV-RK1352 / R1352 units Power DC 7.5 ~ 12V...
  • Page 21 9. Accessory (GV- RK1352 Only) O tional accessories can exp and the capa bilities and versatilit ies of your G V-RK1352 Card Reader. Consult your sales r epresentative for more information. GV-Moun tA900 is a mounting plate that allows you to attach GV-RK135 to a US s ingle gang pow er box.
