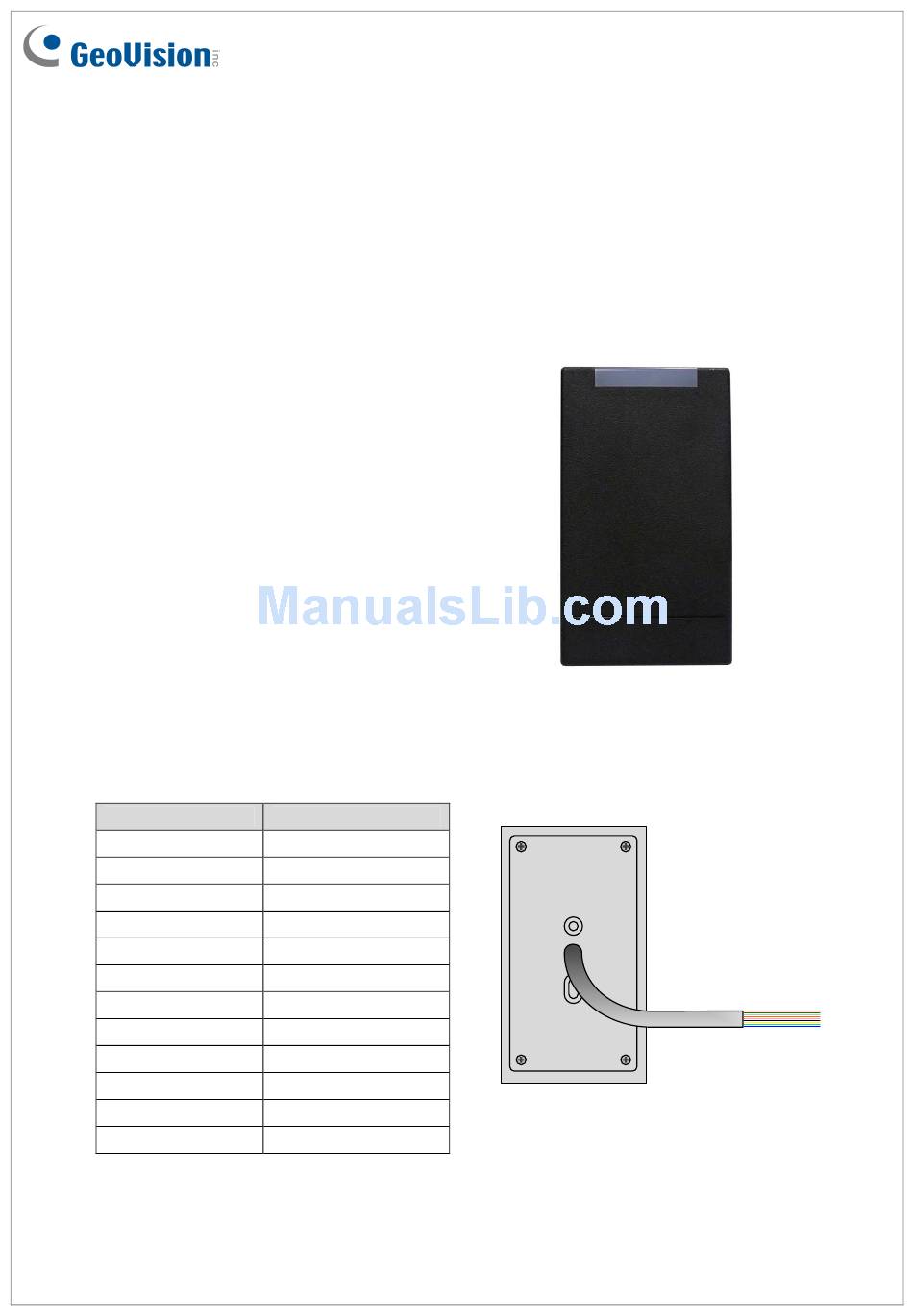

GV- R1352 Card Reader
The GV-R1352 is a card reader designed to recognize identification cards. Featured with the
Wiegand and RS-485 outputs, the unit can be connected to any standard access control
panel. GV-R1352 comes with a weather sealed and IP66 compliant housing for outdoor use.
1. Packing List
1. GV-R1352 Card Reader x 1
2. Screw x 3
3. Screw Anchor x 2
4. Security Torx
5. GV-R1352 Software CD x 1
6. GV-R1352 Installation Guide
2. Electric Wire
Wire Color
Red
Black
Yellow
Orange
Light Red
Green
White
Blue
Light Blue
Gray
Purple
Brown
June 15, 2011
Function
DC 12V
GND
Beeper
Green LED
Red LED
Wiegand Data 0
Wiegand Data 1
RS-485 +
RS-485 -
N/A
N/A
N/A
Front View
Rear View
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GV-R1352 and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-R1352

Summary of Contents for GeoVision GV-R1352

  • Page 1 GV- R1352 Card Reader The GV-R1352 is a card reader designed to recognize identification cards. Featured with the Wiegand and RS-485 outputs, the unit can be connected to any standard access control panel. GV-R1352 comes with a weather sealed and IP66 compliant housing for outdoor use.
  • Page 2 In standby mode, the LED is blue. When a card is read, the LED flashes green and the beeper beeps once. GV-R1352 comes with the external control wires of Green LED, Red LED and Beeper. When these control wires are connected to GV-AS Controller, the status of LED and Beeper can be defined by GV-AS Controller.
  • Page 3 4.2 Connecting through RS-485 Interface Up to eight GV-R1352 readers can be connected together to the RS-485 interface on GV- AS400 Controller. When multiple readers are connected to the same RS-485 interface, you need to specify each reader an ID so that the controller can distinguish one reader from another.
  • Page 4 4. Go back to the Install Program window, and select Run GV-RK1352 Config Utility. This dialog box appears. 5. Type the barcode number of GV-R1352 in the Serial ID box. The barcode number is on the rear panel of GV-R1352.
  • Page 5 8. Click Setup GO. The settings are sent to GV-R1352. Note: If you select the wrong COM port of GV-R1352, a “Fail. Please check Serial ID and comport” message will appear when you click the Setup GO button. Go to Windows Device Manager to find out the COM port of GV-R1352.
  • Page 6 4.2.3 Wiring GV-R1352 to GV-AS Controller After defining the ID number of the readers, you can connect the wires of GV-R1352 to GV- AS Controller. Here we use GV-AS400 Controller as example to illustrate the wiring. Connecting four or less readers to GV-AS400 Controller:...
  • Page 7 5. Defining Readers on GV-AS Controller Web Interface This section explains how to define readers on the Web interface of GV-AS Controller using GV-AS400 Controller as an example. Since GV-AS400 Controller can control up to four doors, you need to specify which door each reader controls. 1.
  • Page 8 1. Start the GV-RK1352 Config AP. Type the barcode number and the COM port of GV- R1352. The barcode number is on the rear panel of GV-R1352. Refer to Defining ID Numbers of Readers earlier in this installation guide on how to determine the COM port of GV-R1352.
  • Page 9 To wire the beeper and LED to GV-AS Controller, follow these steps. We will use GV-AS400 Controller as an example. Connect the control wires of GV-R1352’s Beeper, Red LED or Green LED to any of outputs 9 ~ 16 on GV-AS400 Controller. The following diagram is an example on connecting the beeper wire of GV-R1352 to GV-AS400 Controller.
  • Page 10 6.3 Configuring the Beeper and LED Settings for Each Door/Gate After connecting the wires for Beeper or LED, specify the Beeper or LED settings for each door/gate on the GV-AS Web interface. Here we use GV-AS400 Controller as example. 1. On the GV-AS400 Web interface, click Output Setting. The page below appears. 2.

  • Page 11: Firmware Upgrade

    7. Firmware Upgrade GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into GV-R1352 by using Update Utility included in the Software CD. Important Notes before You Start Before you start updating the firmware, please read these important notes: 1.

  • Page 12: Specifications

    13.56 MHz for ISO14443A (Mifare DESFire, Mifare Frequency Plus and Mifare Class) Wiegand Interface Wiegand 26 / 34 bit, distance 30 m / 98.43 ft RS-485 9,600 bps, connect up to 8 GV-R1352 units Power DC 7.5V – 12V Red, Green and Blue LED Beeper Buzzer...
