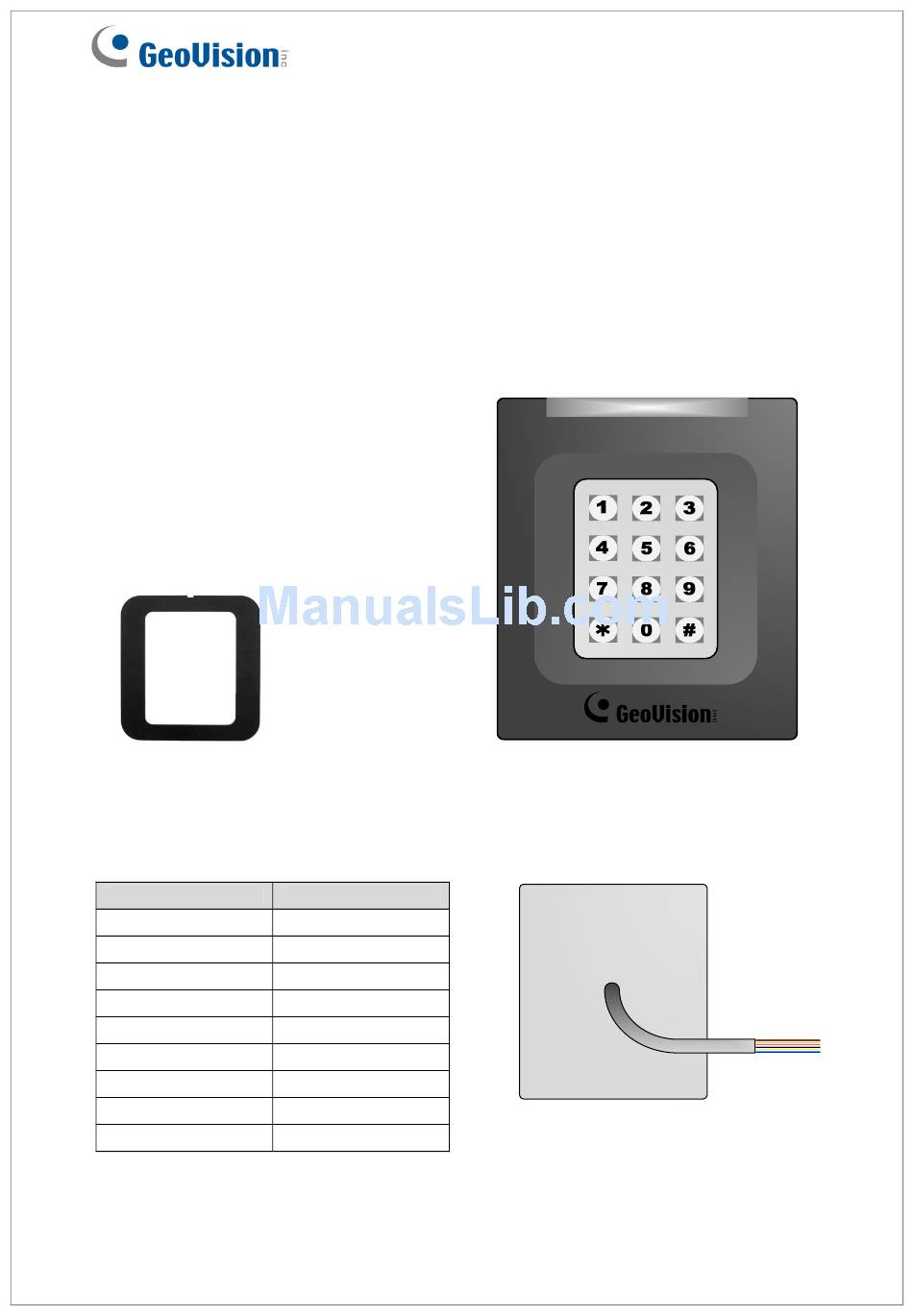

GV- RK1352 Card Reader
The GV-RK1352 is a card reader with keypad, designed to recognize PIN codes,
identification cards or both. Featured with the Wiegand and RS-485 outputs, the unit can be
connected to any standard access control panel. GV-RK1352 comes with a weather sealed
and IP66 compliant housing for outdoor use.
1. Packing List
1. GV-RK1352 Card Reader x 1
2. Screw x 2
3. Screw Anchor x 2
4. GV-RK1352 Software CD x 1
5. GV-RK1352 Installation Guide x 1
6. Front Cover Plate x 2
2. Electric Wire
Wire Color
Red
Black
Yellow
Orange
Light Red
Green
White
Blue
Light Blue
September 23, 2010
Function
DC 7.5 ~ 12 V
GND
Beeper
Green LED
Red LED
Wiegand Data 0
Wiegand Data 1
RS-485 +
RS-485 -
1
Front View
Rear View

Advertisement

loading
Need help?

Need help?

Do you have a question about the GV- RK1352 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV- RK1352

Summary of Contents for GeoVision GV- RK1352

  • Page 1 GV- RK1352 Card Reader The GV-RK1352 is a card reader with keypad, designed to recognize PIN codes, identification cards or both. Featured with the Wiegand and RS-485 outputs, the unit can be connected to any standard access control panel. GV-RK1352 comes with a weather sealed and IP66 compliant housing for outdoor use.
  • Page 2 3. Keypad When accessing an entry, you can enter the door’s PIN code on the keypad or present the card and then enter the card’s PIN code on the keypad to be granted access. The access mode is defined on GV-ASManager. 1.
  • Page 3 5.1 Connecting through Wiegand Interface Up to eight GV-RK1352 readers can be connected to GV-AS400 Controller through the controller’s Wiegand interface. Wire Color Function Black Green Wiegand Data 0 White Wiegand Data 1 DC 12 V 5.2 Connecting through RS-485 Interface Up to eight GV-RK1352 readers can be connected together to the RS-485 interface on GV- AS400 Controller.
  • Page 4 1. Insert the software CD and the Install Program window will pop up automatically. 2. Select Install GeoVision USB Devices Driver. 3. In the GeoVision USB Driver Installer window that appears, select Install. 4. Go back to the Install Program window, and select Run GV-RK1352 Config Utility. This dialog box appears.
  • Page 5 5. Type the barcode number of GV-RK1352 in the Serial ID box. The barcode number is on the rear panel of GV-RK1352. 6. Select the COM port that is connected to GV-RK1352 and click Open COM. The red square next to the COM port box should change to blue to indicate the COM port is correct.
  • Page 6 5.2.3 Wiring GV-RK1352 to GV-AS Controller After defining the ID number of the readers, you can connect the wires of GV-RK1352 to GV- AS Controller. Here we use GV-AS400 Controller as example to illustrate the wiring. Connecting four or less readers to GV-AS400 Controller: Wire Color Function Black...
  • Page 7 6. Defining Readers on GV-AS Controller Web Interface To define readers on the Web interface of GV-AS Controller, we use GV-AS400 Controller as example. Since GV-AS400 Controller can control up to four doors, you need to specify which door each reader controls. 1.
  • Page 8 7. Configuring the Beeper and LED Indicator You can configure the settings of the LED and the beeper by enabling the GV-AS Controller to externally control the LED and Beeper. You will have to: 1. Set up the Beeper and LED settings of the reader by using the GV-RK1352 Config AP. 2.
  • Page 9 2. To enable external control of Beeper or LED, select Beeper, Green LED or Red LED. Beeper: Enables the external control of Beeper. Green LED: Changes the standby color to green. Red LED: Changes the standby color to red. 3. Select Slave from the Master / Slave drop-down list and select an ID number for the reader.
  • Page 10 7.3 Configuring the Beeper and LED Settings for Each Door/Gate After connecting the wires for Beeper or LED, specify the Beeper or LED settings for each door/gate on the GV-AS Web interface. Here we use GV-AS400 Controller as example. 1. On the GV-AS400 Web interface, click Output Setting. The page below appears. 2.

  • Page 11: Firmware Upgrade

    8. Firmware Upgrade GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into GV-RK1352 by using Upload Application included in the Software CD. Important Notes before You Start Before you start updating the firmware, please read these important notes: 1.

  • Page 12: Specifications
