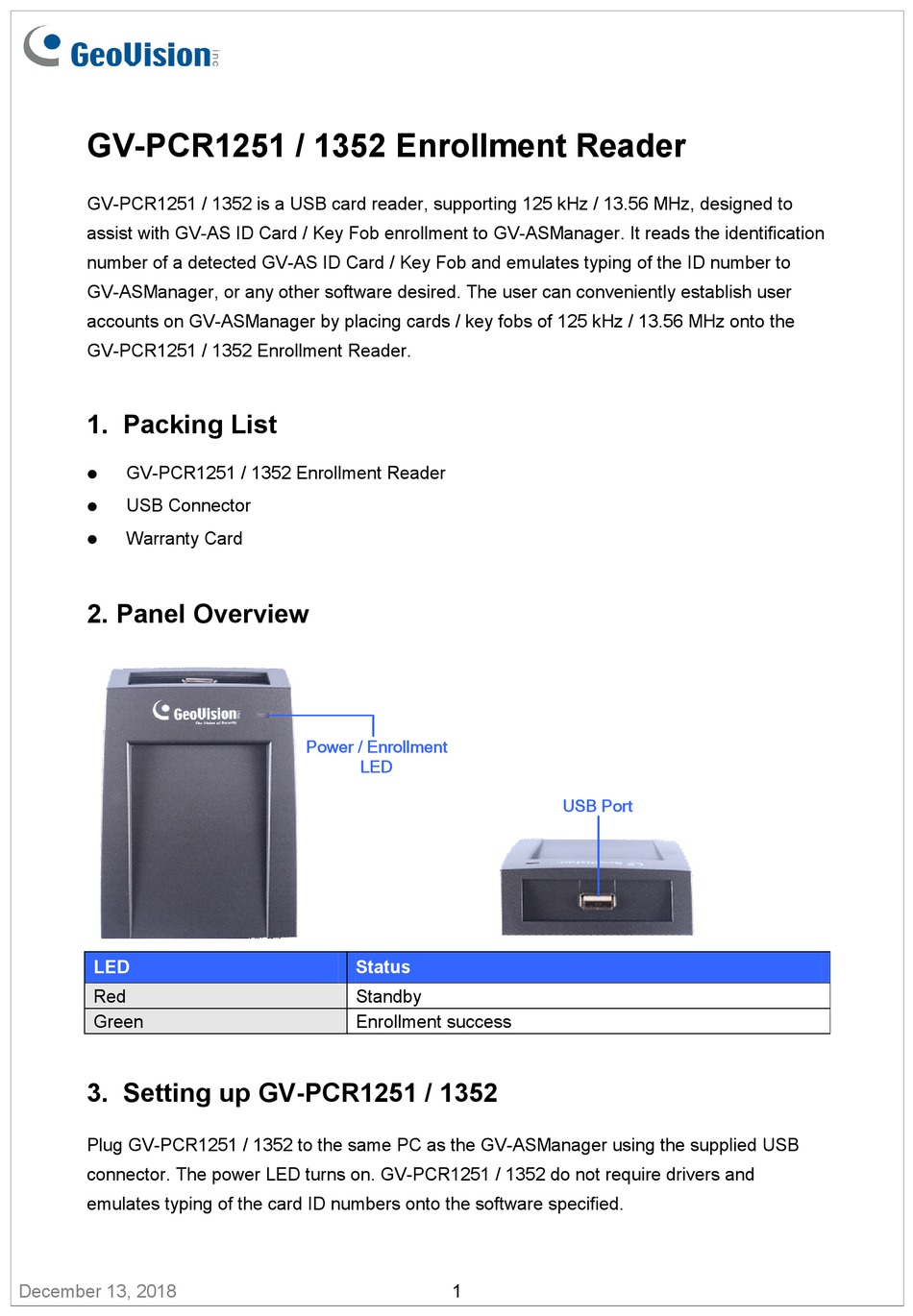

GV-PCR1251 / 1352 Enrollment Reader
GV-PCR1251 / 1352 is a USB card reader, supporting 125 kHz / 13.56 MHz, designed to
assist with GV-AS ID Card / Key Fob enrollment to GV-ASManager. It reads the identification
number of a detected GV-AS ID Card / Key Fob and emulates typing of the ID number to
GV-ASManager, or any other software desired. The user can conveniently establish user
accounts on GV-ASManager by placing cards / key fobs of 125 kHz / 13.56 MHz onto the
GV-PCR1251 / 1352 Enrollment Reader.
1. Packing List
GV-PCR1251 / 1352 Enrollment Reader
USB Connector
Warranty Card
2. Panel Overview
LED
Red
Green
3. Setting up GV-PCR1251 / 1352
Plug GV-PCR1251 / 1352 to the same PC as the GV-ASManager using the supplied USB
connector. The power LED turns on. GV-PCR1251 / 1352 do not require drivers and
emulates typing of the card ID numbers onto the software specified.
December 13, 2018
Power / Enrollment
LED
Status
Standby
Enrollment success
1
USB Port
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GeoVision GV-PCR1251
Summary of Contents for GeoVision GV-PCR1251
- Page 1 GV-PCR1251 / 1352 Enrollment Reader GV-PCR1251 / 1352 is a USB card reader, supporting 125 kHz / 13.56 MHz, designed to assist with GV-AS ID Card / Key Fob enrollment to GV-ASManager. It reads the identification number of a detected GV-AS ID Card / Key Fob and emulates typing of the ID number to GV-ASManager, or any other software desired.
- Page 2 3. Select the Card Code that coincides with the card / key fob you want to enroll and click in the Card Number field. 4. Place the card / key fob into close proximity, within 2 cm, of the GV-PCR1251 / 1352 Enrollment Reader. The ID number of the card / key fob is automatically typed into the Card Number field.
- Page 3 Note: 1. Make sure the frequency of the cards / key fobs you want to enroll match that of the enrollment reader. 2. If special characters / garbled texts are typed into the Card Number field, instead of the ID number, switch your input method to English and try again. 5.
-
Page 4: Specifications
5. Specifications GV-PCR1251 GV-PCR1352 System Requirements 32-bit Windows 7 / 8 / 8.1 / 10 64-bit Windows 7 / 8 / 8.1 / 10 / Server 2012 / 2012 R2 / 2016 GV-AS Manager Version All versions Operational Frequency 125 kHz 13.56 MHz...
