GV- RK1352 Card Reader
The GV-RK1352 is a card reader with keypad, designed to recognize PIN codes,
identification cards or both. Featured with the Wiegand and RS-485 outputs, the unit can be
connected to any standard access control panel. GV-RK1352 comes with a weather sealed
and IP66 compliant housing for outdoor use.
1. Packing List
1. GV-RK1352 Card Reader x 1
2. Screw x 2
3. Screw Anchor x 2
4. GV-RK1352 Software CD x 1
5. GV-RK1352 Installation Guide x 1
6. Front Cover Plate x 2
2. Electric Wire
Wire Color
Red
Black
Yellow
Orange
Light Red
Green
White
Blue
Light Blue
February 5, 2014
Function
DC 7.5 ~ 12 V
GND
Beeper
Green LED
Red LED
Wiegand Data 0
Wiegand Data 1
RS-485 +
RS-485 -
1

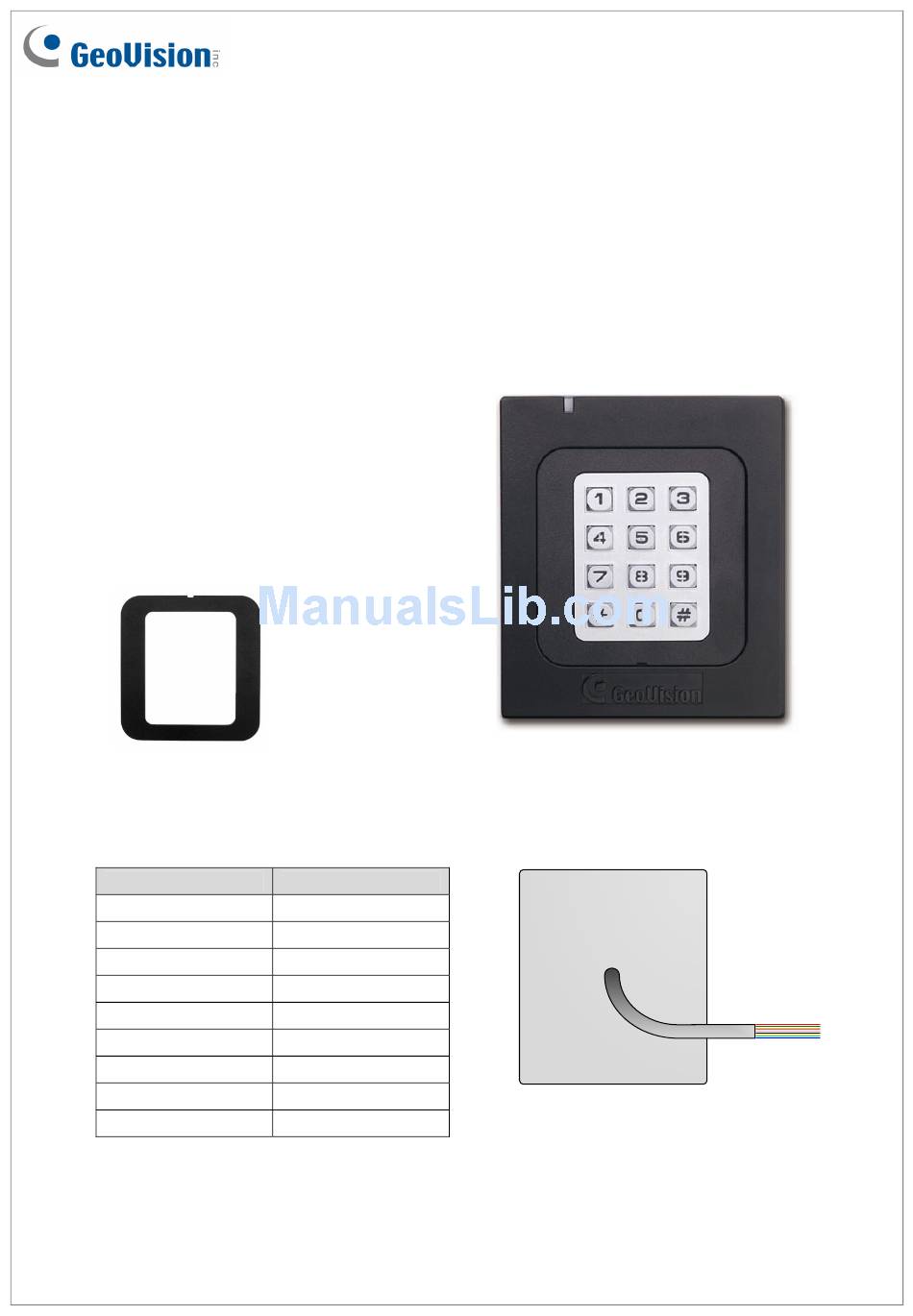

Front View
Rear View
