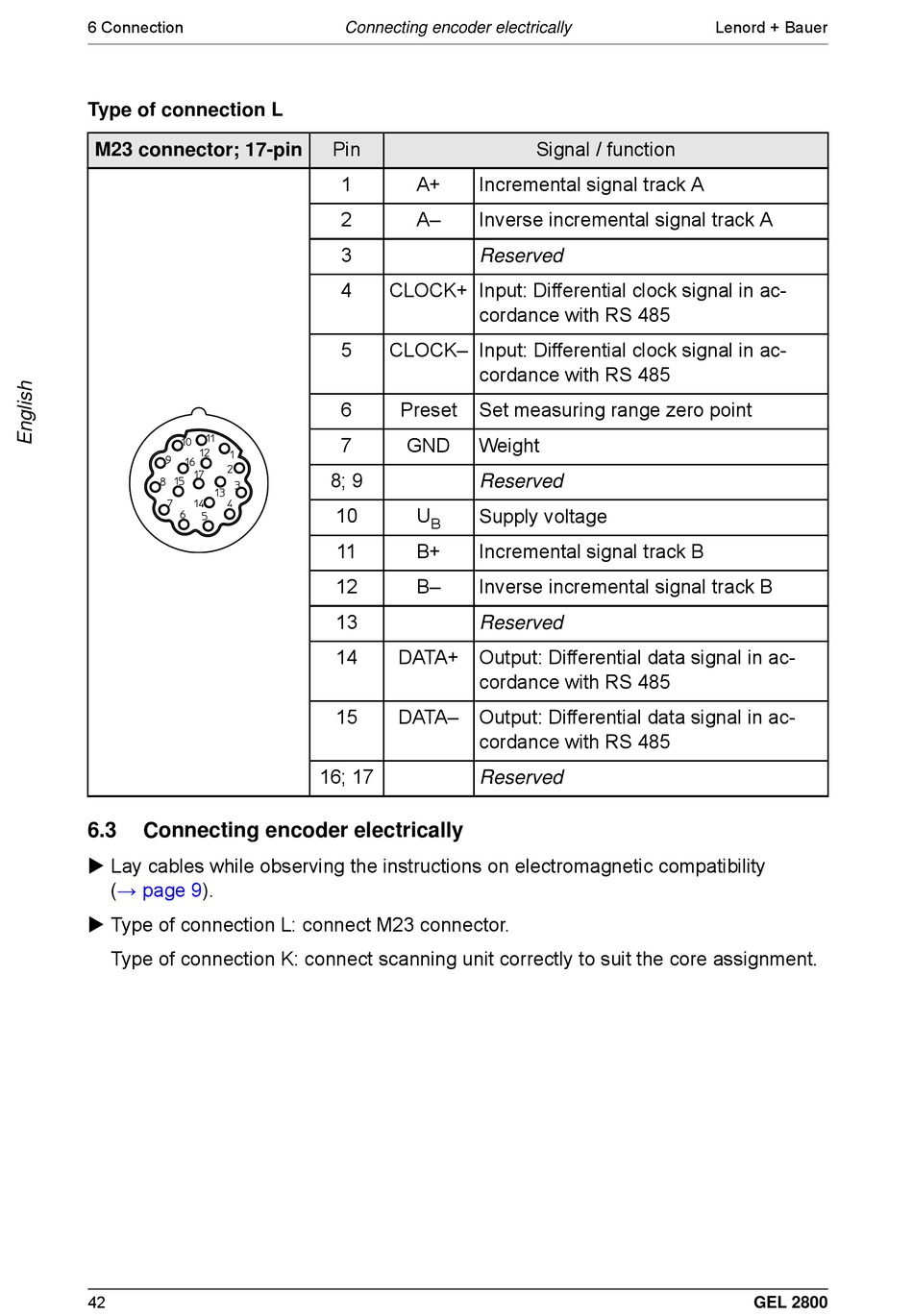

6 Connection
Type of connection L
M23 connector; 17-pin
6.3

Connecting encoder electrically

 Lay cables while observing the instructions on electromagnetic compatibility
(→ page 9).
 Type of connection L: connect M23 connector.
Type of connection K: connect scanning unit correctly to suit the core assignment.
42
Connecting encoder electrically
Pin
1 A+ Incremental signal track A
2 A– Inverse incremental signal track A
3
Reserved
4 CLOCK+ Input: Differential clock signal in ac-
cordance with RS 485
5 CLOCK– Input: Differential clock signal in ac-
cordance with RS 485
6 Preset Set measuring range zero point
7 GND Weight
8; 9
Reserved
10 U Supply voltage
B
11 B+ Incremental signal track B
12 B– Inverse incremental signal track B
13
Reserved
14 DATA+ Output: Differential data signal in ac-
cordance with RS 485
15 DATA– Output: Differential data signal in ac-
cordance with RS 485
16; 17
Reserved
Signal / function
