Summary of Contents for Olimpia splendid Maestro Smart Series

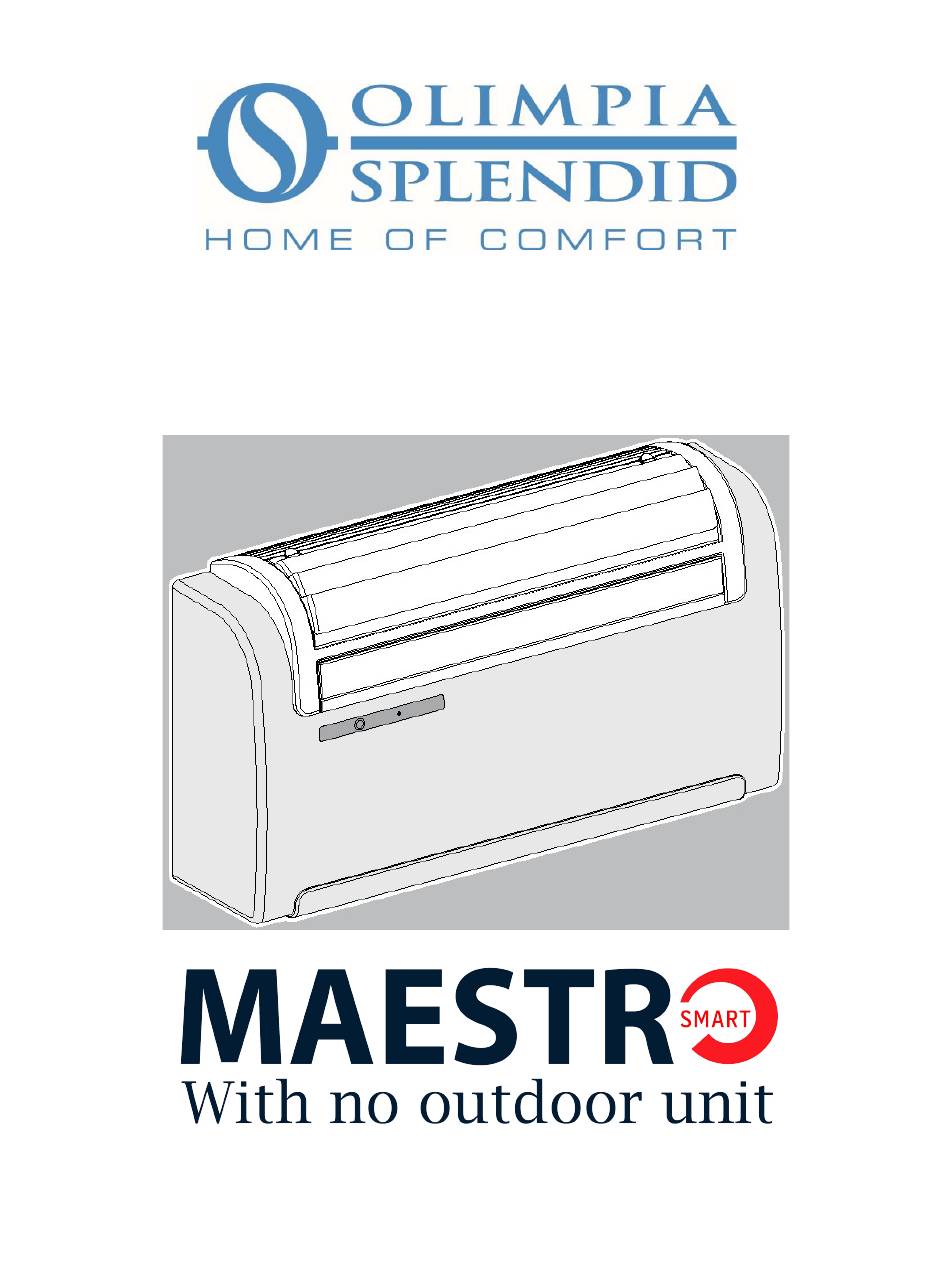

- Page 1 INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE Customer Service It means the world to us because customers are our world...
-
Page 2: Table Of Contents
WARNINGS 1. Children must not use or play with this appliance unless supervised by an adult 2. If the power cord is damaged it must be replaced by licensed and qualified HVAC technician*. 3. Installation, initial start-up and maintenance, with the exception of the air filter cleaning and washing, must be performed by qualified personnel. -
Page 3: Pictorials Of Installation And Remote Control
- The height of the unit's lower edge from the floor must be at least 4”. - If fixed to the wall in the highest position, it must be at least 3.5” from the ceiling. - The wall on which the inside unit is installed must be sturdy and able to withstand its weight. - Page 4 4A to 4G Do not store anything on the unit as it will limit airflow, reduce capacity and increase energy costs. Do not attempt to manually open or close the modulating damper or spray corrosive cleaning agents into the unit. Do not allow curtains or other hanging materials to block the flow of air entering or exiting the unit.
- Page 10 AUTO AUTO NOTE: The remote control is equipped with a sliding cover that can be positioned to permit access only to the ON/OFF, automatic operating and NIGHT MODE buttons.
-
Page 11: Section 1 - General
This document contains proprietary information protected by law. The reproduction or transmission to third parties without the explicit authorization of OLIMPIA SPLENDID is forbidden. All products are subject to updating and as such may appear different from the designs contained herein, although this does not in any way invalidate the texts contained in the manual. Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter. -
Page 12: Warning About Proper Use
3 days of receiving the unit. Send the same information by fax to OLIMPIA SPLENDID. No claims for damage will be accepted if made more than 3 days after the delivery of the goods. -
Page 13: Section 2 - Installation
To obtain the best results and optimum performance follow the instructions in this manual. Failure to follow the instructions may cause malfunction of the appliance and relieves the manufacturer, OLIMPIA SPLENDID, of any form of liability for damages to persons, animals or property. -
Page 14: Preparing The Condensate Discharge
WARNING: Olympia Splendid shall not be held liable for any underestimates made in the structural consistency of the wall or the anchoring materials used by the installer. As such pay close attention when mounting the units to avoid the potential for serious injury to people or damage to property if carried out incorrectly. -
Page 15: Top/Bottom Installation Configurations
WARNING: The power supply to the unit must comply with all local and/or national codes as may have jurisdiction. It is also required to ensure power supply is equipped with a sufficient earth ground for the safety of the occupants as well as the well being of the electronic controls. -
Page 16: Operating Tests And Troubleshooting
OPERATING TESTS AND ANOMALY DIAGNOSIS The unit is able to perform a brief auto-diagnosis cycle to check that the internal components are operating normally. During process the installer can configure the control board based on whether installation was applied near the ceiling or near the floor. To activate the self- diagnosis function, use the following procedure: ... -
Page 17: Cleaning The Air Filter
2.6.1 Cleaning the air filter Removing or cleaning the filter must be performed with the unit deenergized. The procedure for removing the filter is as follows: Manually unhook and turn the front air aspiration grill as indicated in fig. 25 ... -
Page 18: Section 3 - Use And Maintenance
USE AND MAINTENANCE WARNINGS * The installation and electrical connection of the unit should be performed performed by qualified personnel. No objects, such as furniture, curtains, plants, leaves, blinds, etc., should be allowed to obstruct the normal flow of air from either the internal or external gratings. -
Page 19: Operational Modes (Turing The Unit On/Off)
Operational Modes - Turning The Unit On/Off 3.3.3 Button T1 is used to switch the unit off (stand-by mode) or to switch the unit back on. An EPROM contained in the unit’s control board system settings are retained when the unit is shut off or de-energized. NOTE: If the unit will not be used for an extended period of time it should be de-energized by turning off the main power supply or pulling the plug from the wall socket. -
Page 20: Night Mode
3.3.13 Night Mode (heating) To activate Night Mode (heating), first set the operational mode to heating and set the desired room temperature. Now press the T4 button. Ideally night mode is selected just as you go to bed. The heating setpoint is maintained for one hour. During the next two hours the heating setpoint is gradually lowered while the fan is run low speed. -
Page 21: Diagnostic Advice
Diagnostic Advice Some issues may not be problems at all. A perceived issue could be the unit operating as intended under the current conditions. These can be often be resolved by the user if they understand the unit’s operation. The following is a list of functional aspects of the unit which should not be interpreted as a problem: ... - Page 22 Startup Information Sheet for Maestro and Dolceclima Products Model #____________________ Serial #__________________________ Unit Owner_____________________ Phone #_____________________ Start Up Date________ Owner Address 1___________________________________Address 2_______________________ City or Province____________________________________ State______ Zip Code____________ Installing Contractor_________________________________________ Phone # _______________ Technician Name___________________________________________ Phone # _______________ Prior to Install verify model number to insure proper unit selection ...
- Page 23 LIMITED WARRANTY USA & CANADA Thank you for purchasing this Olimpia Splendid USA unit. This unit is covered by a limited 7 year compressor, a 2 year parts warranty and a 1 year limited unit replacement should the compressor fail within the first 12 months from date of startup.
