Summary of Contents for Olimpia splendid Maestro Pro Inverter 12 HP

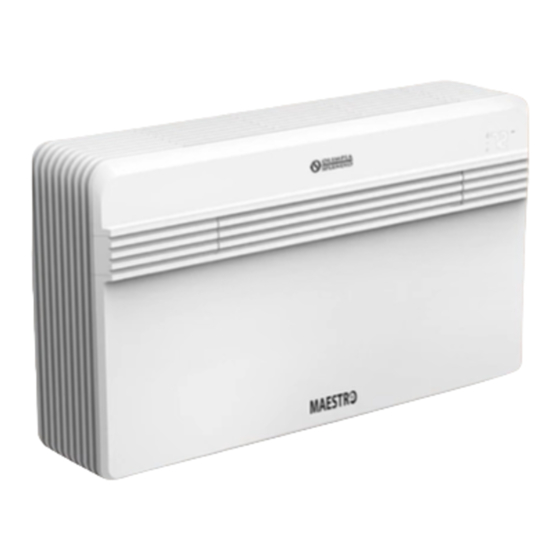

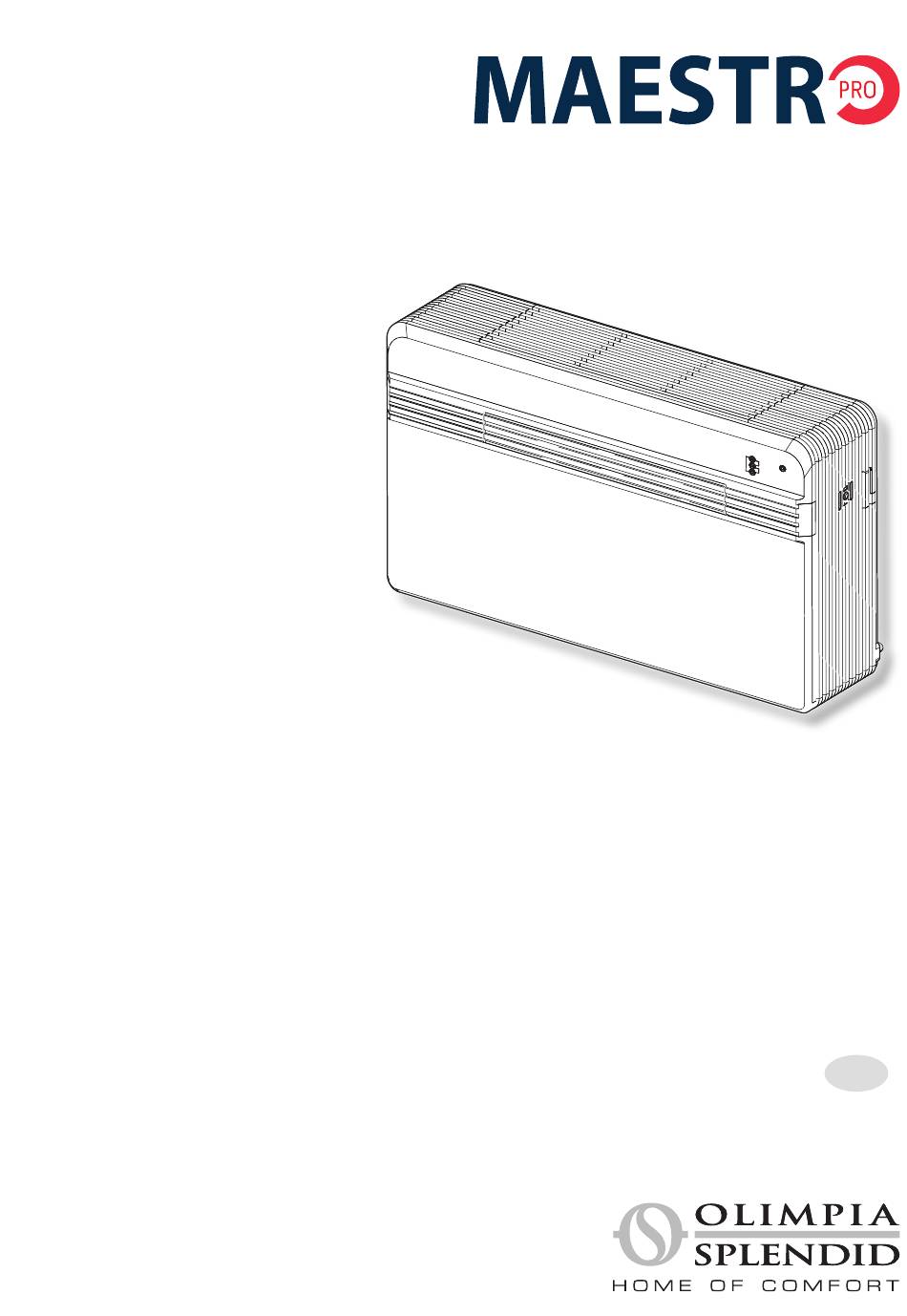

- Page 1 INVERTER 12HP Maestro Pro Inverter 12 HP with 2.0 kw electric heat Model # 02234 INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE...
- Page 2 0. The unit contains R-410A which is a fluorinated refrigerant. Installation must comply with current laws whether local, state or national. 1. The appliance may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capacities, or without the required experience or knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.
- Page 3 INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE DIRECTIVES D’INSTALLATION, D’UTILISATION ET D’ENTRETIEN INSTRUCCIONES DE INSTALACIÓN, USO Y MANTENIMIENTO...
- Page 4 min 60 2,4” 3,2” min 60 2,4” 4”...
- Page 5 ø8mm 3”...
- Page 6 12” ø202 8” ø162 6,5” 5,1” 3/4”...
- Page 7 ø 6 mm 1/4”...
- Page 11 26’...
- Page 12 min. 80 3,2”...
- Page 13 min. 5 L 5 qts...
-
Page 15: Table Of Contents
DRAWINGS The drawings are provided at the beginning of the manual TABLE OF CONTENTS 0 - WARNINGS ...............................2 0.1 - GENERAL INFORMATION ......................2 0.2 - SYMBOLS ............................2 0.2.1 - Editorial pictograms .........................2 0.3 - GENERAL INFORMATION ......................3 1 - DESCRIPTION OF UNIT ...........................5 1.1 - LIST OF SUPPLIED COMPONENTS ..................5 1.2 -... -
Page 16: Warnings
3.6.14 - Timer setting (PROGR. 1 and PROGR. 2) ..................19 3.6.15 - Timer activation and deactivation ....................20 3.6.16 - Resetting remote control functions....................20 3.6.17 - Operating the unit if the remote control is not available ..............20 3.7 - ENERGY SAVINGS ........................20 4 - MAINTENANCE AND CLEANING .......................21 4.1 - CLEANING ............................21... -
Page 17: General Information
0.3 - GENERAL INFORMATION 1. OLIMPIA SPLENDID would like to thank you for choosing our product. This product represents the state-of-the-art in-home air-conditioning technology and will provide the user with many years of indoor comfort. This manual is designed to provide you with the information needed to safely use the product. - Page 18 OR PERSONS CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL. 4. OLIMPIA SPLENDID reserves the right to modify at any time its models without changing the fundamental characteristics described in this manual. 5. The installation and maintenance of air-conditioners like this one may be hazardous as they contain a cooling gas under pressure as well as powered parts.
-
Page 19: Description Of Unit
3 days of receiving the unit. d. Send the same information by fax to OLIMPIA SPLENDID. e. No claims for damage will be accepted if made more than 3 days after the delivery of the goods. -
Page 20: Unit Components Description
OLIMPIA SPLENDID strongly encourages design practitioners to follow local and national codes for the unit location. We also recommend you apply the guidelines found in ACCA’s Manual J for residential load calculations and Manual S for proper equipment selection. -
Page 21: Choosing The Position Of The Unit
2.3 - CHOOSING THE POSITION OF THE UNIT To obtain the best operating performance and prevent faults or hazardous conditions, the position of indoor unit installation must meet the following requirements: Do not expose the unit to heat or steam sources (fig. 3). Make sure that the there is at least 2.4” (60mm) between the unit and the adjacent structures or flam- mable materials, both on the right and left side of the unit, and a space of at least 3.2” (80mm) above the unit (fig. 2). -
Page 22: Preparing The Condensate Discharge
Drill the foregoing holes tilted slightly downwards to prevent water from being fed back through the ducts (fig. 5). Most of the removed material is expelled outwards, therefore make sure that it does not hit any person or object when it falls out. In order to avoid as much as possible outer plaster breaking, it is necessary to proceed carefully with the last part of hole execution, decreasing pressure on core borers. -
Page 23: Assembly Of The Wall Sleeves And External Grilles
In winter with temperatures equal to or lower than 32ºF (0°C), make sure the condensate drain pipe is protected from freezing in order to ensure draining. In the event of prolonged operation during the winter with temperatures below 41ºF (5°C), install the optional basin heater kit. 2.4.3 - Assembly of the wall sleeves and external grilles •... -
Page 24: Positioning Of The Unit On The Mounting Brackets
2.4.5 - Positioning of the unit on the mounting brackets Using the two previously drilled holes (see fig.6), secure the mounting bracket (L) to the wall using the sup- plied wall archoring screws (H) (fig. 24). Check to ensure the mounting bracket is firmly anchored to the wall. Proceed as follows: After checking that the fixing bracket is well anchored to the wall (fig. 25). b. Raise the unit holding it by the sides of the lower base and hang it on the brackets (fig. 26, ref.L). Slightly tilt the lower part of the unit towards yourself to make it easier to hang the unit on the brackets. To make the electrical connection and fasten the condensate drain tube, place a wedge between the unit and the wall (see fig. 27). -
Page 25: Low/High Wall Installation Configuration
• A dedicated circuit is recommended, yet not mandatory unless required by local, state or national code. • Use a single outlet circuit only. To replace the power cord, proceed as follows: Raise the return air grille (3) and remove the two screws (3a) (fig.28). b. Extract the right (release using a screwdriver) and left (1a) doors of the front cover, then rotate the flap (1) and remove the three screws (1b) and the two screws (1c) (fig. 29). Remove the front cover (fig.30). d. Unscrew the two screws (X2) to remove the front cover of the switchgear (X1) (fig. 31). Unscrew the two screws (X4) to remove the top cover of the switchgear (X3) (fig. 32). -
Page 26: Energy Boost/System Dry Contact Input
2.6 - ENERGY BOOST/SYSTEM DRY CONTACT INPUT The input located on the terminal (Y2) of the main board (Y1) can be used to activate the functions ENERGY BOOST or SYSTEM ENABLE of the air conditioner (fig. 46). Configuration and use of the input ENERGY BOOST or SYSTEM ENABLE: Insert the plug in the power socket to power the air conditioner, then make sure the latter is switched to stand-by mode. -
Page 27: Unit Operation
3 - UNIT OPERATION 3.1 - WARNINGS The installation and electrical connections of the unit should be carried out by a service technician qualified as per local, state or national requirements. No structural object (furniture, curtains, plants, leaves, blinds, etc.) should ever obstruct the normal flow of air from either the internal or external gratings. -
Page 28: Control Panel Notifications
3.3 - CONTROL PANEL NOTIFICATIONS The unit on board display includes the notifications listed below. OPERATING CONDITIONS DISPLAY LED5 LED1 Stand-by Cooling mode 64-86°f /18-30°C BLUE Heating mode 61-86°f /16-30°C Dehumidification mode BLUE Ventilation mode Spa mode (auto mode) High fan speed Medium fan speed Low fan speed Automatic fan speed Timer enabled Filter dirty fault* Energy Boost contact opening (par. -
Page 29: Using The Remote Control
3.4 - USING THE REMOTE CONTROL The remote control allows the user to operate the unit in the most efficient way possible. Avoid the following: • Dropping or bumping it • Getting it wet or leaving it outside during inclement weather • The remote control operates by means of an infrared beam and requires line of sight with the units. -
Page 30: Description Of Remote Control
3.5 - DESCRIPTION OF REMOTE CONTROL The remote control is the interface between the unit and the end user, so it is very important to learn all its functions, the use of the various controls and the meaning of the symbols marked on it. 3.5.1 - Description of the remote control buttons Activation/deactivation (Stand-by) of the unit... -
Page 31: Description Of The Unit Functions
3.6 - DESCRIPTION OF THE UNIT FUNCTIONS 3.6.1 - Main on/off switch and unit operating modes • The unit is equipped with a power switch (10) positioned in the upper right corner under the door (7); the switch (10) must be positioned to “I” (fig. 38) in order to operate. Place switch in the “I”... -
Page 32: Operation In "Spa" Mode (Automatic)
3.6.7 - Operation in “Spa” mode • In this mode the unit’s temperature is regulated according to the room’s temperature. The fan speed is also regulated according to the temperature setpoint (except in dehumidification mode). • To activate this mode, press the B5 button on the remote control until the D5 symbol appears on the display. -
Page 33: Silent (Sleep) Button
3.6.11 - Silent (Sleep) button • To activate this mode, first select the desired operational mode and user setpoint. Then press the B3 button on the remote control. The D14 symbol will appear on the display). • The activation of Silent (Sleep) mode results in the following changes: - Gradual increase in the user selected temperature during cooling mode - Gradual decrease in the user selected temperature for heating (HP models only) - Reduction of the sound level - Reduction of fan speed... -
Page 34: Timer Activation And Deactivation
d. Use buttons B6 (+) and B7 (-) to increase or decrease the hour in which you wish the unit switches off. The length is selectable using the B6 (+) and B7 (-) button in increments of 30 minutes. Press button B9 (Set timer) again; symbol 2 (D9) and ON symbol (D10) appear on the display. -
Page 35: Maintenance And Cleaning
4 - MAINTENANCE AND CLEANING Before proceeding with any maintenance and cleaning, always make sure the system has been switched off, using the remote control, and the power supply plug has been disconnected from the system socket (or the upstream master isolating switch is positioned at “0”... -
Page 36: Maintenance
4.2 - MAINTENANCE If the unit will be unused for an extended period it is recommended that you unplug or de-energize the unit and remove the batteries from the remote control. 4.2.1 - Routine maintenance The unit requires periodic maintenance to ensure peak performance while using the lowest energy possible. The frequency of the required maintenance depends on the application and environment surrounding the unit. -
Page 37: Functional Aspects Of Alarms And Protections
• Should a blackout occur, alarm code 50 will appear. 4.3.3 - Console alarms If one of the following alarms on the unit control display persists for more than three minutes, please contact an Olimpia Splendid authorized service center. DISPLAY ALARM ALARM DESCRIPTION CODE... - Page 38 4.3.4 - Anomalies and remedies Malfunctioning Cause What must be done? The unit will not start. Current failure Wait for the current to be restored. The unit is disconnected from the Check that the plug is inserted in the current. wall socket.
- Page 39 Startup and Troubleshooting Data Sheet Model #__________________ Serial #_________________ Start Up Date__________ Unit Owner___________________ Phone #___________________________ Owner Address 1________________________ Address 2_______________________ City or Province__________________ State______ Zip Code______________ Installing Contractor_________________________ Phone # _______________ Technician Name___________________________ Phone # _______________ Prior to Install verify model number to insure proper unit selection Prior to Starting the unit verify Supply Voltage to the unit _______ Install batteries in Remote Control Start Unit to verify operation and record requested values below...
- Page 40 LIMITED WARRANTY USA & CANADA Thank you for purchasing this Olimpia Splendid USA unit. This unit is covered by a limited 7 year compres- sor, a 2 year parts warranty and a 1 year limited unit replacement should the compressor fail within the first 12 months from date of startup. The warranty periods mentioned above are only in valid if the unit is...
- Page 41 Contact Information: Olimpia Splendid USA 870 International Parkway Suite 120 Flower Mound, TX 75022 Phone: (800) 408-5196 Ext 103 Email: customerservice@olimpiasplendidusa.com...
