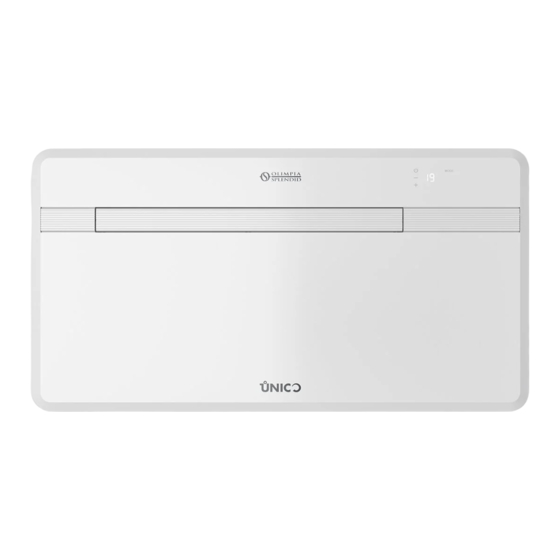

EVO
INSTRUCTION FOR USE AND MAINTENANCE
EN
Uwaga: ryzyko pożaru
Attenzione: rischio di incendio
Caution: risk of fire
Atenție: risc de incendiu
Uppmärksamhet:Det finns risk för brand
Attention : risque d'incendie
Figyelem: tűzveszély
Achtung: Brandrisiko
Atención: riesgo de incendio
Atenção: risco de incêndio
Let op: brandgevaar
Προσοχή: κίνδυνος πυρκαγιάς
Advertisement
Table of Contents
Related Manuals for Olimpia splendid UNICO EVO
Summary of Contents for Olimpia splendid UNICO EVO
- Page 1 INSTRUCTION FOR USE AND MAINTENANCE Uwaga: ryzyko pożaru Attenzione: rischio di incendio Caution: risk of fire Atenție: risc de incendiu Uppmärksamhet:Det finns risk för brand Attention : risque d'incendie Figyelem: tűzveszély Achtung: Brandrisiko Atención: riesgo de incendio Atenção: risco de incêndio Let op: brandgevaar Προσοχή: κίνδυνος...
-
Page 3: Table Of Contents
3.5.8 - Operation in “Heating” mode only .....................36 3.5.9 -Checking airflow direction ....................36 3.5.10 - Checking fan speed .....................36 3.5.11 - SILENT key .........................37 3.5.12 - Timer setting ........................37 3.5.13 - Timer and clock setting ....................38 EN - 1 UNICO EVO R290... - Page 4 3.5.14 - Timer setting (PROGR. 1 and PROGR. 2) (T2) ............38 3.5.15 - Timer activation and deactivation .................39 3.5.16 - Reset of all the remote controller functions ..............39 3.5.17 - Managing the unit if the remote control is not available ..........40 3.6 - RECOMMENDATIONS FOR ENERGY SAVINGS ..............40 FUNCTIONS AND ACCESSORIES ....................40 4.1 - WIFI ............................40...
-
Page 5: General Information
GENERIC DANGER It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage. EN - 3 UNICO EVO R290... - Page 6 DANGER Indicates that the appliance uses flammable refrigerant. If the refrigerant leaks and is exposed to an external ignition source, the risk of fire exist. DANGER DUE TO HEAT It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.
-
Page 7: General Warnings
1. This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID. Our machines are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way. - Page 8 10. Always wear gloves and protective goggles when performing any operations on the refrigerating side of the units. 11. Air conditioners must not be installed in places containing inflam- mable gasses, explosive gasses, or in very humid environments (laundries, greenhouses, etc.), or in places where there are ma- chines that generate very great heat. 12.
- Page 9 35. The appliance described in this manual is in compliance with the following European Regulations • ECODESIGN 2009/125/EC, 206/2012/EU • ENERGY LABELLING 2012/30/EU, 626/2011/EU and successive amendments. 36. Do not connect the unit electrically until installation is complete. EN - 7 UNICO EVO R290...
-
Page 10: Notes Regarding Natural Gases
0.4 - NOTES REGARDING NATURAL GASES • This climate control appliance contains natural gas. For specific information regarding the type and quantity of gas, refer to the data plate affixed to the unit. • The installation, assistance, maintenance and repair of the appli- ance, must be performed by a qualified certified technician. • Product removal and re-cycling operations must be performed by a qualified certified technician. • If the system has a leak-detection device installed, the checks for leaks must be performed at least every 12 months. - Page 11 The operation must be carried out safely to avoid the risk of pro- ducing sparks; • there are no live electrical components and that the cables are not exposed while loading, recovering or bleeding the system; • there is continuity in the ground connection. >>>>> EN - 9 UNICO EVO R290...
- Page 12 13. All electrical power supplies must be disconnected from the appli- ance on which you are working. If it is absolutely necessary that the appliance has electrical power supply, it is necessary to place a leak detector permanently operational in the most critical point. 14.
-
Page 13: Proper Use
• The climate controllers must not be installed in environments with the presence of inflammable gases, explosive gases, in very humid environments (laundries, greenhouses, etc.), or in places with other machines that generate a strong heat source, in proximity of a sources of salt water or sulphurous water. EN - 11 UNICO EVO R290... -
Page 14: Description Of The Appliance
Before beginning to assemble the unit, make sure all the parts are within easy reach. A. Appliance UNICO EVO T1. Remote control C. Use and maintenance book-... -
Page 15: Storage
Keep the packaging for at least the duration of the warranty period, for any shipments to the after-sales centre for repairs. Dispose of packaging in compliance with the regulations in force regarding waste disposal. EN - 13 UNICO EVO R290... -
Page 16: Appliance Components Description
A failure to implement the indicated standards, which may cause a malfunction of the appliances, relieves OLIMPIA SPLENDID from any form of warranty and from any liability for possible damages caused to people, animals or things. -
Page 17: Choosing The Position Of The Unit
The wall where the indoor unit is to be fixed, must be stable, strong and suitable to support the weight. It must be possible to leave room around the unit for any maintenance operations that may be necessary. min 60 min 60 EN - 15 UNICO EVO R290... - Page 18 Nothing should be in the way of the air that needs to circulate both on the top air-intake (curtains, plants, furniture) and at the front where the air exits. This could cause air swirls that would inhibit the working efficiency of the unit (fig. 3). Do not spray water or other liquids of any kind directly on the unit (fig.
-
Page 19: Unit Assembly
162 mm and 202 mm diameter. • It is possible to install the unit UNICO EVO instead of a unit UNICO SKY, UNICO STAR, UNICO SMART or UNICO INVERTER without modifying the already existing holes, exception made for the small condensation drain hole. - Page 20 • To drill the holes, proceed as follows: Place the supplied drill jig (M) against the wall observing the min- imum distances from the ceiling, the floor and from the side walls indicated on the jig itself which can be kept in the correct position using adhesive tape (Y) (fig.
-
Page 21: Preparing The Condensate Discharge
If the line empties into a sewerage system, install a siphon before the point in which the pipe reaches the main discharge, at least 300 mm below the inlet from the unit (fig. 8). EN - 19 UNICO EVO R290... -
Page 22: Assembly Of The Air Ducts And External Grids
• If the drainpipe drains into a vessel (tank or other container), this container should not be sealed and the drainpipe should not remain immersed in the water (see fig. 9). • The hole (J) through which the conden- sate pipe passes should always slope towards the outside (see fig. - Page 23 13. Fix the two flanges using 2 pegs having a diameter of 6 mm and check that the two fixing holes are horizontal (fig. 14 - 15 - 16). ø6mm EN - 21 UNICO EVO R290...
- Page 24 Fit the small eyelet of the spring, with the long stem, on the cap pin (on both components) (fig. 17). Insert the two caps (with spring), on the front part of the external grid, on its two housings, pulling until it clicks (fig.
-
Page 25: Preparing The Holes On The Machine
After checking: that the fixing bracket is well anchored to the wall, that the installation site has been prepared for electrical connection and condensation discharge (if necessary), it is possible to hook the air conditioner. EN - 23 UNICO EVO R290... - Page 26 Work as follows: Apply adhesive tape (A) to have refer- ences to the hooking points of the unit (fig. 22b). The tape can be removed once the unit has been hooked to the wall. Lift the air conditioner by holding it on the sides of the lower base and hook it to the bracket (L) (fig.
-
Page 27: Electric Hook-Up
To prevent any risk of electrocution, it is fundamental to disconnect the main power switch before carrying out electrical connections and any maintenance operation on the appliances. EN - 25 UNICO EVO R290... -
Page 28: Configurations Through The Control Panel
To replace the power cord, proceed as 3 3a follows: Raise the air intake grille (3) and remove the four screws (3a) (fig. 25a). Turn the flap (1) and remove the three screws (1b) (fig. 25b). Remove the cover (6). Unscrew the cable clamp (J1) and the cable locking screws of the clamp block (J2) (fig. -
Page 29: Configuration Of The Electronics For Low Or High Wall Installation
With value PI ≠ 0, the inlet works from ENERGY BOOST. Values <0 reduce the Tset in cooling, increasing machine power (for instance, if Tset=24°C and Energy boost = -3°C, the machine works as if the Tset is 21°C) EN - 27 UNICO EVO R290... -
Page 30: Input Setting Configuration
Values >0 increase the Tset in heating, increasing machine power (for instance, if Tset=24°C and Energy boost = 3°C, the machine works if the Tset is 27°C) To configure the appliance at the activation of one of the two functions, proceed as follows: Undo the screws (3a) and (1b) and remove the cover (6) of the appliance (fig. -
Page 31: Use
3.2 - DESCRIPTION OF THE WARNING PANEL In the top right part of the appliance are located some buttons and LEDs led whose functions are described below. EN - 29 UNICO EVO R290... - Page 32 Buttons Before carrying out the following operations, press one of the keys to enable the console. Desired temperature increase (maxi- mum settable value 30°C/86F). Desired temperature decrease. (minimum settable value in heating mode 16°C/61F, in cooling mode 18°C/64F). Activation/deactivation (Stand-by) of the air conditioner and selection of the fan speed.
-
Page 33: Use Of The Remote Control
• Electronic and fluorescent lights may also interfere with trans- missions between remote control and air-conditioner. • Remove the batteries in case of prolonged disuse of the remote control. EN - 31 UNICO EVO R290... -
Page 34: Insertion Of Batteries
• The remote control display goes off after a few seconds of non- use, to reactivate it press any key. 3.3.1 - I nsertion of batteries (fig. 31) To insert the batteries correctly: a. Remove the batteries compartment cover. b. Insert the batteries into the relevant compartment. -
Page 35: Location Of The Remote Controller
Display B10 Activation/deactivation of switching on of the display on board of the machine B11 Activation/deactivation of programs B12 Selection of the desired temperature unit °C / °F by pressing keys B7 si- multaneously EN - 33 UNICO EVO R290... -
Page 36: Description Of The Remote Control Display
3.4.2 - Description of the remote control display (Fig. 34) Indication of the fan speed or its au- tomatic operating mode (AUTO) Heating mode Cooling mode Dehumidification mode Desired temperature/clock/program- ming Night function (SILENT) Automatic function Program 1 Program 2 D10 Temperature/clock indicator D11 ECO function enabled D12 Minimum - average - maximum ventilation speed... -
Page 37: Operation In "Cooling" Mode Only
D1 (fan plus first notch) appears on the remote control display. 3.5.7 - Operation in “Comfort” mode only (Automatic) • In this mode, the machine’s temperature is automatically regulated according to the room’s temperature. The fan speed is also automatically regulated according to the set temperature (except in dehumidification mode). EN - 35 UNICO EVO R290... -
Page 38: Operation In "Heating" Mode Only
• To activate this mode, press the B4 key on the remote control several times until the D7 symbol appears on the display. .5.8 - Operation in “Heating” mode only • Using this mode, the appliance heats the room. This function is only available for the versions with heat pump (HP). •... -
Page 39: Silent Key
• Firstly, if it is desired to make use of these functions, set the correct time (see paragraph 3.5.13) and then set the timer as you prefer. EN - 37 UNICO EVO R290... -
Page 40: Timer And Clock Setting
3.5.13 - Timer and clock setting To set time, work with the remote control as fol- lows (fig.35): Press key B6 (SET TIMER) until when the hour indication h (D10) appears on the display Set the hour with keys B7 (+ and -) . Press the key B6 until when the minutes indication m (D10) appears on the display. -
Page 41: Timer Activation And Deactivation
By replacing the batteries or removing them even for a few moments, all the settings of the remote controller are reset. Doing this cancels all the time settings of the timer save in the remote controller and the remote controller restores all the factory settings. EN - 39 UNICO EVO R290... -
Page 42: Managing The Unit If The Remote Control Is Not Available
3.5.17 - Managing the unit if the remote control is not available In case of loss or malfunctioning of the remote controller or death of the batteries the air conditioner can be controlled by the keys on board of the machine. 3.6 - RECOMMENDATIONS FOR ENERGY SAVINGS Below find simple recommendations for reducing consumption: •... -
Page 43: Registration Of The App
To add a desired device, proceed as described: Click on “Add device” or “+” in the top right corner. Select the appliance UNICO EVO through the category in the list. Make sure the device is connected to the Wi-Fi network you want to use. -
Page 44: Accessories B1014 - B1012
Enter the password of the Wi-Fi network you are using, then press on “Next” to connect the device. Wait for connection of the appliance. If the connection fails, check that in the name of the Wi-Fi network and in the Password there are numbers and letters only (no special symbols);... -
Page 45: Maintenance And Cleaning
To ensure an efficient filtration of the internal air and a good operation of the air con- ditioner and good operation of the air conditioner, it is essential to periodically clean the air filter. The air filter is at the top of the unit. EN - 43 UNICO EVO R290... - Page 46 Filter extraction: Electrically disconnect the appliance. Switch off the unit and wait for the closure of the suction flap. Manually raise the air suction grille (3) (fig. 39). Raise the front part of the filter (F) and slightly pull it towards yourself (fig. 39). Extract the two additional filters (fig.
-
Page 47: Maintenance
(or the upstream master isolating switch is positioned at “0” OFF). EN - 45 UNICO EVO R290... -
Page 48: Diagnosis, Alarms And Inconveniences
Open the door (5) underneath the unit. Remove the cap (6a) after having placed a good-sized container underneath it (at least 5-liter capacity) to collect the water (fig. 43). After having cleared the fault, the service personnel will close the evacuation pipe. min. -
Page 49: Console Alarms
Current to the compressor protection External board AC voltage too high or too low protection External board AC current protection DC bus voltage too high or too low protection Driver board and display communication failure EN - 47 UNICO EVO R290... -
Page 50: Anomalies And Remedies
5.3.4 -Anomalies and remedies Malfunctioning Cause What must be done? The unit will not start. Current failure Wait for the current to be restored. The unit is disconnected Check that the plug is from the current. inserted in the wall socket. The fuse is interrupted or Replace the fuse or restore the thermal-magnetic circuit...
