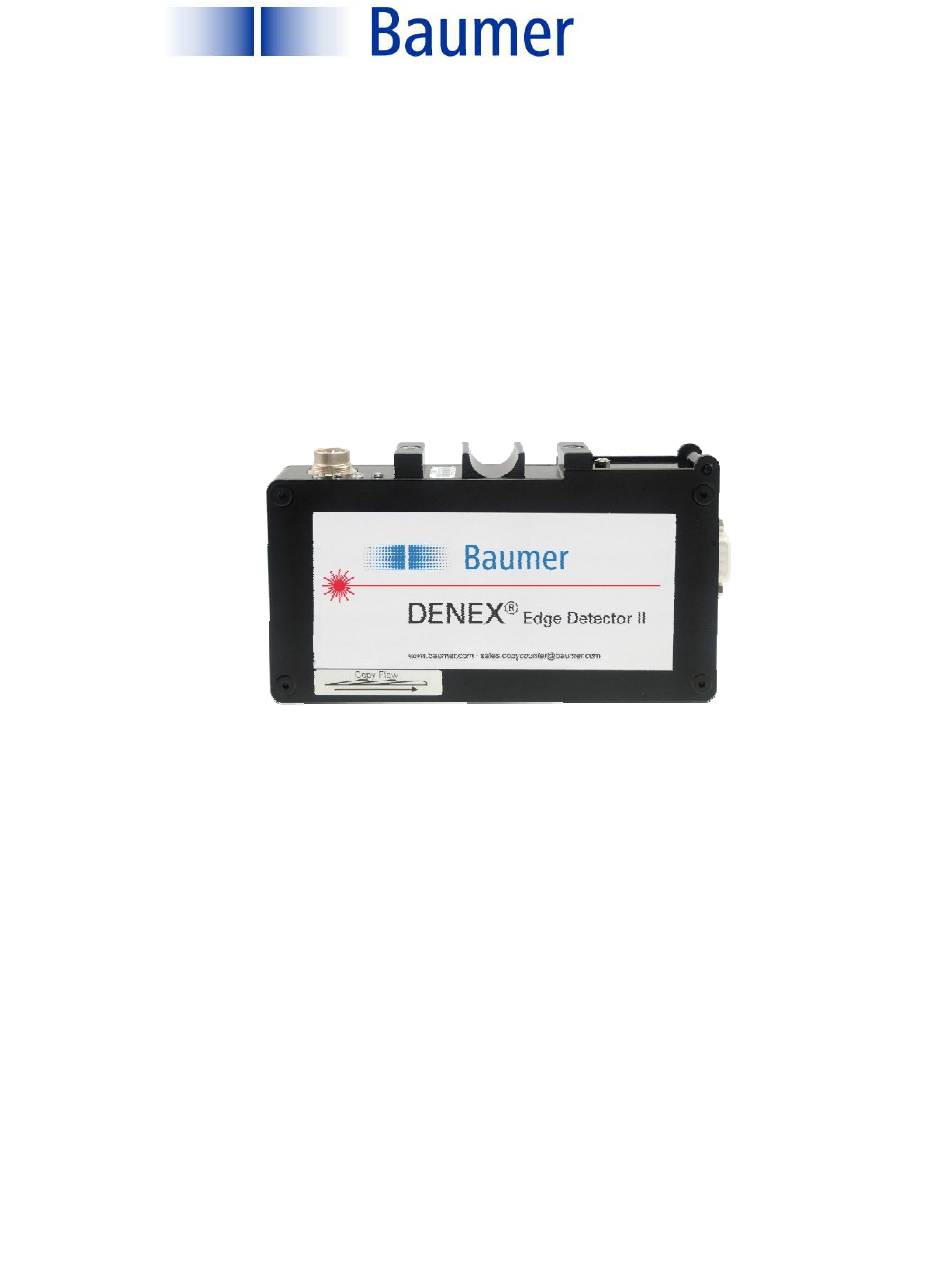

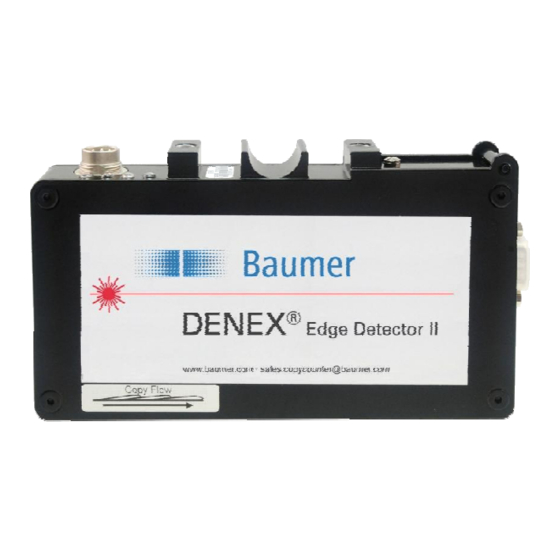

- Page 1 USER MANUAL FOR DENEX VERSIONS: 2010 ® DENEX Edge Detector II FLDM 180C1103/S42...
- Page 2 Do not stare into laser beam. The DENEX Edge Detector II must be applied, installed, adjusted, and maintained only by qualified personnel who are familiar with the operation of the unit and its associated components.
-
Page 3: Table Of Contents
LASER SAFETY ____________________________________________________ 12 TROUBLESHOOTING _______________________________________________ 13 Maintenance at Regular Intervals _______________________________________ 14 RETURNING EQUIPMENT _________________________________________ 15 WARRANTY ______________________________________________________ 15 APPENDIX _______________________________________________________ 16 Supplements _____________________________________________________ 17 User Manual DENEX Edge Detector II 3/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland... -
Page 4: Receiving And Handling
1 Installation Manual BASIC FUNCTION The DENEX Edge Detector II is a non-contact sensor, which counts all kinds of printed products on an overlapped stream. It senses the leading edge and generates one output pulse for every product. Product thickness from a single folded sheet up to a maximum stream thickness of 70 mm can be sensed without adjustments. -
Page 5: Installation
INSTALLATION General Precautions The DENEX Edge Detector II should be installed in an environment where: 1. The equipment ambient temperature does not exceed 40º C. 2. The equipment atmosphere is free from highly flammable or combustible vapors, corrosive chemical flumes, oil vapor, steam, excessive moisture and particles. -
Page 6: Electrical Installation
“DIP-Switch Settings” The specification for the output opto-coupler is as follows: Max load current: 100 mA Max voltage: 35VDC User Manual DENEX Edge Detector II 6/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland... - Page 7 Figure 3.3.2.1.1 Electrical connection, common 24V-supply. Current source (PNP). Figure 3.3.2.1.2 Electrical connection, common 24V-supply. Current sink (NPN). Copy Sensor Figure 3.3.2.1.3 Electrical connection, separate supply for power and pulse. User Manual DENEX Edge Detector II 7/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com...
-
Page 8: Software Functions
Mode 11. Our general recommendation is to try to adjust the machinery and get correct stream conditions, so the lap distance between each copy becomes equal. User Manual DENEX Edge Detector II 8/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com... -
Page 9: Dip-Switch Settings
Mode 11 reserved Laser power save mode is activated in all Counting/newspaper modes. This means the laser power will be reduced to 50% after a 60 seconds gap. User Manual DENEX Edge Detector II 9/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com... -
Page 10: Led Indicators
If the laser levels are outside of the allowed limits, the sensor must be sent for repair. The OUTPUT-LED The OUTPUT-LED is active when the output stage is active (set). The LED will flash for every output pulse. User Manual DENEX Edge Detector II 10/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com... -
Page 11: Technical Specifications
Power 24 VDC, 150 mA typical Temp. Range +10 to 40ºC 50 to 104ºF DENEX Edge Detector II is a Class II Laser Product. User Manual DENEX Edge Detector II 11/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland... -
Page 12: Accessories
LASER SAFETY A Class II-laser product as the DENEX Edge Detector II is said to be safe if a person does not stare into the beam. If a person accidentally would look into the laser, the strong light would cause the eyes to shut automatically before any damage to the eyes could occur. If the following precautions are followed, nothing can happen. -
Page 13: Troubleshooting
If the surface of the product is wavy, try tilting the sensor 5 - 10° according to figure below. • If there is a stitch or something near the edge, try a longer blocking or output pulse, see chapter 4, ”DIP-SWITCH SETTINGS” User Manual DENEX Edge Detector II 13/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com... -
Page 14: Maintenance At Regular Intervals
• Clean the glass aperture with alcohol to remove ink dust. • Remove any loose pieces of paper that can produce false counts • Check that the target plate is still mounted the way it should be User Manual DENEX Edge Detector II 14/20 Baumer Electric AG Version 2013-02, V1.6... -
Page 15: Returning Equipment
10 RETURNING EQUIPMENT If it is necessary to return a DENEX Edge Detector II for service, the following procedure should be followed. 1. Tag the unit with the following: • Company and contact person returning the item • Phone, fax or email to the contact person for additional information •... -
Page 16: Appendix
12 APPENDIX Size Diagram with Laser Beam Projection User Manual DENEX Edge Detector II 16/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland... -
Page 17: Supplements
13 Supplements User Manual DENEX Edge Detector II 17/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland... - Page 18 User Manual DENEX Edge Detector II 18/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland...
- Page 19 User Manual DENEX Edge Detector II 19/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland...
- Page 20 CH - 8500 Frauenfeld Phone +41 (0) 527281122 Fax +41 (0) 527281110 sales.copycounter@baumer.com www.baumer.com Technical data subject to change Printed in Switzerland No. 11084088 User Manual DENEX Edge Detector II 20/20 Baumer Electric AG Version 2013-02, V1.6 www.baumer.com Frauenfeld, Switzerland...
