5

LED INDICATORS

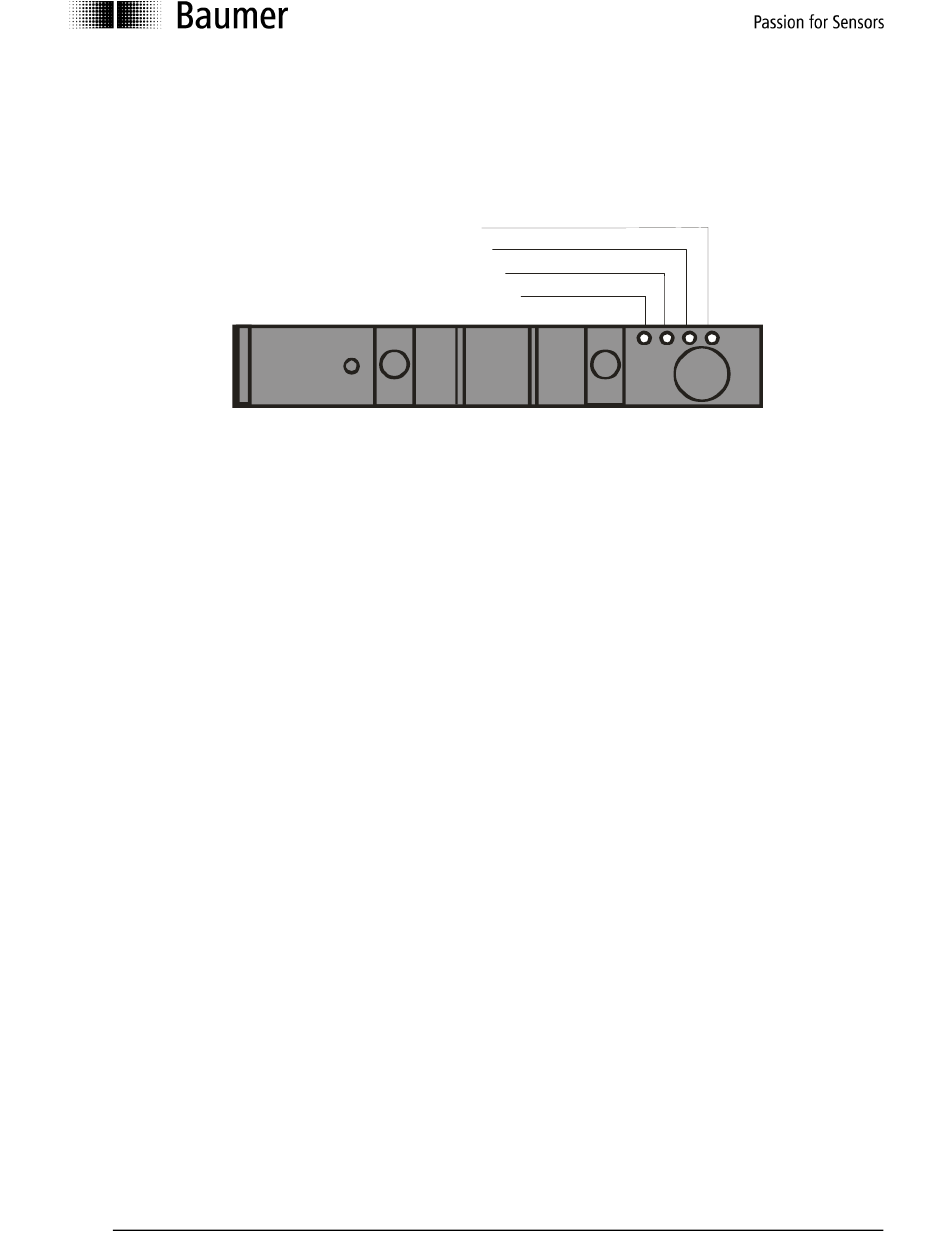

There are four LED's that are placed close to the connector.
5.1

The POWER-LED

The green POWER-LED indicates that the sensor has power and should be operating.
For laser safety reasons never mount or adjust the sensor when Power-LED is on!
5.2

The LASER OFF-LED

The LASER OFF-LED is an indication that the laser is off. The laser will be shut off for the
following reasons:
• The laser power has exceeded the allowed limits (electronic problem inside sensor)
• The laser power has reached lower than acceptable level (laser is worn out, or
electronic problem)
If the laser levels are outside of the allowed limits, the sensor must be sent for repair.
5.3

The OUTPUT-LED

The OUTPUT-LED is active when the output stage is active (set). The LED will flash for
every output pulse.
User Manual DENEX Edge Detector II
Version 2013-02, V1.6
Power (Green)
Laser off (Red)
Output (Orange)
Not used ( ellow) Y
10/20
