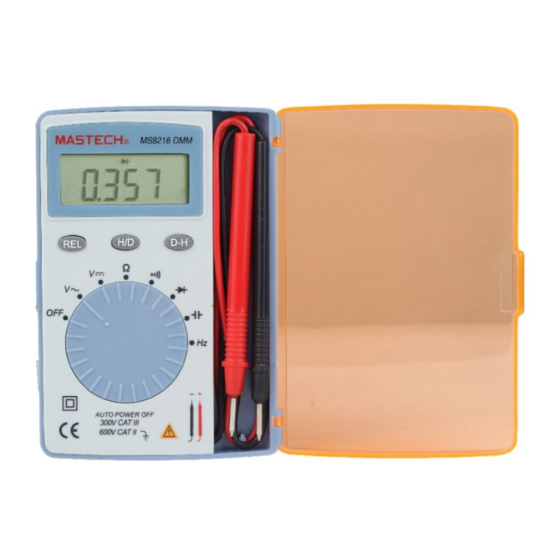

- Page 1 Pocket Digital Multimeter User’s Manual CAT III CAT II 300 V 600 V...
-
Page 2: Table Of Contents
Pocket Digital Multimeter Pocket Digital Multimeter CONTENTS 1. Safety information 1. Safety information Warning 1.1 Preliminary To ensure safe operation, and in order to exploit to 1.2 During use the full functionality of the meter, please follow 1.3 Symbols the directions in this section carefully. 1.4 Maintenance 2. -
Page 3: During Use
Pocket Digital Multimeter Pocket Digital Multimeter 1.2 During use 1.3 Symbols 1.2.1 Never exceed the protection limit values indicated Note-Important safety information, refer to the in specifications for each range of measurement. instruction manual. 1.2.2 When the meter is linked to a measurement circuit, Application around and removal from UNINSULATED do not touch unused terminals. -
Page 4: Description
Pocket Digital Multimeter Pocket Digital Multimeter when the meter is not in use. 2.2 Function and range selector 1.4.5 If the meter is to be stored for a long period of - This meter is a portable professional measuring time, the batteries should be removed to prevent instrument with perfect LCD. -
Page 5: Electrical Specifications
Pocket Digital Multimeter Pocket Digital Multimeter 3.1.17 Storage Temperature: -10°C to 50°C - Max. Input Voltage: 600V DC or rms AC (10°F to 122°F) - Frequency Range: 40 to 1kHz 3.1.18 Dimension: 110×76×11mm - Response: Average, calibrated in rms of sine wave 3.1.19 Weight: approximate 100g (including battery) NOTE: At the little voltage range, the meter will show unsteady... - Page 6 Pocket Digital Multimeter Pocket Digital Multimeter 3.2.5 Frequency measurement) Overload protection: 250V DC or rms AC Range Resolution Accuracy Frequency Response: 0 ~ 200kHz ±(2.0% of rdg + 5digits) 9.999Hz 0.001Hz - By V range: ±(1.5% of rdg + 5digits) 99.99Hz 0.01Hz Input Voltage range: 0.5V –...
-
Page 7: Operating Instruction
Pocket Digital Multimeter Pocket Digital Multimeter 4. Operating instruction down any button of "H-D”, “REL”, “H/D”, meter will recover the working condition. 4.1 Data hold If you need data hold when measuring, you can put on 4.5 Preparation for measurement “H-D”;... -
Page 8: Measuring Resistance
Pocket Digital Multimeter Pocket Digital Multimeter NOTE: NOTE: 1. “ ” means you can’t input the voltage which more 1. It takes certain time (200μF range 30 seconds) to than 600V DC or 600V rms AC, it’s possible to show steady the reading when measuring high capacity. -
Page 9: Continuity Test
Pocket Digital Multimeter Pocket Digital Multimeter 2.If the lead connection is reversed, only figure‘0L’will 5.1.4 Put the battery cover back and fix it again to its origin form. be displayed. Note: Do not reverse the polarity of the batteries. 4.13 Continuity test 4.13.1 Set the transform switch at the range position. - Page 10 00-05-0918...
