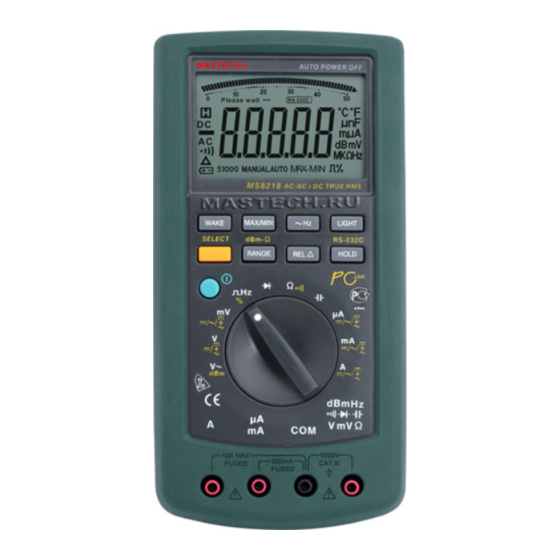

Mastech MS8218 Instruction Manual
Hide thumbs Also See for MS8218:

Advertisement

Chapter 1
Safety Information
Meter Safety Standards................................................................................................................
Warning..................................................................................................................................
Limited Guarantee and the Liability Range.........................................................................................
Chapter 2
Introduction to the Meter
Characteristics...........................................................................................................................
Explanation on Front Panel............................................................................................................
Understanding Display Screen........................................................................................................
Function Descriptions..................................................................................................................
Chapter 3
Operation Methods
ACV/dBm Measurement...............................................................................................................
DCV/DCV+ACV Measurement......................................................................................................
DC mV/AC mV /DC mV+AC mV Measurement..................................................................................
Logic Frequency/Duty Ratio Measurement.........................................................................................
Diode Measurement....................................................................................................................
Resistance/continuity Measurement.................................................................................................
Capacitance Measurement............................................................................................................
μ
μ
DC
A /AC
A /DC
Contents
μ
μ
A +AC
A Measurement...........................................................................
MS8218 True RMS Multimeter
Contents
1
1
2
3
4
8
11
14
16
18
20
22
24
26
28
I
