1. Pull the required cables through the NPT conduit pipe.
2. Apply thread seal tape to the pipe and screw on the 1-1/2" NPT female to NPT female pipe adapter.
3. Screw the lock nut onto the NPT adapter.
4. Apply thread seal tape to the NPT adapter and screw it into the pipe adapter.

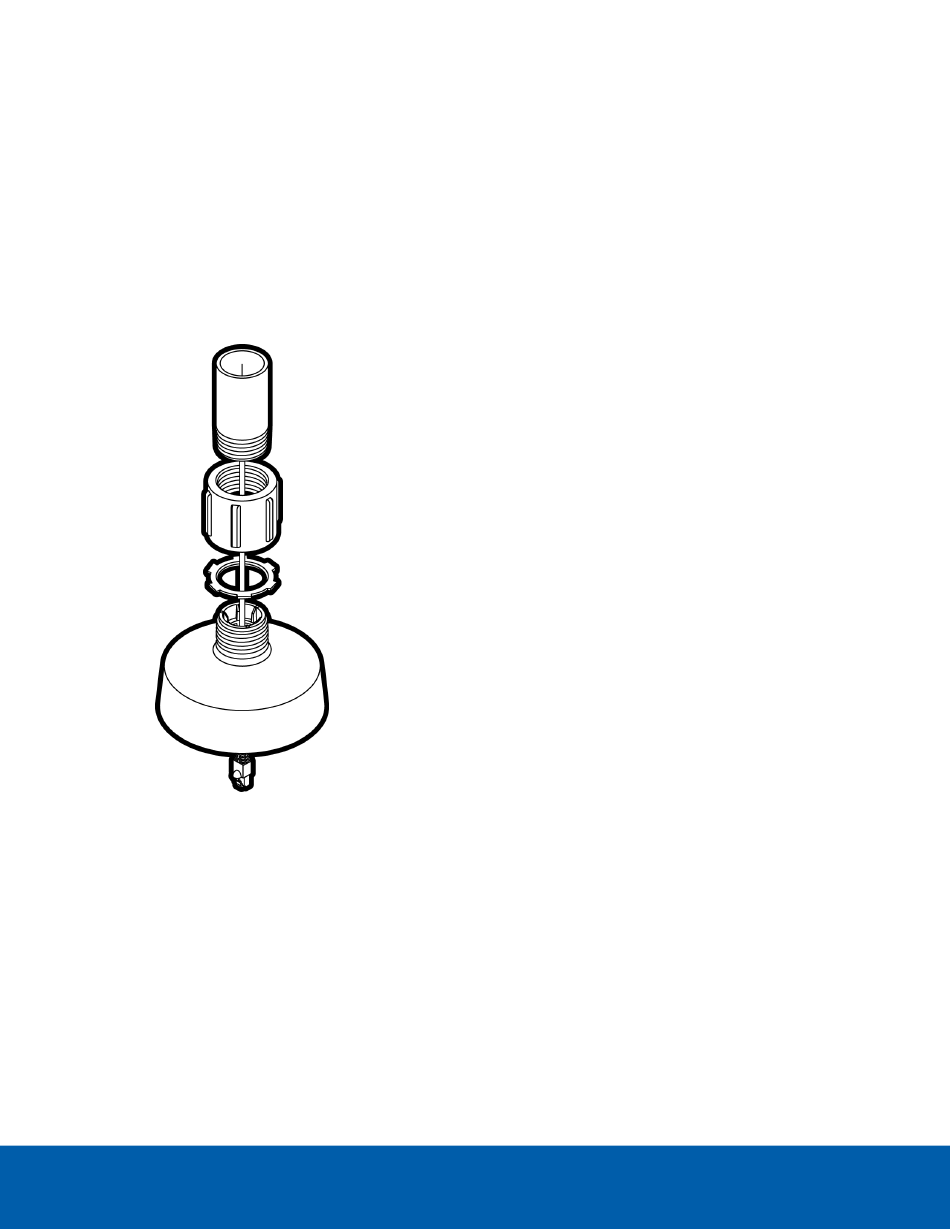

Make sure the parts are assembled in this order from NPT conduit pipe to camera adapter:
a. NPT conduit pipe
b. 1-1/2" NPT female to female pipe adapter
c. Lock nut
d. NPT adapter

(Optional) Mounting the Dome Camera to the Pendant Wall Mount

If the dome camera will be using the pendant wall mount, you will need to install the NPT adapter as well.
1. Determine where the cables will enter the pendant wall mount.
If the cables will be pulled from inside the mounting surface, use the cable entry hole at the
l
rear of the pendant wall mount.
If the cables will be coming out of an external conduit pipe, use the 3/4" NPT pipe entry hole
l
on the bottom of the pendant wall mount.
(Optional) Mounting the Dome Camera to the Pendant Wall Mount
32
