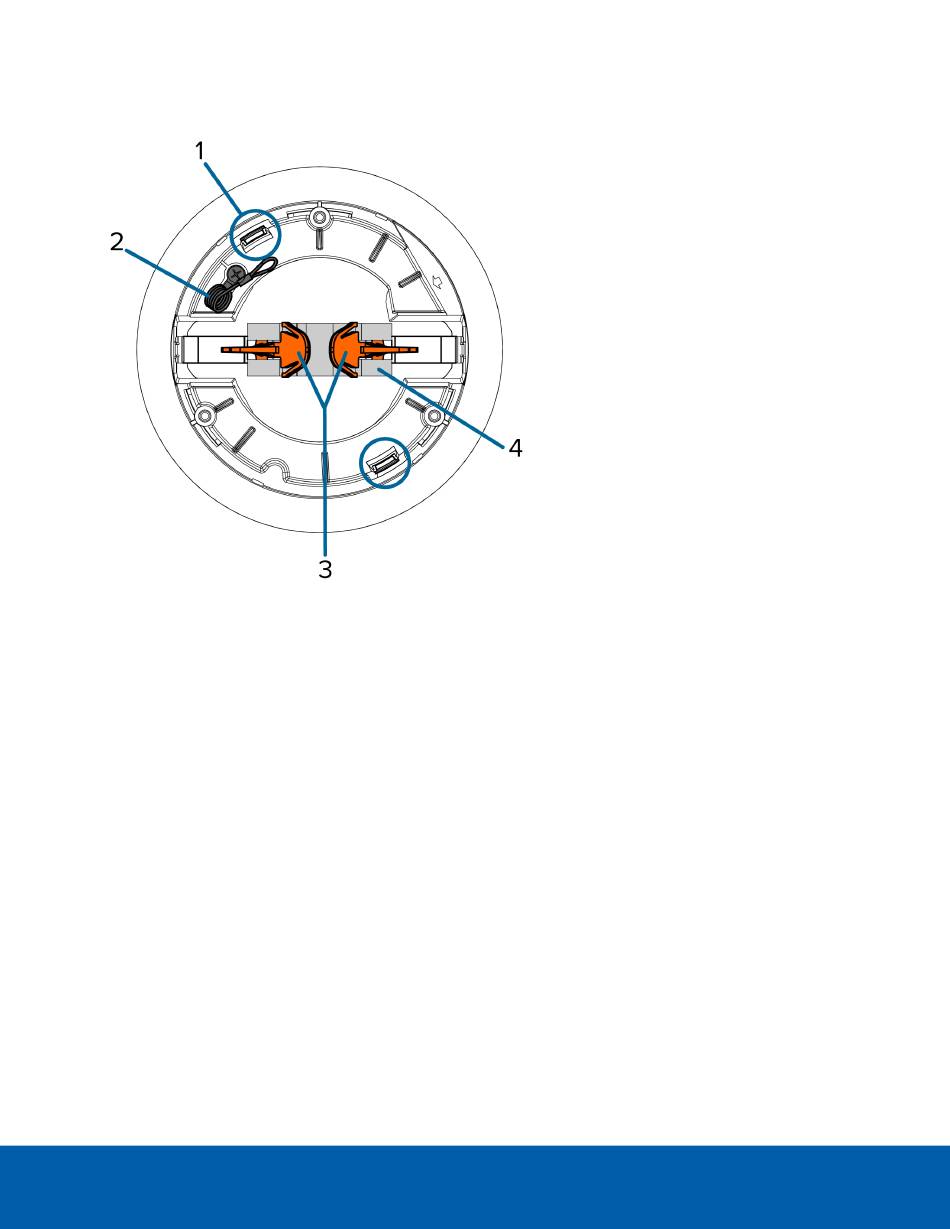

Mounting Adapter View, In-Ceiling Mount

1. Camera housing clips
Snaps to hold camera module during installation.
2. Lanyard
Connects to the lanyard anchor on the camera base.
3. Clamps
Manually adjustable clamps for securing the dome camera to the ceiling.
4. Clamp retainer
Used to hold the clamps together before installation.
Mounting Adapter View, In-Ceiling Mount
7
