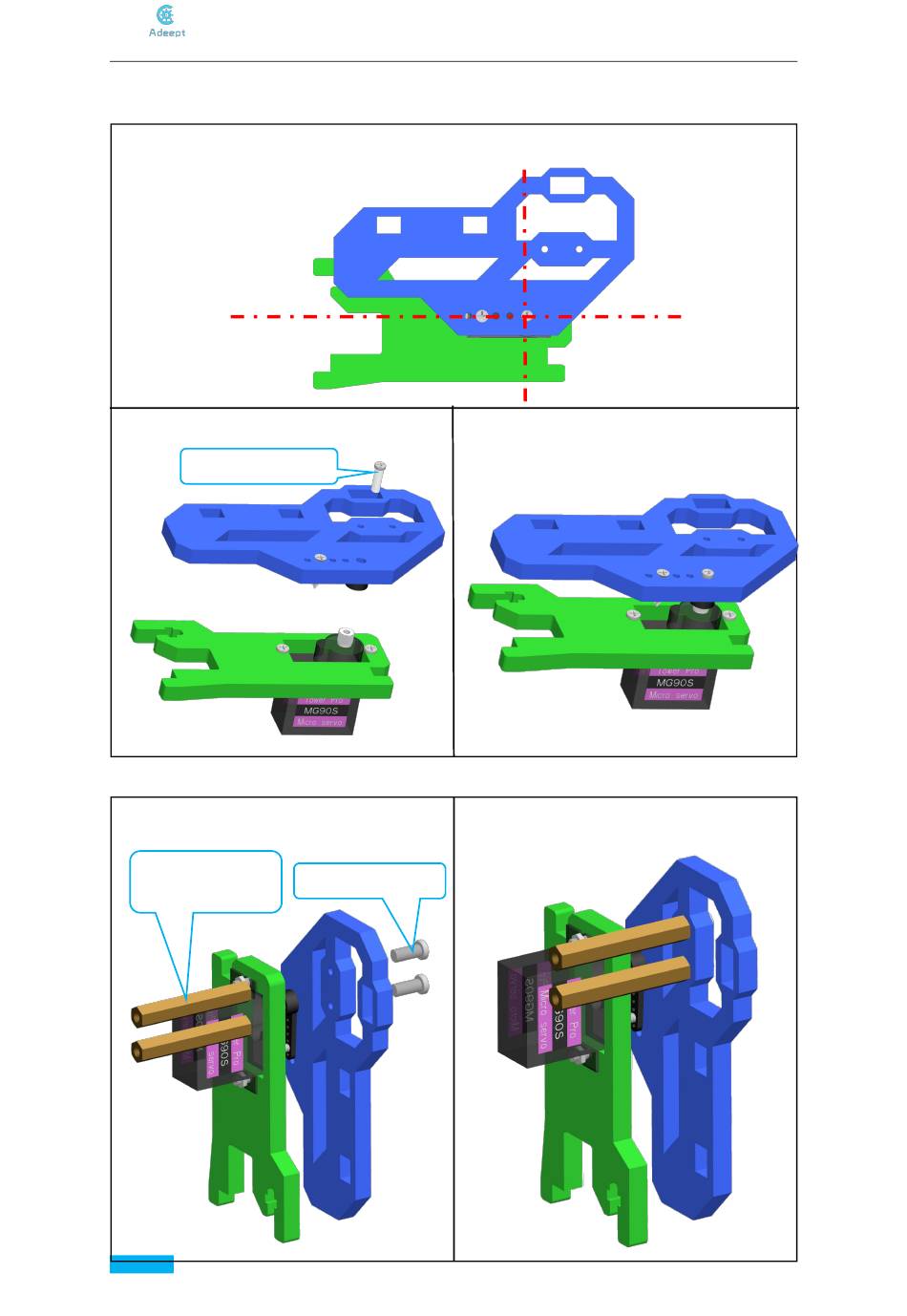

16. Fix the rocker arm on A09 to the servo on A05.
Buckle the rocker arm into the servo at the angle shown in the figure below.
Assemble the following components
Effect diagram after assembling
M2.5*8 Screw x1
17. Fix two M3*35 Copper Standoffs on A09.
Assemble the following components Effect diagram after assembling
M3*35 Copper
M3*8 Screw x2
Standoff x2
