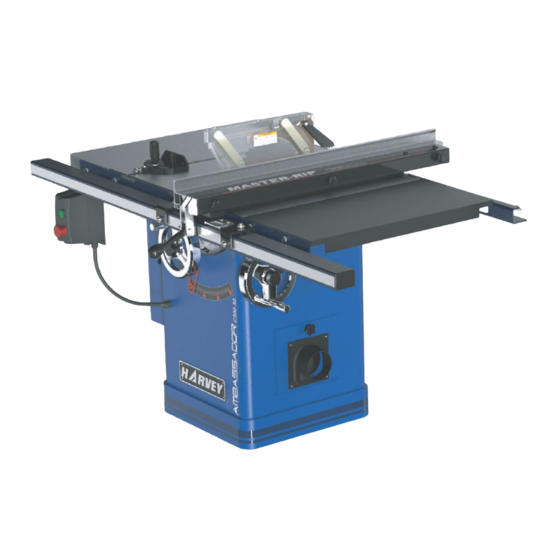

HARVEY C300-30 Operating Instructions Manual

Tilting arbor table saw
Hide thumbs Also See for C300-30:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C300-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HARVEY C300-30

Summary of Contents for HARVEY C300-30

  • Page 2: Table Of Contents

    Contents 1. Foreword............................... 1 2. Warranty Information.........................1 3. Machine Description.......................... 2 3.1 Technical Parameters......................... 2 3.2 Feature Identification........................3 3.3 Optional Equipment........................3 3.4 Intended Use..........................4 3.5 Electrical Power Requirements....................4 4. Safety Regulations..........................5 4.1. General Safety Instructions.......................5 4.2. Table Saw Safety Instructions....................5 4.3.

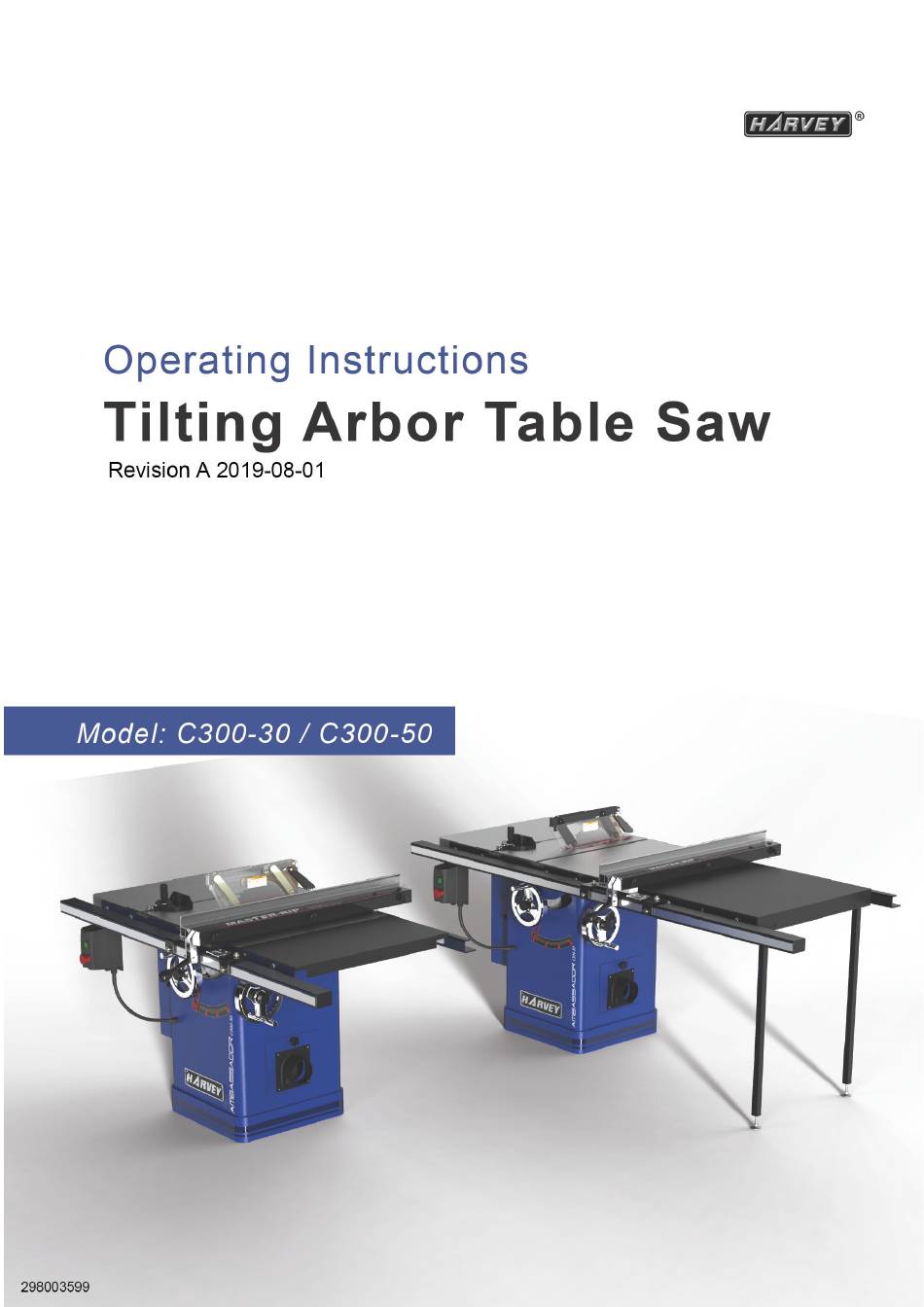

  • Page 3: Foreword

    1. Foreword 2. Warranty Information This manual contains basic information Limited Warranty qualified operators and describes the normal Two year. usage this machine typical shop Proof of Purchase environment. Please keep your dated proof of purchase for This machine is equipped with various safety warranty and servicing purposes.

  • Page 4: Machine Description

    3. Machine Description 3.1 Technical Parameters Item C300-30 C300-50 Net Weight 550Ibs (260 Kg) 590Ibs (270 Kg) 66"×44"×40" 86"×44"×40" Product dimensions Length/width/height 1582x1100x1016 mm 2090x1100x1016 mm Foot print(length/width) 20"×20" (500 x 508 mm) Electrical magnetic with thermal overload protection Switch...

  • Page 5: Feature Identification

    3.2 Feature Identification 3.3 Optional Equipment Fig. 1. Refer to Sliding table Model: ST-1400S Fig. 1-1 Universal Overhead Guard Fig. 1 Model: S-12S Left Extension Wing Miter Gauge Fig. 1-2 Blade Guard Main Table Right Extension Wing Fence Router Table Extension Table Model: RT-100 Rear Rail...

  • Page 6: Intended Use

    3.4 Intended Use This table saw and the workpiece guide equipment supplied with it are intended to be used exclusively The machine is prohibited from being used in a for the following purposes: potentially explosive atmosphere! Laminated and unlaminated board materials (e.g. ●...

  • Page 7: Safety Regulations

    4. Safety Regulations 14. DISCONNECT MACHINES. Before servicing, when changing accessories or attachments; 4.1 General Safety Instructions 15. AVOID ACCIDENTAL STARTING. 1. KNOW YOUR MACHINE. Make sure the switch is in the “OFF” position Read and understand the owners manual and before plugging in;...

  • Page 8: Residual Risks

    5. STAND TO THE SIDE WHEN FEEDING 17. CHECK MATERIAL. Periodically check the brake function to make sure Never stand or have any part of your body in line the completed stop time of the saw blade is less with the path of the saw blade; than 10 seconds.

  • Page 9: Installation Of The Machine

    5. Installation of the Machine 5.2 Unpacking Your machine was carefully packaged for safe 5.1 Transportation of Machines transportation. Remove the packaging materials from around your machine and inspect it. If you 5.1.1 Transportation and store discover that the machine is damaged, please This machine has been well packaged and rust immediately call Customer Service for advice.

  • Page 10: Contents

    Main machine box contents: (Fig. 4-1-----Fig. 4-5) A. Main table saw unit……..………..………1 B. Motor cover……….……..………..………1 C. Extension wings……..………………2 D1.Extension table (width 340mm..……1 (Only for C300-30) D2.Extension table (width 845 mm)……..…1 Fig. 4-2 (Only for C300-50) E. Support legs…….………………………..2 F. Saw blade…………………………………1 G.

  • Page 11: Safety Measures Before Installation

    Fence box contents:(Fig. 4-6) Rail box contents:(Fig. 4-7) A. Fence body…..…..………………..……1 Only for C300-30 B. Fence………………………………..…..1 A. Rear rail (30”)………..……………..……1 B. Front rail (30”)……….…………..………1 C. Front rail rectangular tube (30”)…...…1 D. Front rail tape scale (30”)……….…….…1 Fig. 4-6 Fig. 4-7 Rail box contents:(Fig.

  • Page 12: Installation

    5.5 Installation 5.5.3 Hand wheel handle installation Before beginning assembly, take note of the Install the handle into the Blade Tilt hand wheel as following precautions and suggestions. The machine is bolted to the pallet. Before shown in Fig. 6. attempting any of the assembly procedures, remove all of the loose parts and hardware from the pallet.
  • Page 13 3. Checking fence parallelism 5.5.5 Install the rail & fence Refer to Fig. 10. 1. Install the rear rail , front rail, tube, (extension ----Slide the fence along the rail , if it drags across table) breakdown, Before tightening the table, then adjust the foot at the rear of the fasteners, check to make sure the top edge of the fence to raise the fence off of the table just enough, rear rail is flush with the lowest edge of both...
  • Page 14 fence tube, make sure it is parallel with the tube, 5.5.8 Install the blade guard and the “0” end is directly under the red line on the pointer window as shown; lightly mark the “0” 1. Reinstall the table insert, slide the knurled knob location on the tube with a pencil, then remove the out (refer to Fig.
  • Page 15 4. Place a straightedge against the blade and the 3. The highest point of the riving knife must be set spreader. When properly aligned, beneath the topmost teeth. spreader/riving knife will be in the "alignment 5.5.9 Extraction system zone," refer to Fig. 16, and will be parallel with the blade.
  • Page 16 5.5.10 Electrical installation ELECTRICAL DIAGRAM Wiring should only be done by professional electricians. Always make sure the machine is properly grounded. All wiring in the cabinet should be protected against direct contact least IP2X (IP:Ingress Protection) when finishing the electrical installation. All exposed conductive parts should be connected to the protective ground circuit.

  • Page 17: Adjustment

    amount, make sure the fence remains parallel with 6. Adjustment the table T-slot. Retighten the lock nuts. 3. To set the fence perpendicular to the table, place Before operation, the machine should be a square on the table and against the side of the carefully adjusted for the best performance.

  • Page 18: Aligning Table T-Slot Parallel With The Blade

    6.3 Aligning the Table T-slot Parallel with 6.4 Adjusting 45°and 90°Positive Stops The blade tilting mechanism of your saw is the Blade equipped with a positive stop at 45 and 90 degrees. To check and adjust these positive stops, proceed 1.

  • Page 19: Aligning Blade Guard Splitter Or Riving Knife With The Blade

    6.5 Aligning Blade Guard Splitter or Riving Knife with Blade The blade guard splitter and/or riving knife must be aligned with the blade. If not properly aligned, the splitter/riving knife will force workpiece sideways during the cut, increasing the risk of kickback. Place a straightedge against the blade and the splitter or riving knife and check for parallelism.

  • Page 20: Operations

    7.4 Crosscutting 7. Operations Crosscutting requires the use of the miter gauge to 7.1 Electrical Operation position and guide the work. Place the work against the miter gauge and advance both the Refer to Fig. 27 miter gauge and work toward the saw blade. The miter gauge may be used in either table slot, “ON”...

  • Page 21: Maintenance

    8. Maintenance This table saw requires very little maintenance CHANGING BELTS other than minor lubrication and cleaning. The WARNING: MAKE SURE THE POWER CORD IS following sections detail what will need to be done DISCONNECTED FROM THE POWER SOURCE! in order to assure continued operation of your saw. 1.

  • Page 22: Trouble Shooting

    Trouble Shooting PROBLEM SOLUTION SAW WILL NOT START 1. Saw not plugged in. 1. Plug in saw. 2. Fuse blown or circuit breaker tripped. 2. Replace fuse or reset circuit breaker. 3. Cord damaged. 3. Have cord replaced by a certified electrician. OVERLOAD KICKS OUT FREQUENTLY 1.

  • Page 23: Exploded View And Parts List

    10. Exploded View and Parts List Table Saw Body Exploded View...
  • Page 24 Body Assembly Parts List REF# DESCRIPTION REF# DESCRIPTION Cabinet Table insert Cap screw M10x25 Set screw M5x12 Lock washer 10 Pan HD screw M5*16 Flat washer 10 Pan HD screw M5*20 Scale Lock nut 5 Rivet nut M6x13.5 Dado insert Bottom plate Pan HD screw M5*12...
  • Page 25 Trunnion Assembly Exploded View...
  • Page 26 Trunnion Assembly Parts List REF# DESCRIPTION REF# DESCRIPTION Lock knob Hex bolt M10x45 Wheel Lock washer 10 Set screw M5x12 Flat washer 10 Point 1 Arbor nut Set screw M5x6 Arbor flange Point 2 Set screw M5x12 Pan HD screw M6x12 Arbor Lock washer 6 Key 5x30...
  • Page 27 Blade Guard Exploded View REF# DESCRIPTION REF# DESCRIPTION Roll pin 4×18 Hex bolt M4×8 Torsion spring guard support Lock nut M6-1 Pan HD screw M6×30 Support arm Spacer Pan HD screw M6-1×25 Spacer Flat big washer 6mm Pan HD screw M5×22 Top guard Flat big washer 5mm Pan HD screw M4×6...
  • Page 28 Miter Gauge Exploded View REF# DESCRIPTION REF# DESCRIPTION Miter bar Button HD screw M4x10 Miter ring Pointer miter gauge Flat HD screw M5x8 Flat washer 4 Miter body pivot pin Lock washer 4 Miter gauge body Pan HD screw M4x6 Miter stop pin knob Miter knob Miter stop pin block...
  • Page 29 Fence Exploded View REF# DESCRIPTION REF# DESCRIPTION Fence insert Lock nut M10 Cam foot Magnet Glide pad Fence scale window Fence lock knob Set screw M12x15 Set screw M12*30 Pan HD screw M5x10 Lock washer 5 Indicator Knob M6 Locking nut M12-1.75 Big washer 6 Set screw T-bolt...
  • Page 30 30″Rail & Extension Table Exploded View REF# DESCRIPTION REF# DESCRIPTION Tube cover Lock washer 8 Guide tube (30") Flat washer 8 Scale (30") Rear rail (30") Front rail (30") Hex bolt M8x40 Cap screw M6*16 Nut 8 Lock washer 6 Extension table (30") Flat washer 6 Hex bolt M8x30...
  • Page 31 50″Rail & Extension Table Exploded View REF# DESCRIPTION REF# DESCRIPTION Tube cover Foot Cap screw M6*16 Hex bolt M8x60 Lock washer 6 Cap screw M8x20 Flat washer 6 Support leg Hex bolt 5/16-18x1-1/2 Guide tube (50") Lock washer 8 Scale (50") Flat washer 8 Extension table (50") Hex bolt M8x40...
  • Page 32 Switch Breakdown REF# DESCRIPTION REF# DESCRIPTION Switch Lock washer 6 Cable Flat washer 6 Cable Pan HD screw M6x12 Switch bracket Pan HD screw M5x16 strain relief Lock washer 5 Hex bolt M6x12 Flat washer 5...
