HARVEY C-18VS Instruction Manual

Woodworking band saw

Advertisement

Quick Links

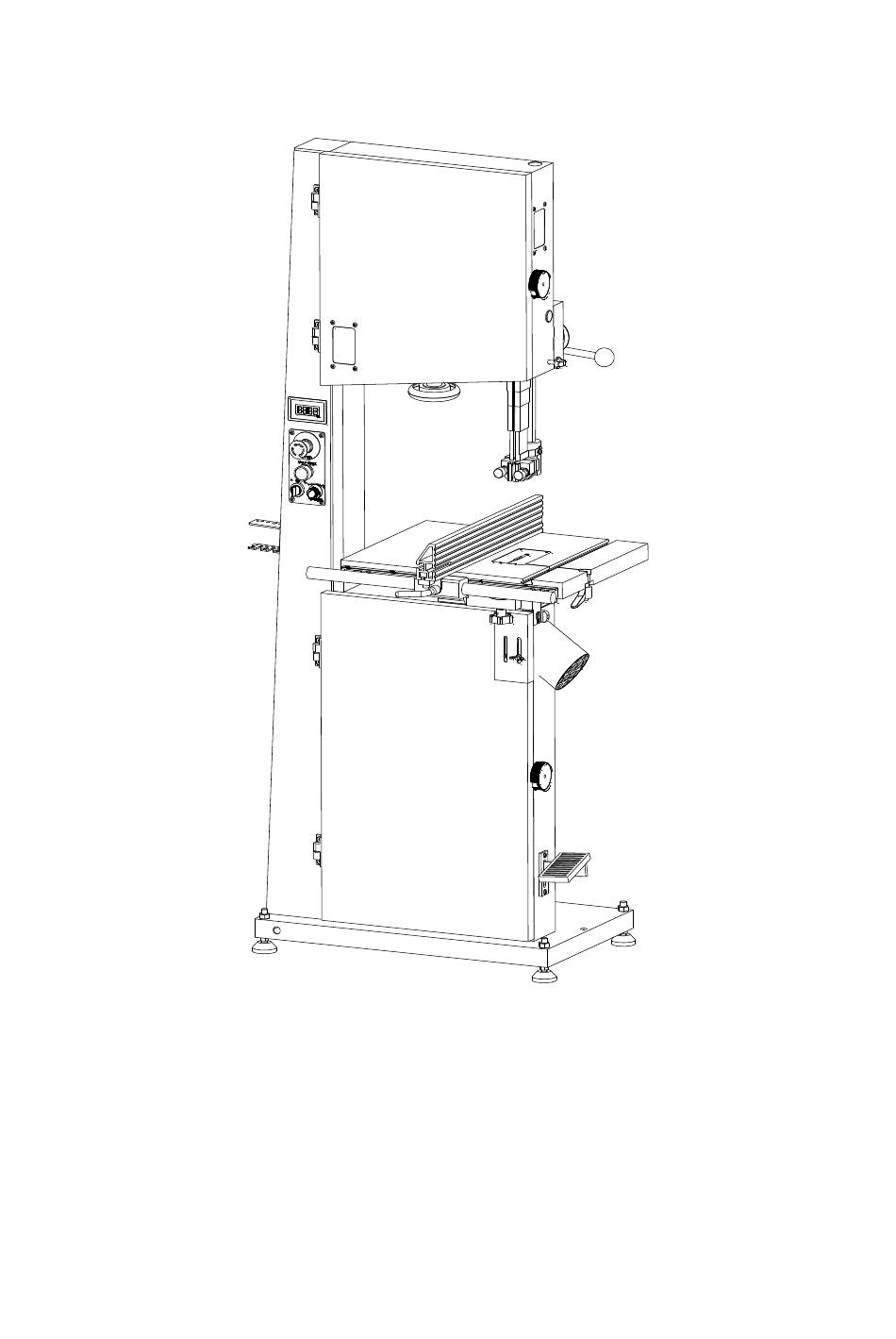

INSTRUCTION MANUAL
Woodworking Band Saw
MODEL: C-18VS
Harvey Industries Co.,Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-18VS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HARVEY C-18VS

  • Page 1 INSTRUCTION MANUAL Woodworking Band Saw MODEL: C-18VS Harvey Industries Co.,Ltd.
  • Page 2: Table Of Contents

    Table of Contents 1、 SAFETY RULES 1.1 LARGE ELECTRIC TOOLS SAFETY-------------------------------------------------------------2 1.2 WOODWORKING BAND SAW SECURITY ----------------------------------------------------2 2、UNPACKING AND CHECKING CONTENTS -------------------------------------------------3 3、 GETTING TO KNOW YOUR BANDSAW ------------------------------------------------------4 4、 SPECIFICATION--------------------------------------------------------------------------------------4 5、 ELECTRICAL REQUIREMENTS &MAGNETIC SWITCH OPERATIONS ----------5 6、ASSEMBLY 6.1 DISASSEMBLING FLOOR AMOUNTING BOLTS ---------------------------------------------6 6.2 ASSEMBLING MOTOR ------------------------------------------------------------------------------6 6.3 ASSEMBLING WORKING TABLE ----------------------------------------------------------------6 6.4 ASSEMBLING THE GAS SPRING -----------------------------------------------------------------7...
  • Page 3: 1、 Safety Rules

    Safety Rules LARGE ELECTRIC TOOLS SAFETY 1. Know your band saw Get up manual instruction for machine maintenance manual in all points before starting any maintenance work. 2. Ground connection This machine with grounding plug ,must ensure that ground .Green or green rolling line of yellow color for the grounding line , can never make a mistake .
  • Page 4: 2、Unpacking And Checking Contents

    7. Check the size and model of the saw blade to satisfy the requirements of cutting. 8. To ensure that the saw blade tensioning force and the position has been adjusted in position. 9. The long curve cutting, make sure tension a little loose. Unpacking and Checking Contents The machine is shipped complete in one box! Before discarding any packaging material, separate all “loose parts”...
  • Page 5: 3、 Getting To Know Your Bandsaw

    Getting To Know Your Band Saw 1. Tension Indicator Window 11. Blade Guide 2. Display 12. Rip Fence Assembly 3. Switch 13. Upper Dust Port 4″ 4. Tool Storage Hooks 14. The workbench saw seam lock handle 5. Frame 15. Bottom screw 6.
  • Page 6: 5、 Electrical Requirements &Magnetic Switch Operations

    Electrical Requirements & Switch Operation WARNING! All electrical connections must be done by a qualified electrician. failure to comply may result in serious injury! Adjustments or repairs-must be done with the machine disconnected from the power source.failure to comply may result in serious injury! POWER SUPPLY Warning! This band saw came pre-wired for 230v operation and must be connected to an appropriately...
  • Page 7: 6、Assembly

    Assembly The band saw is supplied partly assembled. Prior to use, the following items have to be assembled! disassembling floor amounting bolts To be safe, we mounting the band saw to the pallet for shipment, so firstly, you must remove the pallet and slowly set the band saw into position by hardware, fig 4.
  • Page 8: Assembling The Gas Spring

    ASSEMBLING SPRING ASSEMBLY Rotate the working table 20° with anticlockwise, then install the spring assembly into table bottom and frame by hardware (C,D,E), in fig. 7. Fig. 7 ASSEMBLING RIP FENCE Slide the rip fence into the round tube, and adjustment the rip fence parallel with T-slot, and perpendicularity with table, finally tighten the lock lever(B), in fig 8.
  • Page 9: Assembling Saw Blade

    Saw blade assembly First, remove the bedplate protection plate(B) and Loosen handle(C), and then saw blade (A) Bedplate crack on the bedplate center and across the flywheel, up and down on the up and down Saw card center, then turn the saw blade Tight grip (D), tensioning saw blade, again Installed protection plate (B), at last Lock knob (C).
  • Page 10: 7、Adjustment

    Adjustment Adjust the tension of saw blade 1. Rotate quickly tension handle(E) to the lock position, and turn the saw blade tension handle (D) to adjust Tension. 2. Slowly release the saw blade tensioning lever until the saw blade a slight oscillation. 3.
  • Page 11: Adjusting Working Table

    ADJUSTING WORKING TABLE First of all, loosen the handle (D) rotating counter hand again(B), make the pointer to 0 ° then combination with Angle ruler to measure, ensure straight on side and bedplate Angle is 90 °,if inconsistent, you may need to adjust, indeed Pointer display scale is consistent with the combined Angle ruler, then lock screw (C), the most after the lock handle (D).
  • Page 12: 8、 Operation

    Operation SAFETY PRECAUTIONS BEFORE OPERATION!! The operation of power tools involves a certain amount of hazard for the operator. Before attempting regular work we recommend you get the feel of operations using scrap lumber to check settings. Read entire instructions before you start to cut work piece. Always pay attention to safety precautions to avoid personal injury! OPERATION Band saw includes ripping and crosscutting, plus a few other standard operations of a fundamental nature.
  • Page 13: Resawing

    Operation RESAWING Re sawing is the process of cutting a board into two or more thinner boards, the maximum board width that can be re sawn is limited by the maxi-mum cutting height of the band saw. One of the most important considerations when resawing is blade selection, generally, the wider blade, the better.
  • Page 14: 9、 Maintenance

    Maintenance This band saw requires very little maintenance other than minor lubrication and cleaning! The following sections detail what will need to be done in order to assure continued operation of your band saw. 8.1 LUBRICATION Sealed and pre-lubricated ball bearings require no lubrication for the life of the bearings, all bearings are standard sizes, and replacements can be purchased from our parts department or a bearing supply store.
  • Page 15: 10、 Assembly Drawing

    ASSEMBLY DRAWING...
  • Page 16 ASSEMBLY DRAWING...
  • Page 17 ASSEMBLY DRAWING...
  • Page 18 ASSEMBLY DRAWING...
  • Page 19 ASSEMBLY DRAWING...
  • Page 20: 11、 Parts Lists

    Parts List Description Description Cap Screw M5×12 Flat washer 8 Hex Socket Cap Screw M6×12 Spring washer 8 Hinge Cap Screw M8×16 Upper Door Brush Shockproof soft article Lock Nut M4 Sight glass Flat washer 4 Flat washer 5 Shockproof soft article Lock Nut M5 Lock Nut M6 Blade Quick Release Label...
  • Page 21 Parts List Description Description Set Screw Fence M10×12 Shaft Bracket Cushion Guide Bar Work Table Rubber Belt Hex Socket Cap Screw M4×20 Bracket Set Screw M4×5 Flat washer 8 Insert Cap Screw M8×16 Spring sheet Shaft Spring Set Screw M6×8 Flat washer 4 Hand wheel Lock Nut M4...
  • Page 22 Parts List Description Description Bearing Worm Guide Block Support Frame Cap Screw M6×50 Pin 4×20 Bracket Gear Shaft Cap Screw M4×8 Clamping Plate Spring washer 4 Support Block Indicator Cap Screw M8×25 Gear Flat washer 8 Cap Screw M6×16 Set Screw M6×12 Set Screw M5×8 Block Limit sleeve...
  • Page 23 Parts List Description Description Spring washer 5 Flat washer 4 Flat washer 5 Lock Nut M4 Travel switch cover Frequency converter label Cap Screw M4×25 Cable Connector Spring washer 4 Electric box-3 Flat washer 4 Switch Bracket Travel switch Electric box-1 Travel switch cover Cap Screw M5×16 Travel switch base...
  • Page 24: 12、 Electrical Principle Chart

    ELECTRICAL PRINCIPLE CHART...
