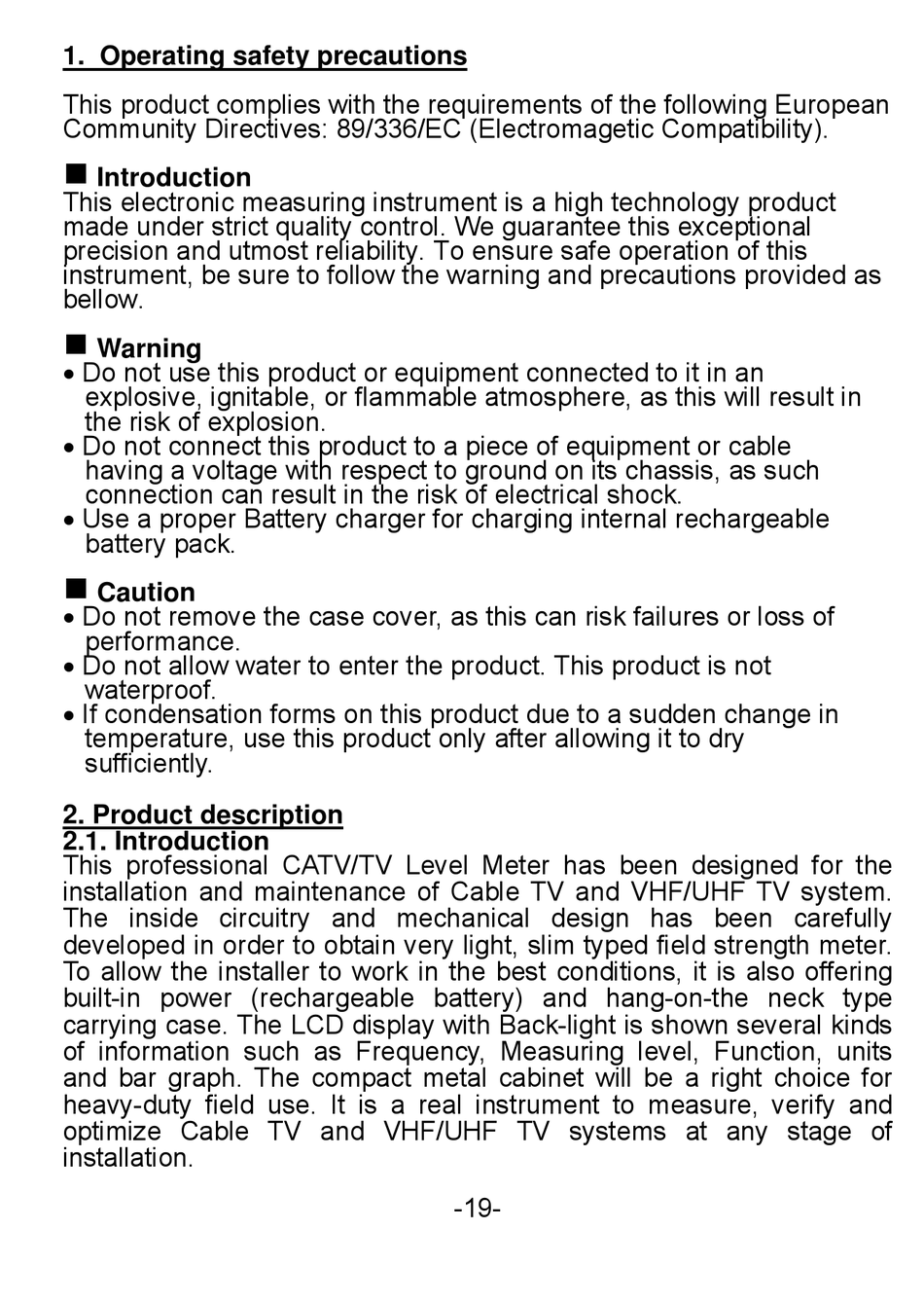

1. Operating safety precautions
This product complies with the requirements of the following European
Community Directives: 89/336/EC (Electromagetic Compatibility).
g Introduction
This electronic measuring instrument is a high technology product
made under strict quality control. We guarantee this exceptional
precision and utmost reliability. To ensure safe operation of this
instrument, be sure to follow the warning and precautions provided as
bellow.
g Warning
• Do not use this product or equipment connected to it in an
explosive, ignitable, or flammable atmosphere, as this will result in
the risk of explosion.
• Do not connect this product to a piece of equipment or cable
having a voltage with respect to ground on its chassis, as such
connection can result in the risk of electrical shock.
• Use a proper Battery charger for charging internal rechargeable
battery pack.
g Caution
• Do not remove the case cover, as this can risk failures or loss of
performance.
• Do not allow water to enter the product. This product is not
waterproof.
• If condensation forms on this product due to a sudden change in
temperature, use this product only after allowing it to dry
sufficiently.
2. Product description
2.1. Introduction
This professional CATV/TV Level Meter has been designed for the
installation and maintenance of Cable TV and VHF/UHF TV system.
The inside circuitry and mechanical design has been carefully
developed in order to obtain very light, slim typed field strength meter.
To allow the installer to work in the best conditions, it is also offering
built-in power (rechargeable battery) and hang-on-the neck type
carrying case. The LCD display with Back-light is shown several kinds
of information such as Frequency, Measuring level, Function, units
and bar graph. The compact metal cabinet will be a right choice for
heavy-duty field use. It is a real instrument to measure, verify and
optimize Cable TV and VHF/UHF TV systems at any stage of
installation.
