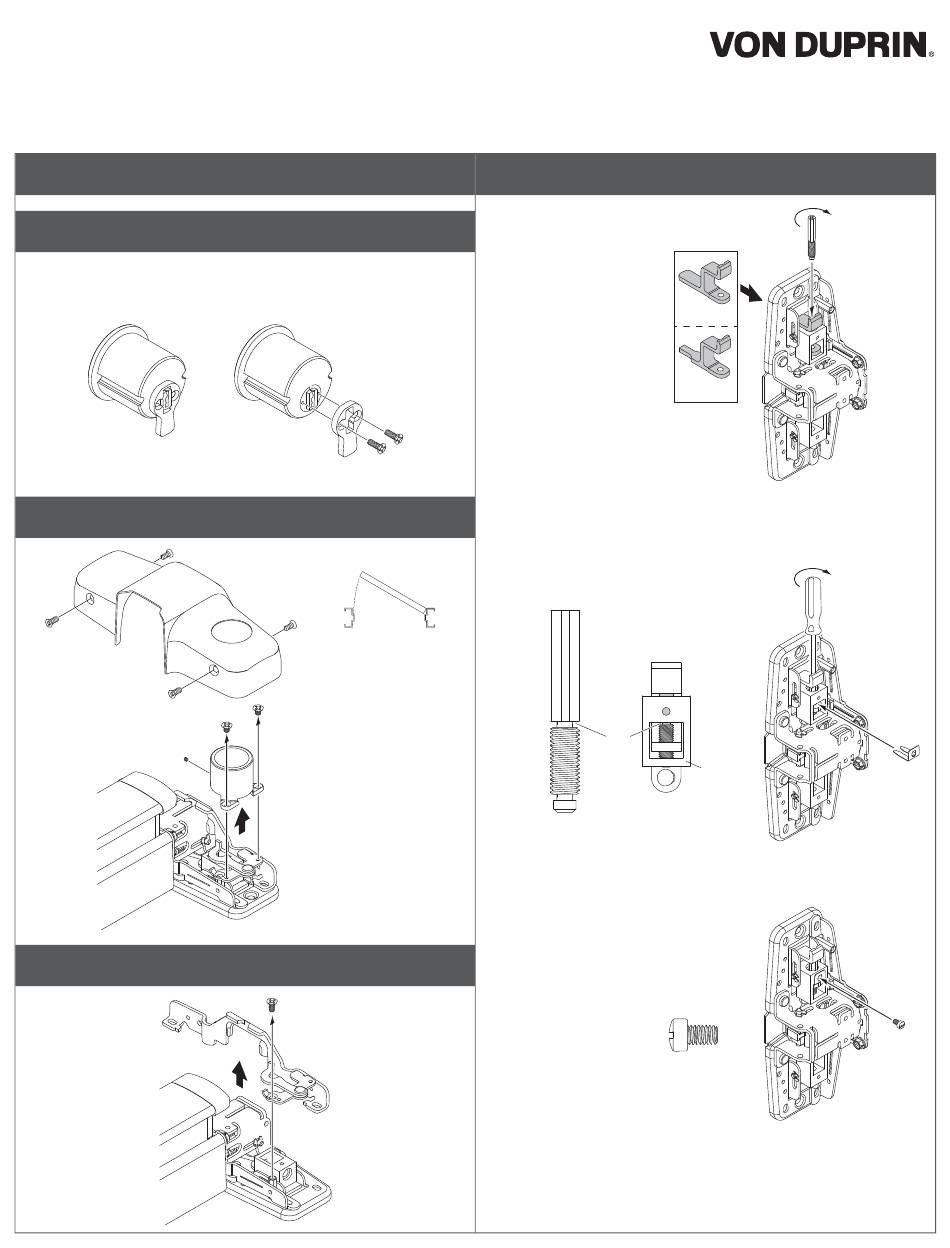

24223984
Special Dogging

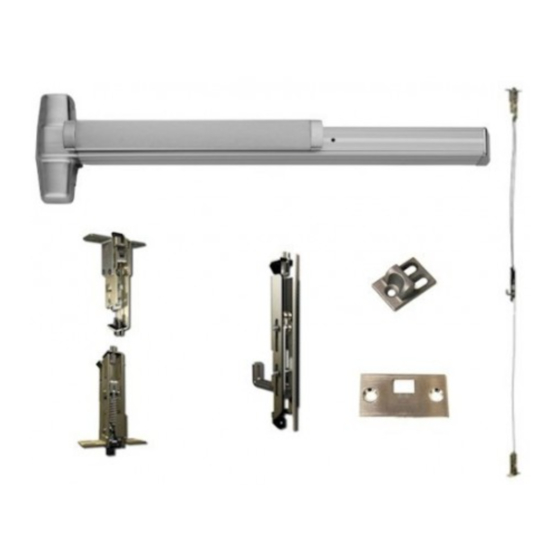

Compatible with Models: 98/9949, 98/9949-F, 98/9949WDC, 98/9950WDC, 98/9950WDC-F
1
Obtain a 1-1/4" Mortise Cylinder.
2
Position Cylinder Cam.
Make sure cylinder cam is in position shown with key removed
(Figure A). If not, remove key, remove cam, and reinstall cam in
position shown (Figure B).
Figure A
3
Remove Center Case Cover and Cylinder Bracket.
4
Remove Dogging Hook and Bracket.
98/9949 & 98/9950
Figure B
LHR shown
LHR Top
5
Install Lift Finger and Retainer Clip.
Install lift finger thru back
side of center case, and
begin tightening the
adjustment screw.
When the top slot in adjustment screw becomes visible, install retainer clip
by snapping it into the slot. Continue tightening adjustment screw to raise
the lift finger until it is snug against block.
slot
Secure retainer clip with screw
Installation Instructions
a
b
9949
9950
d
block
c
e
