*24158859*
24158859

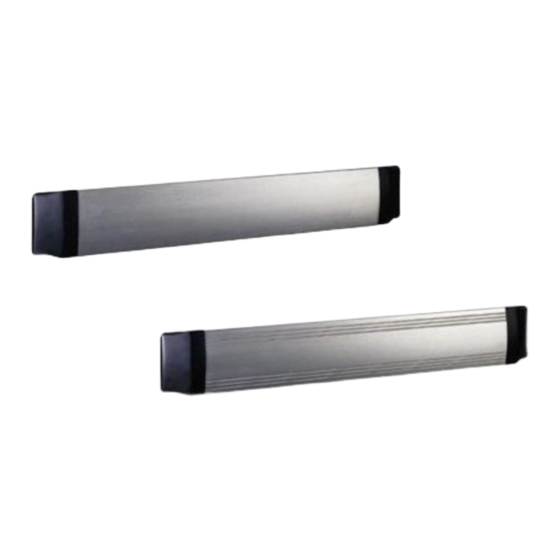

Recessed Exit Device
Devices covered by these instructions:
QEL94/9547/48 Concealed Vertical Rod Device (Panic and Fire)
QEL94/9547-LBR Concealed Vertical Rod Device (Fire)
Read All Warnings
Before Starting Installation!
QEL94/9547
FOR DEVICES SOLD PRIOR TO DEC. 2014
Customer Service
1-877-671-7011
Install in accordance with instructions or
For less bottom rod (LBR) devices, do not
cover the door gap at the auxiliary fire latch
with a door edge guard or similar product.
If edge guard is installed, remove it.
• Warnings .......................... .......... 1
• Parts ........................................... 2
• General Information .................... 3
• Specifications ............................. 3
• Tools Needed ............................. 3
• Set Handing ............................... 3
• Installation .................................. 4
www.allegion.com/us
Installation Instructions
WARNING
device will not function.
CAUTION
Index
© Allegion 2018
Printed in U.S.A.
24158859 Rev. 10/18-c
Advertisement
Related Manuals for Von Duprin QEL94/9547 Series
Summary of Contents for Von Duprin QEL94/9547 Series
- Page 1 *24158859* QEL94/9547 24158859 Recessed Exit Device FOR DEVICES SOLD PRIOR TO DEC. 2014 Installation Instructions WARNING Install in accordance with instructions or device will not function. CAUTION For less bottom rod (LBR) devices, do not cover the door gap at the auxiliary fire latch with a door edge guard or similar product.
- Page 2 PARTS Ratchet release assembly Soffit strike Top latch assembly Top rod assembly QEL cable Device QEL motor End cap Dogging key End cap (panic devices Bottom rod only) assembly Bottom latch assembly Sill strike 2 of 16...
-
Page 3: General Information
GENERAL INFORMATION The QEL94/9547 Exit Device is designed to provide reduced pushpad projection and a unique appearance by embedding the device into the face of the door. These instructions assume that a factory-prepared door and frame are being used. Before starting installation, review "Warnings," "Parts," "Specifications," and "Tools Needed." SPECIFICATIONS Mechanical Electrical Load... - Page 4 PREPARE DOOR FOR TRIM (SKIP THIS STEP IF NOT USING TRIM) Drill through the four mounting holes and trim access hole at the latch side of the cutout. See trim installation instructions for hole sizes and locations. Latch Hinge side side PREPARE HOLE FOR RATCHET RELEASE PLUNGER a.
- Page 5 See LX switch wiring information (Figure 3-2) for switch configuration. c. Connect LX switch wiring to door side of power transfer using crimp connectors. Unused wires should be insulated separately. Power transfer (Von Duprin EPT10 shown, or Field EPT2 can be used on QEL wiring...
- Page 6 MOUNT DEVICE ON DOOR a. Mount device on door using supplied mounting screws (Figure 4-1). b. Center device in pocket, leaving an even gap all around the device. c. If outside trim is used, bolt through to trim (see Figure 4-2 and trim installation instructions). ⁵⁄₁₆"...
- Page 7 INSTALL TOP LATCH a. Rivet two-piece top rod together. Align holes according to door height (Figure 6-1). Rod length for a 7-foot door is approximately 38¹⁄₂”. Top rod sections are longer than bottom rod sections. b. Attach brackets to top latch, then thread rod assembly onto latch (Figure 6-2). c.
- Page 8 INSTALL BOTTOM LATCH (SKIP THIS STEP FOR LBR DEVICES) a. Repeat steps 6a through 6d for bottom rod and latch. Use hole 8 for most applications. Approximate rod length is 34¹⁄₂”. b. Press pushpad to retract latches. c. Hang door. INSTALL 338 SOFFIT STRIKE 8 of 16...
- Page 9 INSTALL SILL STRIKE OR THRESHOLD (SKIP THIS STEP FOR LBR) Strike ¹⁄₄" Carpet INSTALL RATCHET RELEASE ASSEMBLY #25 drill and #10-24 tap 2 places 9 of 16...
- Page 10 ADJUST TOP ROD a. Fully depress and hold pushpad. b. Set top latch in fully retracted (hold) position (Figure 11-1). c. Push down on center case connector, adjust rod length, and connect top rod (Figure 11-2). d. Verify that pushpad projection, when depressed, is between 1¹⁄₈”...
- Page 11 ADJUST BOTTOM ROD (SKIP THIS STEP FOR LBR DEVICES) a. Fully depress pushpad and release. Top latch should be in retracted position. b. Adjust bottom rod length by rotating rod so latch clears floor when door is open. Lengthen rod Shorten rod INSTALL RETAINER CLIPS ON TOP AND BOTTOM RODS AT CENTER CASE Center case...
- Page 12 TEST MECHANICAL DEVICE OPERATION a. Fully depress pushpad and push door open. b. Release pushpad. Latch bolts should remain retracted. c. Close door. Latch bolts should fully extend (⁵⁄₈" ± ¹⁄₁₆") and engage strikes. INSTALL 900-2RS, 4RL, OR 4R OPTION BOARD(S) INTO POWER SUPPLY Review Available 900 series Plug Option Board Cable into Option Board Mounting...
- Page 13 CONNECT INPUT AND OUTPUT WIRES TO OPTION BOARD, 2RS SHOWN Individual Mode - Typical Wiring Sequential Mode - Typical Wiring Input will activate output 1 120/240 VAC 120/240 VAC Input will activate output 2 50/60Hz 50/60Hz 900-2RS 900-2RS Input will activate both outputs SC I1 01 I2 02 GND SC I1 01 I2 02 GND EPT-2/10...
-
Page 14: Check Operation
APPLY POWER TO POWER SUPPLY. IF 900-BB IS USED, THEN RECONNECT BATTERIES CHECK OPERATION Activate each input and verify all QEL devices operate properly. NOTE: During the first activation, each device will perform a one time self calibration, which is normal. For best results, power each device separately so that the calibration cycles do not overlap. - Page 15 IF NECESSARY, TROUBLESHOOT OPERATION Power at QEL Response Condition / Solution the QEL LED - Off QEL is not receiving power to operate Latchbolt extended Problem with power supply or wiring 0VDC LED - Solid green Operation normal Latchbolt retracted LED - Solid red Improper mechanical adjustment or QEL calibration after latchbolt attemtps to retract...
-
Page 16: Install End Caps
INSTALL END CAPS NOTE Make sure pushpad is in outward position before installing end caps. End cap End cap INSTALL AUXILIARY FIRE LATCH (LBR DEVICES ONLY) See installation instructions packaged with auxiliary fire latch kit. 16 of 16...
