Installation
The components of the Intellian i9/i9P have been designed to be
modular so that it is suitable for simple installation on all types of vessels.

System Components

Antenna Unit
The antenna of Intellian i9/i9P is composed with the following components for
the optimum search and reception of the satellite signal.
 Mechanical Unit – manipulates the antenna to receive the optimal
satellite signal regardless of the movement of the vessel.
i9/i9P Satellite Antenna System – Install and User Manual
Power &
Data Cable
DC Power Cable

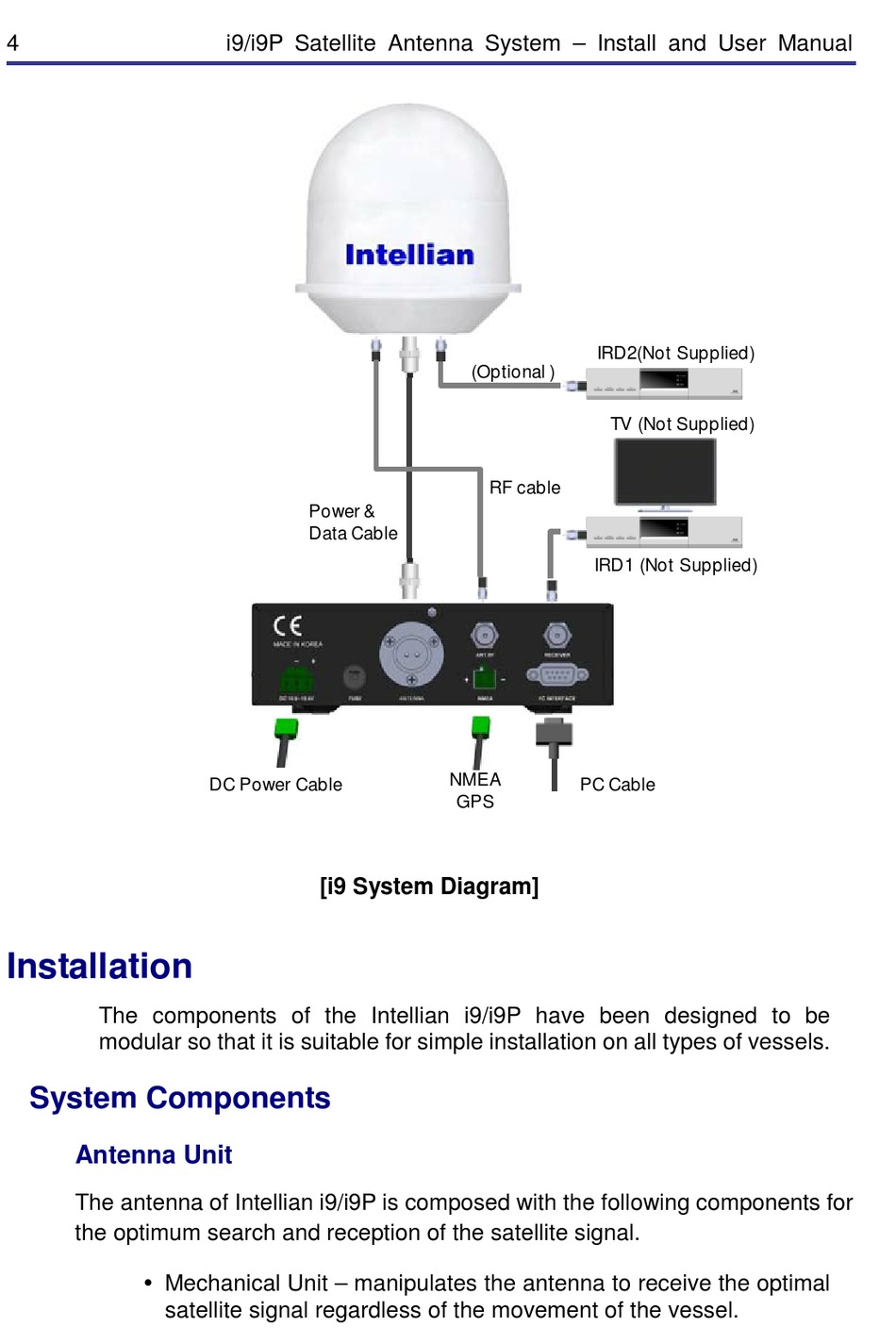

[i9 System Diagram]
IRD2(Not Supplied)
(Optional )
TV (Not Supplied)
RF cable
IRD1 (Not Supplied)
NMEA
PC Cable
GPS
