Introduction

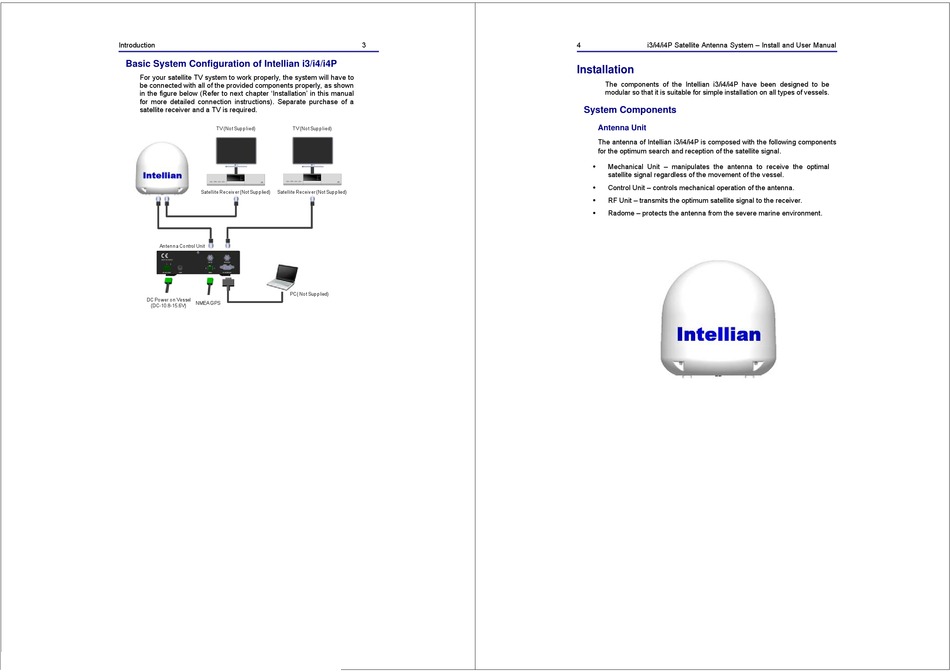

Basic System Configuration of Intellian i3/i4/i4P

For your satellite TV system to work properly, the system will have to
be connected with all of the provided components properly, as shown
in the figure below (Refer to next chapter 'Installation' in this manual
for more detailed connection instructions). Separate purchase of a
satellite receiver and a TV is required.
TV (Not Supplied) TV (Not Supplied)
Satellite Receiver (Not Supplied) Satellite Receiver (Not Supplied)
Antenna Control Unit
PC( Not Supplied)
DC Power on Vessel
NMEA GPS
(DC-10.8-15.6V)
3 4 i3/i4/i4P Satellite Antenna System – Install and User Manual

Installation

The components of the Intellian i3/i4/i4P have been designed to be
modular so that it is suitable for simple installation on all types of vessels.

System Components

Antenna Unit
The antenna of Intellian i3/i4/i4P is composed with the following components
for the optimum search and reception of the satellite signal.
 Mechanical Unit – manipulates the antenna to receive the optimal
satellite signal regardless of the movement of the vessel.
 Control Unit – controls mechanical operation of the antenna.
 RF Unit – transmits the optimum satellite signal to the receiver.
 Radome – protects the antenna from the severe marine environment.
