56315312 SQUEEGEE WAND KIT
Convertamatic™ Models: All
BA625 series Models: ALL
Warrior™ Models: All
BA 755 series Models: All
Adhancer™ Models: All
BA 855 Trio EDS™ Models: All
AquaPLUS™ Models: All
CONTENTS OF KIT
ITEM
PART NO.
QTY
56040825
1
1
56407361
4
2
56009030
8
3
56315232
1
4
56315309
1
5
56315311
2
6
56002292
2
7
56315344
2

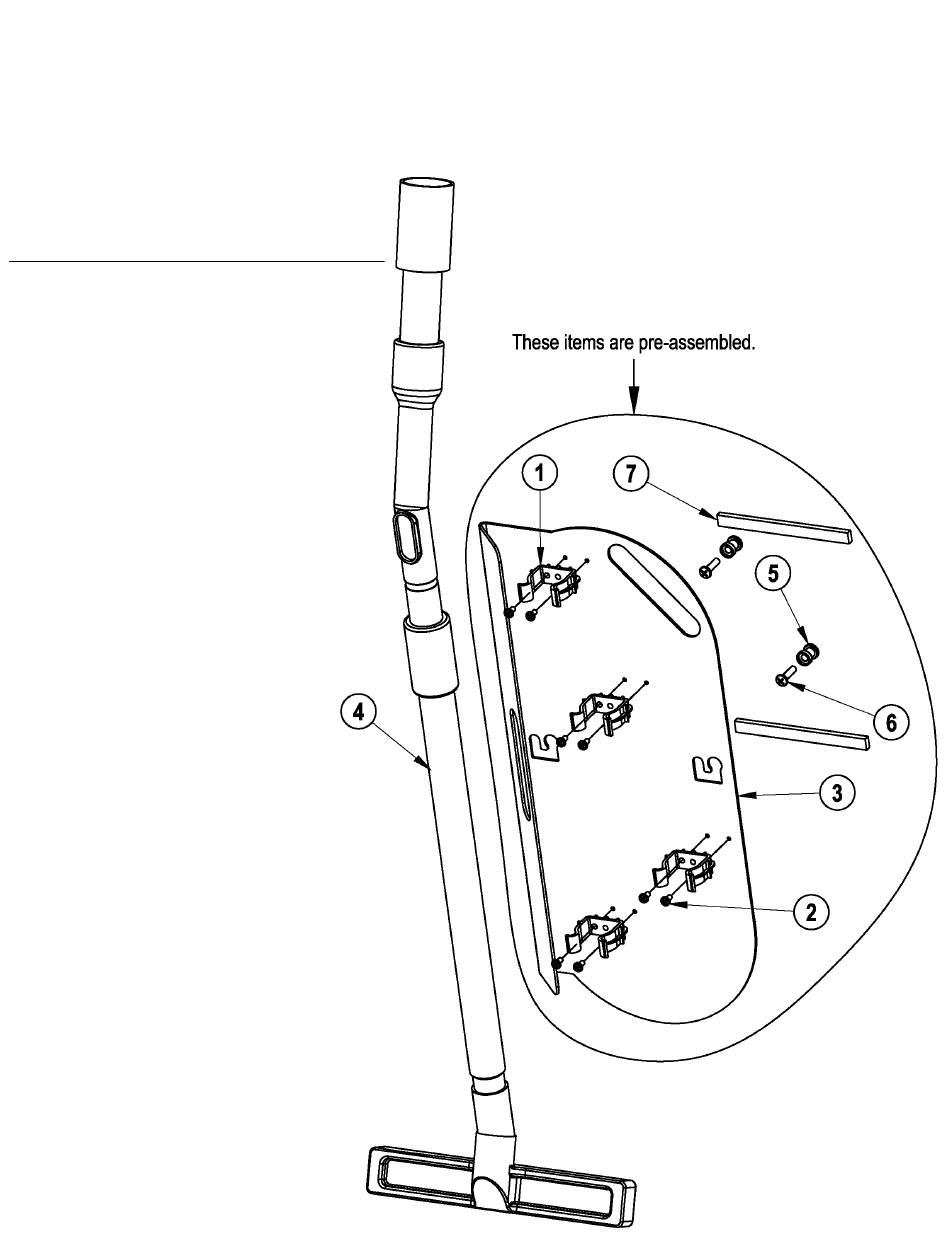

NOTE: Items (1, 2, 3 & 7) come preassembled.
© 2007 Nilfi sk-Advance, Inc.
DESCRIPTION
Instruction Sheet
Clamp, Plastic
Scr, Pan Phil Thd Form 10-24 x .38
Bracket, Wand
Wand, Squeegee
Bushing
Scr, Pan Phil 1/4-20 x 1.00
Gasket, 1/4 x 1/2 x 6
page 1 of 3
