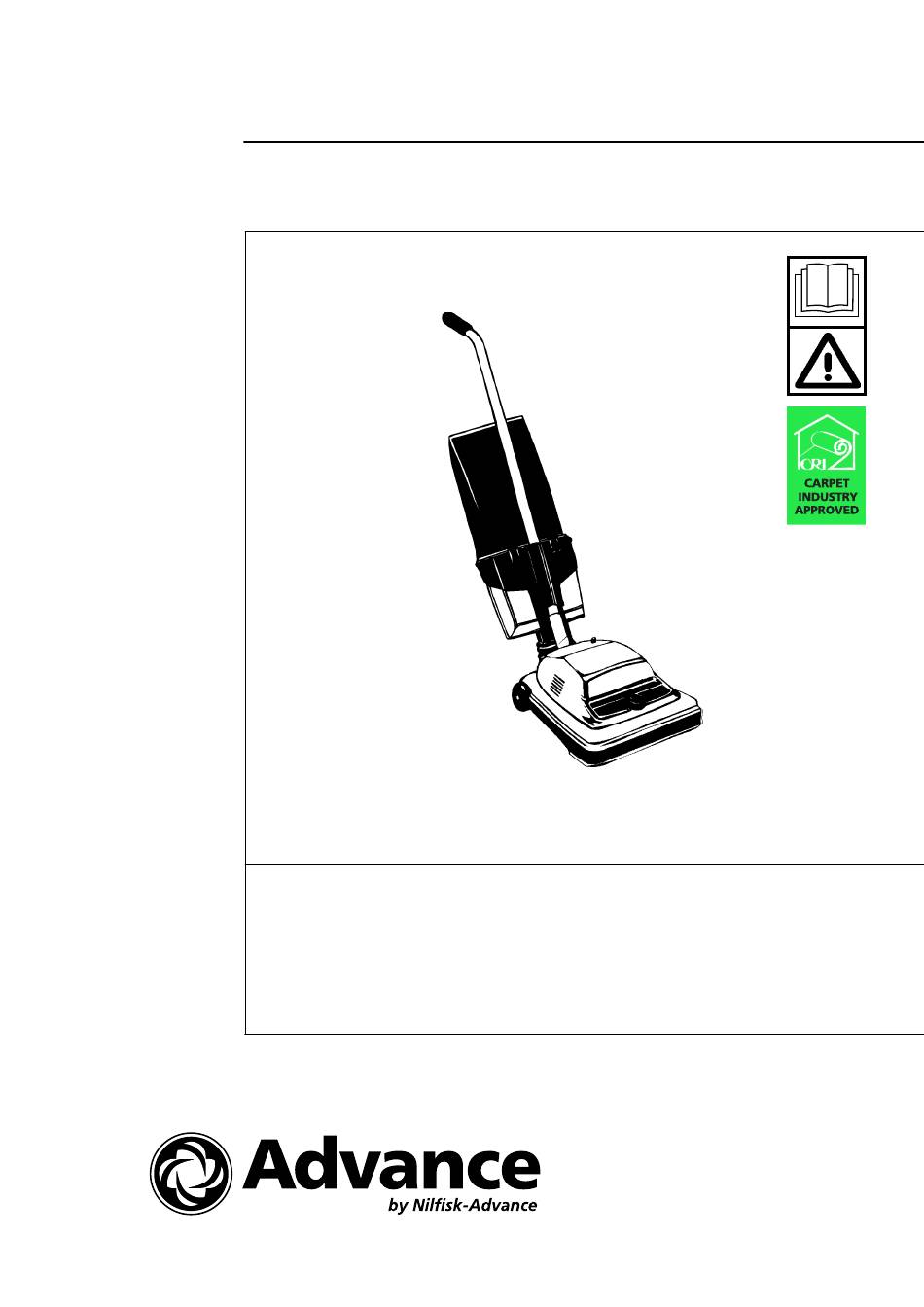

AdVac
OPERATOR MANUAL AND PARTS LIST
OPERATOR MANUAL AND PARTS LIST
OPERATOR MANUAL AND PARTS LIST
OPERATOR MANUAL AND PARTS LIST
OPERATOR MANUAL AND PARTS LIST
AdVac™ MODEL 56648197
™
12DC
1/02 Form Number 56041521

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Advance AdVac 12DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nilfisk-Advance Advance AdVac 12DC

Summary of Contents for Nilfisk-Advance Advance AdVac 12DC

  • Page 1 ™ AdVac 12DC OPERATOR MANUAL AND PARTS LIST OPERATOR MANUAL AND PARTS LIST OPERATOR MANUAL AND PARTS LIST OPERATOR MANUAL AND PARTS LIST OPERATOR MANUAL AND PARTS LIST AdVac™ MODEL 56648197 1/02 Form Number 56041521...
  • Page 2 Lower Handle Tube 2-Part Cord Hook Bag Screws Cord Clamp Bellows Adaptor Handle Bolts And Nuts And Screw Dust Cup Support ™ 2 - FORM NO. 56041521 - AdVac 12DC...
  • Page 3 Handle Lock Power Switch Bag Hook 1-Unhook 5-Remove Cup 7-Replace Cup and 2-Shake Bag Swing Lid Shut 6-Empty Cup 4-Lift Lid 3-Release Latch ™ FORM NO. 56041521 - AdVac 12DC - 3...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using. This machine is for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes.

  • Page 5: Instructions De Sécurité Importantes

    INSTRUCTIONS DE SÉCURITÉ IMPORTANTES Toujours suivre certaines précautions élémentaires lors de l’utilisation d’un appareil électrique. Lire toutes les instructions avant d’utiliser la machine. Cette machine est adaptée à l’usage commercial, par exemple dans les hôtels, les écoles, les hôpitaux, les usines, les magasins et les bureaux.
  • Page 6 120VAC GROUNDING INSTRUCTIONS This appliance must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 7 INSTRUCTIONS VISANT LA MISE À LA TERRE (120VAC) Cet appareil doit être mis à la terre. En cas de défaillance ou de panne éventuelles, la mise a la terre fournit au courant un chemin de moindre résistance qui réduit le risque de choc électrique. Cet appareil est pourvu d’un cordon muni d’un conducteur de terre et d’une fiche avec broche de terre.
  • Page 8 If damage is evident, save the shipping The handle lock is located at the left rear side of the machine. Simply carton so that it can be inspected. Contact the Nilfisk-Advance step on it to release and move the handle to one of the three positions.
  • Page 9 Shake the cloth bag to release dust clinging inside. Release each latch, one on either side of the handle (lift up Have Nilfisk-Advance check the carbon motor brushes once a year or on the bottom and pull the top forward).

  • Page 10: Base Assembly

    BASE ASSEMBLY 02-1 AdVac ™ 12DC 4 57 50 49 FORM NO. 56041521...
  • Page 11 BASE ASSEMBLY 02-1 ™ AdVac 12DC Item Ref. No. Description Item Ref. No. Description 56009385 Scr Shldr Plasform 12-10 x .172 56630592 Wheel—2.25dia,.322bore,1.62hb 56630620 Spring,Ext .275d 1.50l .024wd 56630517 Asm,Knob 56648081 Hood,Mtr—Light Gray 56009191 Scr Tpg F Pan Hd 10-10x.500l 56630921 Clamp,Axle 56630917...

  • Page 12: Vac Motor Assembly

    VAC MOTOR ASSEMBLY 02-1 AdVac ™ 12DC FORM NO. 56041521...
  • Page 13 VAC MOTOR ASSEMBLY 02-1 ™ AdVac 12DC Item Ref. No. Description 56630787 Scr Tpg C Pan Hd 8-Btx.500l 56002811 Scr Mach Pan Hd 6-32x.250l 56630561 Brush,Mtr 56630525 Cover,Mtr 56630901 Kit,Armature—Replacement 56630895 Stator,Mtr 56630567 Asm,Base—Motor 56630793 Orlo Thd. Screw 56630870 Wshr Flt .318id.500od.046t Stl 56630799 Wshr Flt .312id.625od.094t Fbr 56630273...

  • Page 14: Handle Assembly

    HANDLE ASSEMBLY 02-1 AdVac ™ 12DC FORM NO. 56041521...
  • Page 15 HANDLE ASSEMBLY 02-1 ™ AdVac 12DC Item Ref. No. Description 56630916 Pin—Cover 56630352 Flange—Bag 56630706 Gasket—Dirt Cup 56630903 Asm,Dirt Cup Support—W/Latchs 56630502 Clamp—Bellows/Dirt Cup,Top 56630351 Bellows-Dirt Cup 56002192 Scr Mach Pan Hd 10-24x.750l 56630705 Clamp—Bellows,Dirt Cup,Bottom 56002768 Nut,Hex Lock— 10-24,Nyloc 56630959 Ring—Steel/Dirt Cup 56630958...
  • Page 16 Nilfisk-Advance, Inc. 14600 21st Avenue North Plymouth, MN, 55447-3408 www.nilfisk-advance.com Phone: 800-989-2235 Fax: 800-989-6566 ©2001 Nilfisk-Advance, Inc., Plymouth, MN 55447-3408 Printed in the U.S.A.

This manual is also suitable for:

56648197
