Summary of Contents for Nilfisk-Advance DRYFT

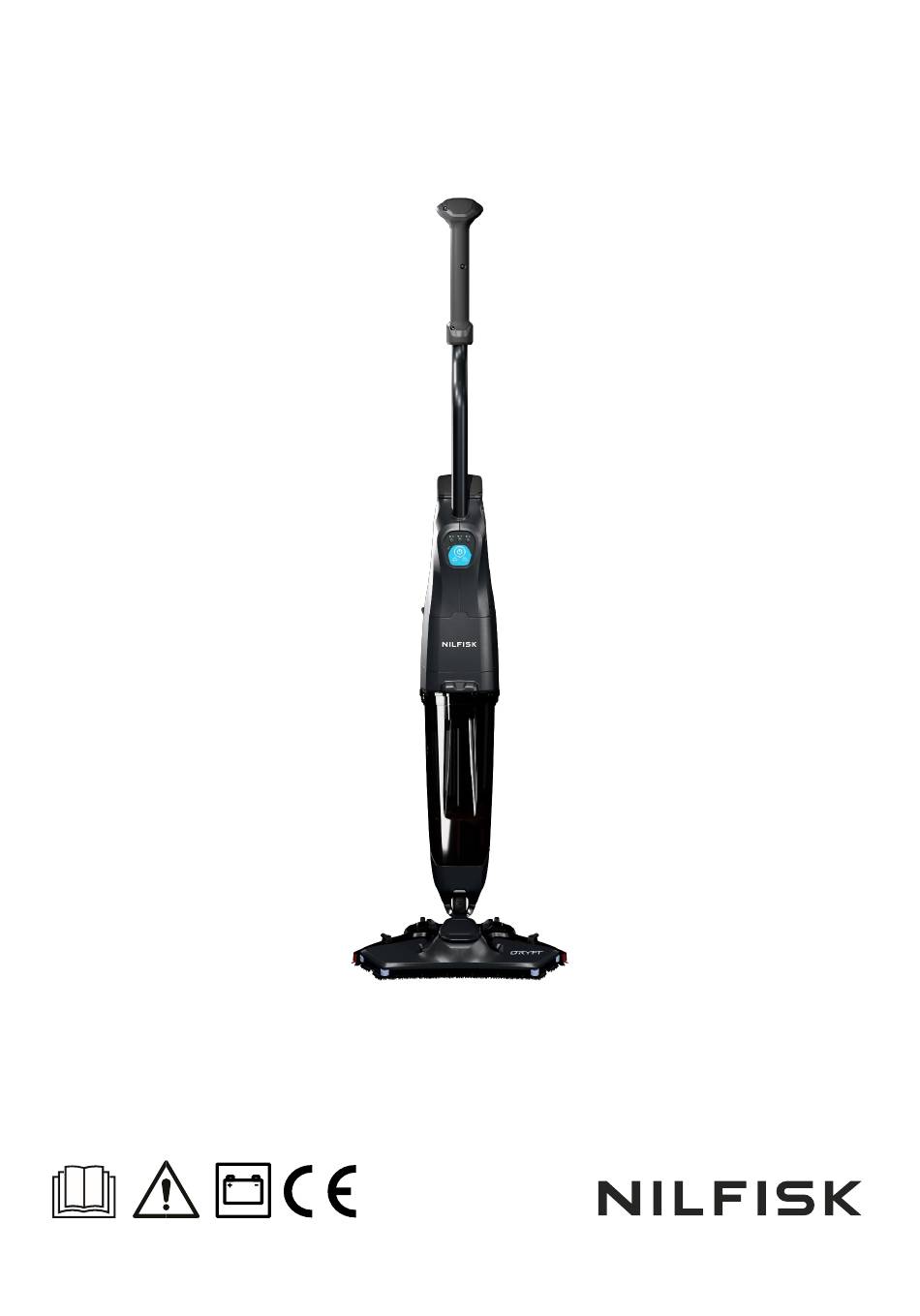

- Page 1 Manufacturer PDF Provided by www.southeasternequipment.net INSTRUCTIONS FOR USE DRYFT Models No.: User Manual P/N: 58002111 58002000, 58002001, 58002002, 58002003 Rev. A Dec.2024...
-
Page 4: Table Of Contents
KNOW YOUR EQUIPMENT ............................8 CONTROL PANEL ................................9 QUICK START GUIDE ........................... 10 HOW DRYFT WORKS ..............................11 HOW TO USE DRYFT ..............................11 WHERE TO USE DRYFT .............................. 11 MAINTAINING CORRECT POSTURE ......................... 12 WALKING FORWARDS ............................... 12 THE WAY WE CLEAN .............................. -
Page 5: Introduction
DRYFT cleans in widths of 160cm whilst you walk forward once, in comparison to other scrubbers, that require the user to walk four times up and down to cover this same cleaning width. The result is 75% less walking with DRYFT allowing the user to double their floor cleaning productivity. -
Page 6: Spare Parts And Maintenance
Any change and/or addition of accessory must be approved and performed by Nilfisk. OPERATION CAPABILITIES The Dryft scrubber-dryer is used to clean (scrubbing and drying) smooth and solid floors, in commercial or industrial environment, under safe operation conditions by a qualified operator. -
Page 7: Transporting
DRYFT has been designed to be safe and easy to transport when following the safety rules detailed below. Place your foot on the bar at the rear between wheels and pull the handle to engage transport mode. -
Page 8: Safety Basics
SAFETY BASICS DRYFT is incredibly safe and easy to use. However, as it is an electrical product we need to make you aware of some important safety information. By following the advice on this page, you can reduce any risk of electric shock and personal injury. -
Page 9: Other Symbols Explained
ORIGINAL INSTRUCTIONS Your DRYFT must be kept clean to ensure safe operation. The upper handle and switch area should be dry, and the machine should be clean and free from oil, grease and water when not in use. Always flush out chemical with clean water after every use. - Page 10 To identify electrical equipment designed primarily for indoor use. Disconnect Power: Disconnect the power between the battery and DRYFT. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
-
Page 11: Machine Description
ENGLISH INSTRUCTIONS FOR USE ORIGINAL INSTRUCTIONS MACHINE DESCRIPTION KNOW YOUR EQUIPMENT ① Spin Handle ② S-Handle ③ Control Panel ④ DRYFT CORE-ion Battery ⑤ Suction Unit ⑥ Clean water Tank ⑦ Magnetic Recovery Tank ⑧ Transportation Wheels ⑨ MAGPlate ⑩... -
Page 12: Control Panel
DRYFT’s simple control panel has been designed to allow the user to easily switch between smooth floor mode and rough floor mode at the press of a button DRYFT has a stopping sequence. Suction remains on at end of cycle for three seconds, this is to help collect excess water within the cleaning pad. -
Page 13: Quick Start Guide
ORIGINAL INSTRUCTIONS QUICK START GUIDE 1. Charge battery. 3. Tighten the handle with the 2. Insert handle. allen key provided. 10. Press power button to turn on. 11. Select smooth or rough floor mode. 12. Clean at DRYFT speed. DRYFT-58002111 12/2024... -
Page 14: How Dryft Works
HOW TO USE DRYFT Always ensure you keep the cleaning head moving forward, the head works by scrubbing and then using the squeegees to extract the dirt and water. We recommend two methods of use: 1. -
Page 15: Maintaining Correct Posture
This is how to hold the machine when walking forwards and is best for cleaning tight areas. We recommend using DRYFT like this in the beginning, then once you feel comfortable with the machine you can progress to the S-motion technique. -
Page 16: The Way We Clean
3. Turn the machine by guiding the 4. Position DRYFT in front of your 5. Guide DRYFT in front of your body lower handle with your fingers. body and move horizontally, again, creating an S formation. -
Page 17: Technical Data
ENGLISH INSTRUCTIONS FOR USE ORIGINAL INSTRUCTIONS TECHNICAL DATA Model NILFISK DRYFT V1 Scrubbing width (mm) Low profile head height (mm) <50 Brush head oscillations high / low (rpm) 4200 / 3500 Machine voltage (V) 25.2 Battery capacity (Ah) Battery running time high vacuuming (mins) -
Page 18: Wiring Diagram
BATT + Battery + VAC S Vacuum Signal VAC - Vacuum - VAC + Vacuum + WAT - Water Solenoid - WAT + Water Solenoid + BRUSH U Brush U BRUSH V Brush V BRUSH W Brush W 12/2024 DRYFT-58002111... -
Page 19: Maintenance
DRYFT is powered by the CORE-ion lithium-ion battery. Your DRYFT CORE-ion battery is incredibly safe, it has been tested and certified to the most stringent safety standards. However, as a lithium-ion battery we need to make you aware of some important safety information. -
Page 20: Battery Indication Lights
To reduce risk of it overheating, allow battery to fully cool. If your battery is frequently overheating under a low load of voltage, then then please contact our support team Battery level indicator button 12/2024 DRYFT-58002111... -
Page 21: Battery Level Display
ORIGINAL INSTRUCTIONS BATTERY LEVEL DISPLAY When using DRYFT, the CORE-ion Battery level display will show in 20% increments. Likewise, when charging the CORE- ion Battery, the battery level display will flash the current state of charge in 20% increments. Time to charge 100% When the battery is placed in the battery charger, or in a machine the state of charge will display automatically. -
Page 22: Clean Water Tank
Clean water tank 1. Lift tank vertically, before pulling away from 2. 2.5 liter/0.55 gallon capacity, do not fill above the DRYFT. the fill limit indicator. Ensure the tank is hooked on properly and pushed 4. Always ensure water cap is in place and fully down fully to engage the valve. -
Page 23: Preparing Cleaning Solution
It is very difficult for us to approve every chemical on the market, however the majority of cleaning detergents are safe to use with DRYFT. It is important that the chemicals must be low foaming and machine safe. High foaming chemicals can damage your vacuum motor and void the warranty on the motor. -
Page 24: Magnetic Recovery Tank
MAGNETIC RECOVERY TANK The DRYFT recovery tank has a clear ‘max’ fill marker located on the tank, in normal usage (non-spill recovery) the recovery tank will become full at a similar time to the solution tank requiring a refill, so we recommend that you complete these tasks in parallel. -
Page 25: Inlet Filter Service And Repairs
WARNING: Do not use flammable chemicals or solutions. INLET FILTER SERVICE AND REPAIRS Ensure the inlet filter is always kept clean and secured in place before using DRYFT. Recovery tank lid Filter Recovery tank Check the filter before each use and clean as required. If the filter is left to become clogged this will reduce airflow resulting in poor drying performance. -
Page 26: Pads And Applications
DRYFT pads are used to avoid invalidating your warranty. PADS AND APPLICATIONS DRYFT is supplied with one cleaning pad it is non-scratch, washable and suitable for cleaning all hard floors, smooth and textured Designed specifically for DRYFT, this revolutionary material has been designed to maximize DRYFT’s groundbreaking oscillating technology. -
Page 27: Squeegee
Gently peel off the cleaning pad from the hook the MAGPlate so that it is perfectly central. and loop finish. Lower DRYFT head onto the floor into cleaning Attach MAGPlate onto the base of DRYFT, position. ensuring fingers are kept clear. MAGPlate will magnetically lock into place. - Page 28 3. Drop out the inner squeegee. 4. Place the squeegee on a flat surface and twist the two remaining twist locks. 6. The bracket is now accessible for cleaning or 5. Gently pull the squeegee away from the replacement squeegee. retaining hooks. 12/2024 DRYFT-58002111...
-
Page 29: Cleaning With Dryft
Ensure appropriate PPE footwear is worn. SLIP HAZARD: DRYFT is intended for commercial use. Ensure others are alerted to the potential slip hazard by using appropriate signage. DRYFT-58002111... -
Page 30: Storing The Machine
ORIGINAL INSTRUCTIONS INSTRUCTIONS FOR USE ENGLISH STORING THE MACHINE DRYFT’s compact design means that it is easy to store. When storing DRYFT, you should follow the below guidance: Remove the battery from the When storing, ensure the recovery tank and the... -
Page 31: Scheduled Maintenance Table
Recovery tank empty & cleaning Squeegee blade wear check Solution filter cleaning & check Squeegee blade replacement Pad holder replacement Brush motor check Brush deck vibration-damper check Vac motor check (*) Maintenance procedure must be performed by an authorized Nilfisk Service Center. DRYFT-58002111 12/2024... -
Page 32: Troubleshooting
Feedback Visual CORE-ion: Lower Battery Low battery segment flashes for 10 seconds Motor doesn’t start DRYFT: (Brush motor, IC feedback) - Brush motor (1 LED) / Lock is detected (likely - Fault detection LED jammed) (Flashing illumination) DRYFT: Under current... -
Page 33: Scrapping
Machine material composition and recyclability data 99.94% of machine accepted for recycling 71.60% of machine likely to be recycled (*based on 2024 recyclable efficiency percentage rates) Recyclable Efficiency % % Weight of DRYFT Type (Industry estimates [§] % Weight of DRYFT... - Page 34 HEAD QUARTER GREECE SINGAPORE Nilfisk A.E. Den-Sin Tel.: (30) 210 9119 600 Tel.: (+65) 6268 1006 DENMARK Nilfisk A/S www.nilfisk.gr www.densin.com Tel.: (+45) 4323 8100 www.nilfisk.com HOLLAND SLOVAKIA Nilfisk B.V. Nilfisk s.r.o. SALES COMPANIES Tel.: (+31) 036 5460760 Tel.: (+421) 910 222 928 www.nilfisk.nl www.nilfisk.sk ARGENTINA...
