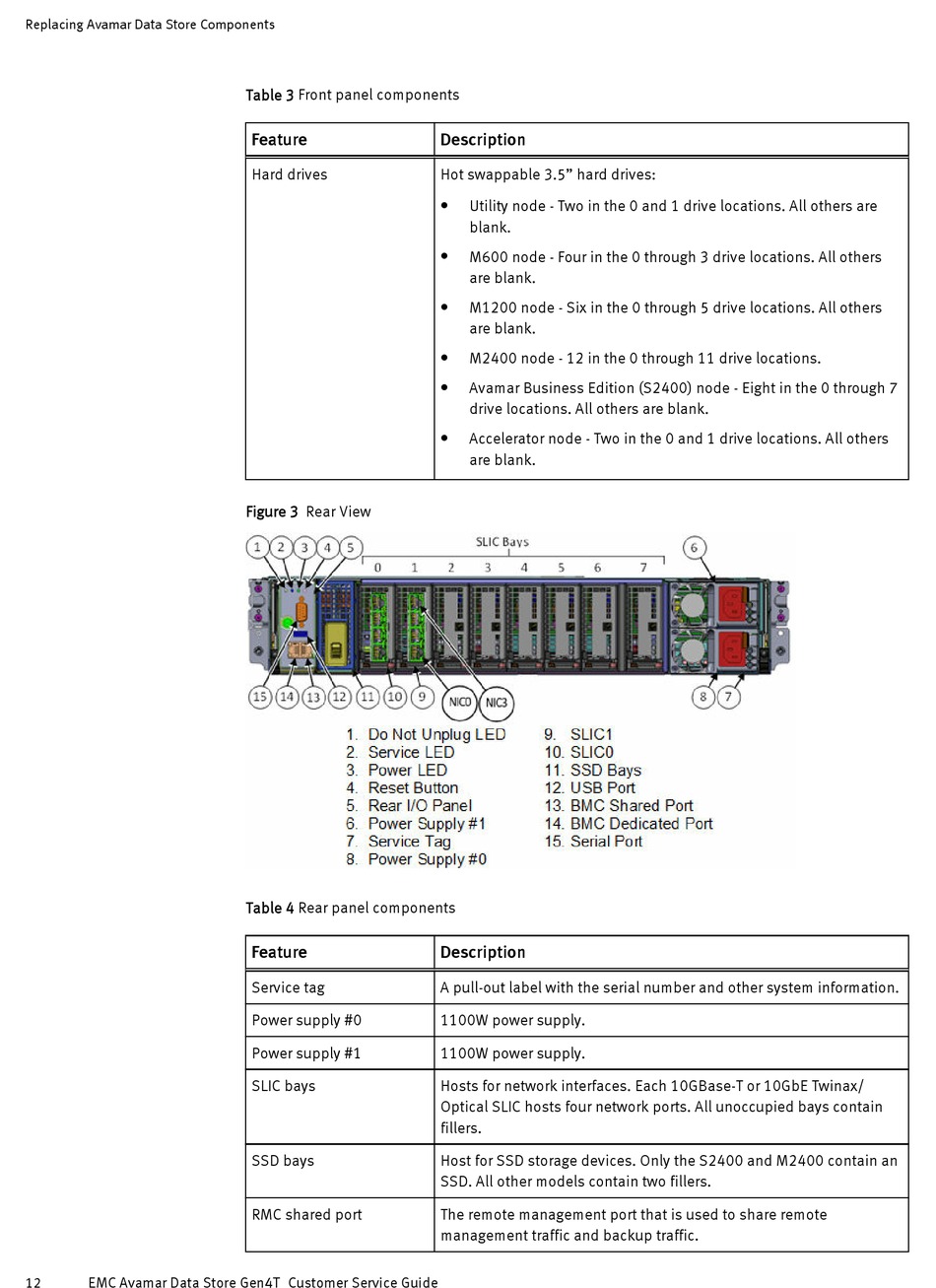

Replacing Avamar Data Store Components
EMC Avamar Data Store Gen4T Customer Service Guide
12
Table 3 Front panel components
Feature
Hard drives
Figure 3 Rear View
Table 4 Rear panel components
Feature
Service tag
Power supply #0
Power supply #1
SLIC bays
SSD bays
RMC shared port
Description
Hot swappable 3.5" hard drives:
Utility node - Two in the 0 and 1 drive locations. All others are
l
blank.
M600 node - Four in the 0 through 3 drive locations. All others
l
are blank.
M1200 node - Six in the 0 through 5 drive locations. All others
l
are blank.
M2400 node - 12 in the 0 through 11 drive locations.
l
Avamar Business Edition (S2400) node - Eight in the 0 through 7
l
drive locations. All others are blank.
Accelerator node - Two in the 0 and 1 drive locations. All others
l
are blank.
Description
A pull-out label with the serial number and other system information.
1100W power supply.
1100W power supply.
Hosts for network interfaces. Each 10GBase-T or 10GbE Twinax/
Optical SLIC hosts four network ports. All unoccupied bays contain
fillers.
Host for SSD storage devices. Only the S2400 and M2400 contain an
SSD. All other models contain two fillers.
The remote management port that is used to share remote
management traffic and backup traffic.
