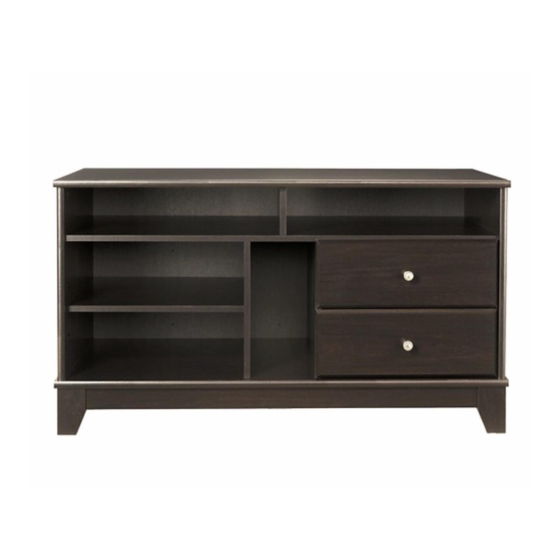

47" Espresso
Gaming TV Stand
NS-13SGAM
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS: PARTS.....................................3
PACKAGE CONTENTS: HARDWARE..........................5
ASSEMBLY INSTRUCTIONS.........................................6
CARE AND MAINTENANCE...................................... 24
USER GUIDE

Advertisement

loading

Related Manuals for Insignia NS-13SGAM

Summary of Contents for Insignia NS-13SGAM

  • Page 1: Table Of Contents

    USER GUIDE 47” Espresso Gaming TV Stand NS-13SGAM SAFETY INFORMATION AND SPECIFICATIONS..2 PACKAGE CONTENTS: PARTS........3 PACKAGE CONTENTS: HARDWARE......5 ASSEMBLY INSTRUCTIONS.........6 CARE AND MAINTENANCE........24 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Safety Information And Specifications

    47” ESPRESSO GAMING TV STAND SAFETY INFORMATION AND SPECIFICATIONS CAUTION: The top surface of this stand Model #: NS-13SGAM is designed for use with a product weighing no more than 95 lbs. (43 kg) and having a width that Maximum weight: 95 lbs. (43 kg)

  • Page 3: Package Contents: Parts

    47” ESPRESSO GAMING TV STAND Tools needed: Phillips screwdriver Hammer PACKAGE CONTENTS: PARTS A Right end (1) B Left end (1) C Right upright (1) E Upright (1) F Top (1) D Left upright (1) G Bottom (1) H Shelf (1) www.insigniaproducts.com...
  • Page 4 47” ESPRESSO GAMING TV STAND PACKAGE CONTENTS: PARTS (CONTINUED) I Back (1) J Adjustable shelf (1) K Front skirt (1) L Side skirt (2) R Left front/right S Right front/left T Center rear foot (2) rear foot (2) foot (2) M Drawer front (2) D16 Right drawer D17 Left...

  • Page 5: Package Contents: Hardware

    47” ESPRESSO GAMING TV STAND PACKAGE CONTENTS: HARDWARE Note: You may receive extra hardware. Make sure you have all the hardware necessary to assemble your new TV stand: Label Hardware Qty. Label Hardware Qty. Right drawer rail Knob Side cam Left drawer rail Cam cover Metal pin...

  • Page 6: Assembly Instructions

    47” ESPRESSO GAMING TV STAND ASSEMBLY INSTRUCTIONS Step 1: Assemble the ends and uprights Note: Assemble your TV stand on carpeted floor or on the empty carton to avoid scratching your stand or the floor. 1 Push two hidden cams (Y2) into the right end (A), left end (B), and right upright (C) and four hidden cams in the shelf (H).
  • Page 7 47” ESPRESSO GAMING TV STAND Step 2: Attaching the drawer rails • Fasten the two right drawer rails (U) to the right end (A) and the two left drawer rails (V) to the right upright (C) using two gold 5/16" flat head screws (OO) per rail. Rounded Roller edge...
  • Page 8 47” ESPRESSO GAMING TV STAND Tip: How to tighten hidden cams In the remaining steps, use these illustrations for instructions on tightening hidden cams. Warning: Risk of damage or injury. Hidden cams must be completely tightened. Hidden cams that are not completely tightened will loosen, and parts may separate.
  • Page 9 47” ESPRESSO GAMING TV STAND Step 3 Attach the top to the left end 1 Identify the rounded edge on the left end (B) and the top (F) and the finished edge on the upright (E). Make sure these edges face the same direction. 2 Place the top (F) face down, then insert the cam dowels on the left end (B) into the holes on the top (F).
  • Page 10 47” ESPRESSO GAMING TV STAND Step 4 Attach the shelf 1 Make sure that the side of the shelf (H) with the hidden cams faces up, and the finished edge faces the same direction as the finished edge on the upright (E). 2 Insert the cam dowels on the edge of the shelf (H) into holes on the left end (B), then use a Phillips screwdriver to tighten the hidden cams in the shelf (H).
  • Page 11 47” ESPRESSO GAMING TV STAND Step 5: Install the uprights 1 Make sure that the finished edge on the right upright (C) and on the left upright (D) faces the same direction as the finished edge on the shelf (H). 2 Insert the two cam dowels on the right upright (C) into the holes on the shelf (H), then use a Phillips screwdriver to tighten the hidden cams on the right upright (C).
  • Page 12 47” ESPRESSO GAMING TV STAND Step 6: Install the right end 1 Make sure that the side of right end (A) that has the rails attached faces the center of your TV stand. 2 Insert the cam dowels on the edge of the right end (A) into the holes on the top (F), and insert the cam dowels on the edge of the shelf (H) into the holes on the right end (A).
  • Page 13 47” ESPRESSO GAMING TV STAND Step 7: Install the bottom 1 Make sure that the rounded edge on the bottom (G) faces forward. 2 Fasten the bottom (G) to the ends (A and B) and uprights (C and D) using eight black 1-15/16" flat head screws (KK).
  • Page 14 47” ESPRESSO GAMING TV STAND Step 8: Install the corner brackets 1 Fasten four corner brackets (CC) to the feet (R and S) using two black 9/16” large head screws (NN) per bracket. 2 Make sure that the narrow edges of the feet (R and S) face the same direction as the finished edges of the side skirts (L).
  • Page 15 47” ESPRESSO GAMING TV STAND Step 9: Install the skirts 1 Insert a metal pin (HH) into each end of the front skirt (K). 2 Align the front skirt (K) to the front edge of the bottom (G), then insert the ends of the metal pins into the feet (R and S).
  • Page 16 47” ESPRESSO GAMING TV STAND Step 10: Install the skirt brackets and the foot 1 Fasten three metal brackets (DD) to the bottom (G) and front skirt (K) using two black 9/16" large head screws (NN) per bracket. 2 Fasten the foot bracket (BB) to the bottom (G) using three black 9/16" large head screws (NN). 3 Slide the two center feet (T) onto the foot bracket (BB).
  • Page 17 47” ESPRESSO GAMING TV STAND Step 11: Install the back 1 Carefully turn your TV stand over onto its front edges. Unfold the back (I) and lay it over your TV stand. 2 Make equal margins along all four edges of the back (I). Push on opposite corners of your TV stand if needed to make it “square.
  • Page 18 47” ESPRESSO GAMING TV STAND Step 12: Assemble the drawer 1 Insert the tab on the right drawer side (D16) at an angle into the slot on the right side of a drawer front (M). The tab should easily fit into the slot. Gently tilt the drawer side (D16) from side to side until the tab slips into the slot.
  • Page 19 47” ESPRESSO GAMING TV STAND Step 13: Assemble the drawer (continued) 1 Fasten a drawer back (D73) to the drawer sides (D16 and D17) using four black 1-9/16" flat head screws (LL). Note: Make sure that the drawer bottom (D720) inserts into the groove in the drawer back (D73). 2 Repeat this step for the other drawer.
  • Page 20 47” ESPRESSO GAMING TV STAND Step 14: Attach the drawer slides 1 Insert a slide cam (FF) into the drawer sides (D16 and D17). 2 Fasten the drawer slides (W and X) to the drawer sides (D16 and D17) using two gold 5/16" flat head screws (OO) per slide.
  • Page 21 47” ESPRESSO GAMING TV STAND Step 15: Attach the drawer knob 1 From the front of the drawer, align the knob (EE) over the hole in the drawer front (M), then fasten a knob (EE) to the drawer front (M) using a gold 1" machine screw (MM). 2 Repeat this step for the other drawer.
  • Page 22 47” ESPRESSO GAMING TV STAND Step 16: Install the metal shelf pins and the drawers, and attach the warning label 1 Carefully stand your TV stand upright. 2 Push the rubber sleeves (II) over the four remaining metal pins (HH). Insert the metal pins into the hole locations of your choice in the left end (B) and left upright (D).
  • Page 23 47” ESPRESSO GAMING TV STAND Step 17: Adjust the drawers Note: Adjusting the drawers helps the drawer fronts line up better when the drawers are closed. 1 Loosen the #3 screws in the drawer slides a 1/4 turn, then turn the cams clockwise or counterclockwise. Notice how the drawer raises or lowers as you turn the cams.

  • Page 24: Care And Maintenance

    47” ESPRESSO GAMING TV STAND CARE AND MAINTENANCE Wood/Laminate • Use your favorite type of furniture polish. • Do not spray polish directly onto the stand. Spray onto a soft cloth then wipe the stand. • Always test any polish in a discrete location first, such as the back of the stand, to make sure that there is no adverse reaction.
  • Page 25 FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN Insignia and are not returned to you. If service of Products or DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND parts are required after the Warranty Period expires, you must NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY pay all labor and parts charges.
  • Page 26 Lot number: 361848 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
