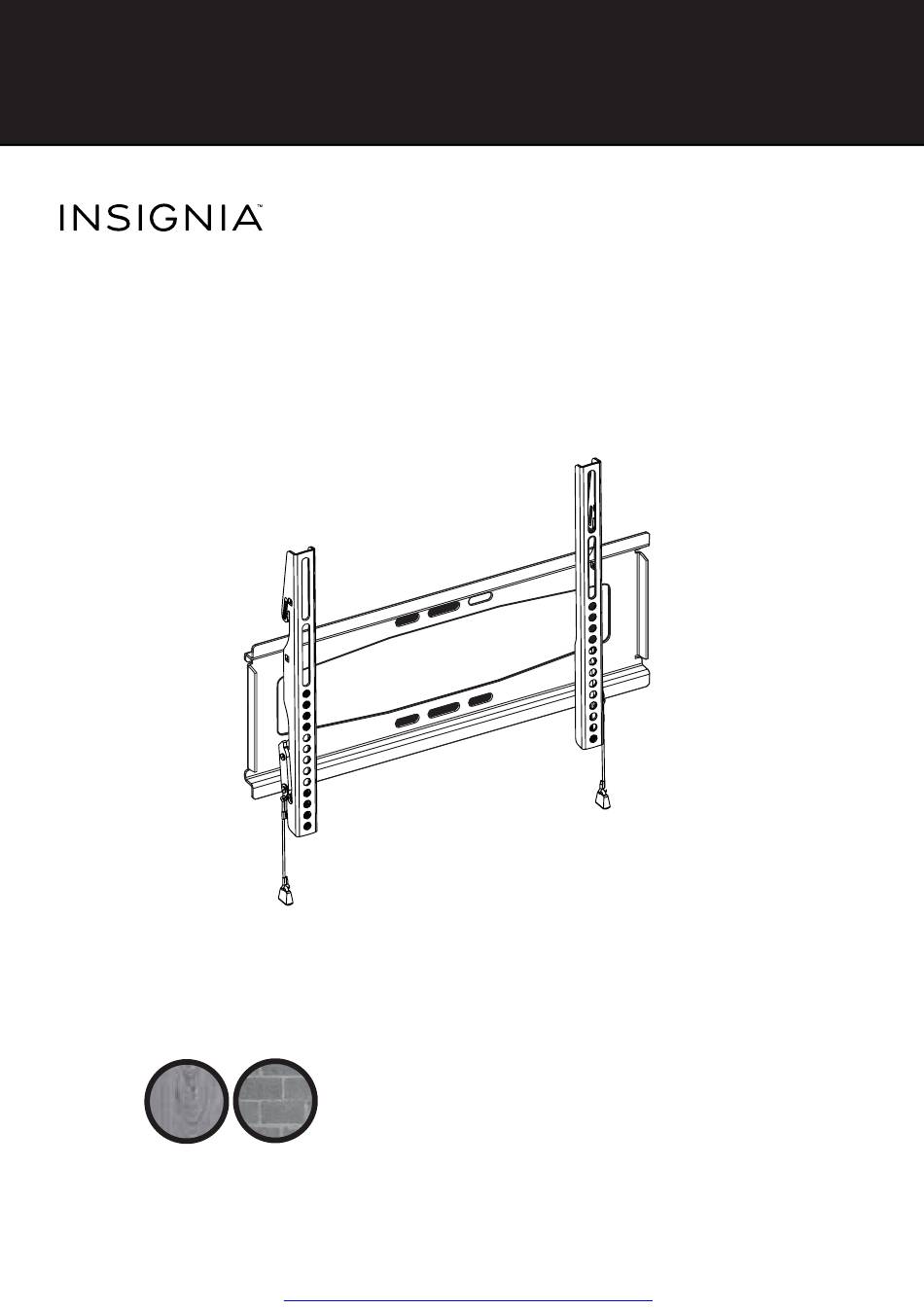

FIXED-POSITION WALL MOUNT FOR
TVs 19-39 in.
NS-TVMFP12
For either wood-stud or
concrete wall installations
Before using your new product, please read these instructions to prevent any damage.
IN STA L LATI ON G UIDE
Get other manuals https://www.bkmanuals.com
Tools needed. . . . . . . . . . . . . . . . . . . . . . . . . . .3
Package contents . . . . . . . . . . . . . . . . . . . . . .3
Installation instructions. . . . . . . . . . . . . . . . .5
Advertisement
Related Manuals for Insignia NS-TVMFP12
Summary of Contents for Insignia NS-TVMFP12
- Page 1 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. NS-TVMFP12 Safety information and specifications . . .2 Tools needed......3...
-
Page 2: Safety Information And Specifications
Customer Service or call a qualified contractor. Insignia is not responsible for damage or injury caused by incorrect installation or use. The weight of your TV must not exceed 50 lbs. (22.7 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined. -
Page 3: Tools Needed
FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. Tools needed You will need the following tools to assemble your new TV wall mount: ardware Level Drill Edge-to-edge stud finder Phillips screwdriver 7/32 in. (5.5 mm) wood drill bit Socket wrench with 1/2 in. (for wood stud wall) (13 mm) socket or adjustable wrench... - Page 4 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. TV Hardware Bag Label Hardware Qty. Label Hardware Qty. M4 × 12 mm M6 × 35 mm screw screw M4 × 35 mm screw M8 × 16 mm screw M4/M5 washer M8 × 20mm screw M6/M8 washer Spacers...
-
Page 5: Installation Instructions
FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. Installation instructions STEP 1 - Determine whether your TV has a flat back or an irregular or obstructed back Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. - Page 6 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. STEP 2 - Select screws, washers, and spacers Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV requires, test various sizes by hand threading the screws.
- Page 7 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back Align the left and right TV brackets (B and C) with the screw holes on the back of the TV. Make sure that the brackets are level.
- Page 8 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs Align the left and right TV brackets (B and C) with the screw holes on the back of the TV. Make sure that the brackets are level.
- Page 9 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. STEP 4 - Determine wall-mount location Notes: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen. This is normally 40 to 60 in.
- Page 10 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. STEP 5 - Option 1: Installing on a wood stud wall* Note: Any drywall covering the wall must not exceed 5/8 in. (16 mm). Locate the stud. Verify the center of the stud with an edge-to-edge stud finder. Align the wall plate template (P) at the height you determined in the previous step (or by using the HeightFinder mentioned on the template), make sure that it is level, then tape it to the wall.
- Page 11 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. STEP 5 - Option 2: Installing on a solid concrete or concrete block wall* CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount wall plate directly onto the concrete surface. Align the wall plate template (P) at the height you determined in the previous step (or by using the HeightFinder mentioned on the template), make sure that it is level, then tape it to the wall.
- Page 12 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. STEP 6 - Mounting the TV to the wall plate Holding the TV with the top of the screen tilted toward the wall, slide the upper notches of the right and left TV brackets (B and C) over the upper lip of the wall plate (A). Push the bottom of the TV toward the wall until the latch mechanism clicks into place.
- Page 13 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. Removing the TV from the wall plate Grasp the TV by the bottom edge, then pull down on the locking cords and pull the bottom of the TV out from the wall. Release the locking cords and lift the top of the TV from the wall bracket. HEAVY! You will need assistance with this step.
- Page 14 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. www.insigniaproducts.com Get other manuals https://www.bkmanuals.com...
- Page 15 Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you.
- Page 16 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
- Page 17 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. www.insigniaproducts.com Get other manuals https://www.bkmanuals.com...
- Page 18 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. www.insigniaproducts.com Get other manuals https://www.bkmanuals.com...
- Page 19 FIXED-POSITION WALL MOUNT FOR TVs 19-39 in. www.insigniaproducts.com Get other manuals https://www.bkmanuals.com...
- Page 20 Part # 6907-002088 00 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
