Summary of Contents for Insignia NS-SMMT2B5

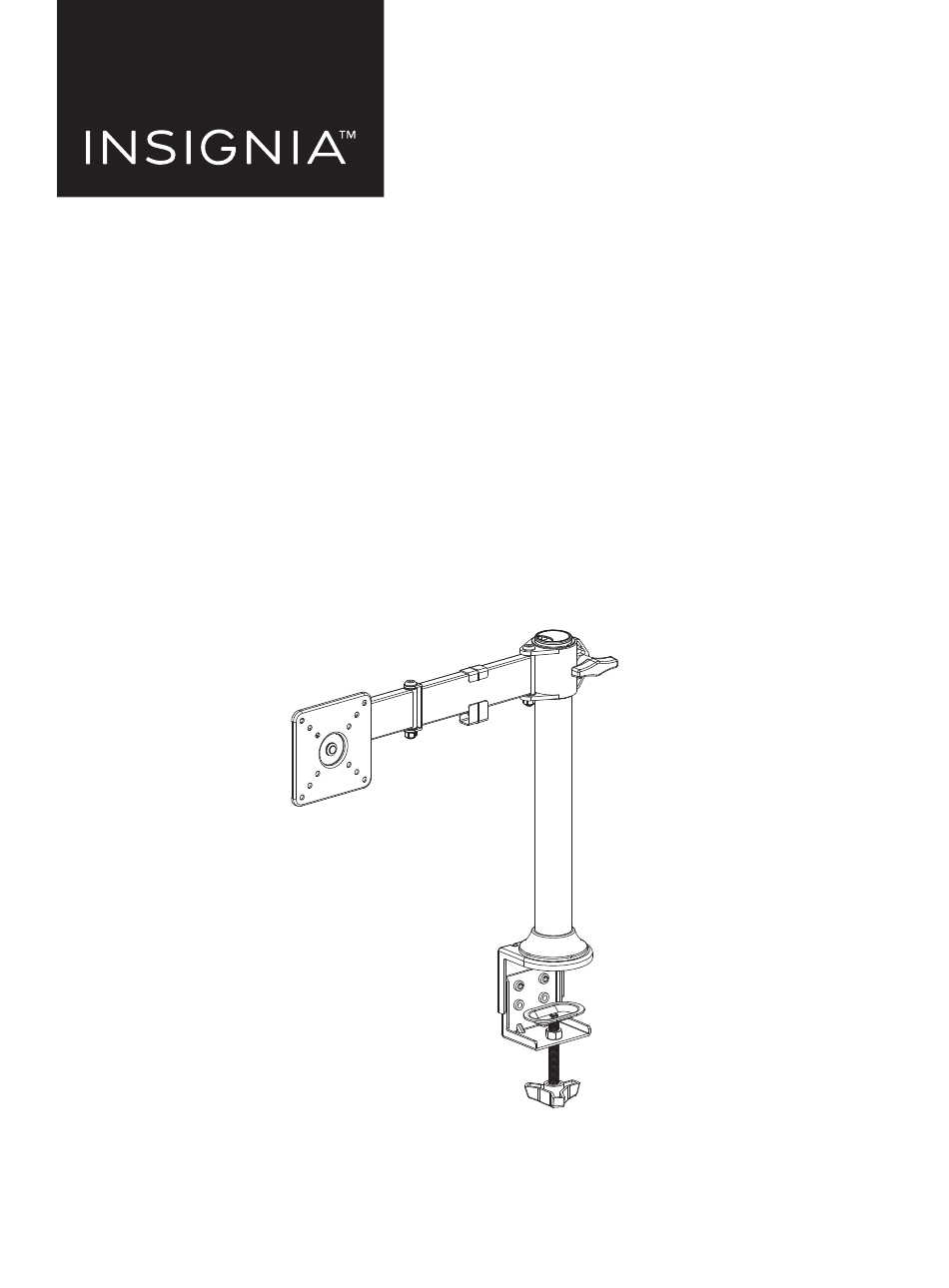

- Page 1 ASSEMBLY GUIDE Desktop Mount for Monitors up to 35 in. NS-SMMT2B5/NS-SMMT2B5-C Before using your new product, please read these instructions to prevent any damage.
- Page 2 ONE-YEAR LIMITED WARRANTY ..............13 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-SMMT2B5/NS-SMMT2B5-C represents the state of the art in monitor mount design and is designed for reliable and trouble-free performance.
- Page 3 Desktop Mount for Monitors up to 35 in. Features • SPCC (Steel Plate Cold Commercial) and aluminum construction holds up to 26 lbs. (11.8 kg) and works with desks 0.39 to 3.15 in. (10 to 80 mm) thick • Adjustable positioning tilts (+/- 45°) and swivels (+/- 90°) your display •...
- Page 4 Package contents Parts Make sure that you have all the parts necessary to assemble your new monitor mount: 01 - Monitor connecting arm (1) 02 - Cable clips (2) 03 - Monitor support base (1) Hardware Make sure that you have all the hardware necessary to assemble your new monitor mount: A 5 mm Allen key (1) B M4 x 12 mm (4) C M5 x 12 mm (4)
- Page 5 Desktop Mount for Monitors up to 35 in. Installation instructions STEP 1: Preparing your monitor 1 Make sure that your monitor has screw holes on the back for VESA mounting. You can use a monitor with VESA mounting patterns of 50 × 50 mm (1.96 × 1.96 in.), 75 × 75 mm (2.95 × 2.95 in.), or 100 × 100 mm (3.9 × 3.9 in.). 50 ×...
- Page 6 2 To change the height adjustment of the base clamp, remove the screws holding the support column to the support base with the 5 mm Allen key (A), move the support column to accommodate the thickness of your desktop, then reinstall the screws.
- Page 7 Desktop Mount for Monitors up to 35 in. 4 Tighten the base clamp securely to hold it in place. Tighten Base clamp Loosen STEP 4: Installing the monitor connecting arm 1 Loosen (counterclockwise) the monitor connecting arm locking screw, then place the monitor connecting arm (01) over the monitor support base (03).
- Page 8 STEP 5: Removing the monitor plate 1 Loosen (counterclockwise) the locking screw, then remove it from the monitor connecting arm (01). Locking screw 2 Remove the monitor plate from the monitor connecting arm (01). Monitor plate www.insigniaproducts.com...
- Page 9 Desktop Mount for Monitors up to 35 in. STEP 6: Attaching the monitor to the monitor plate Notes: • Monitors can be oriented either horizontally or vertically. • Choose the proper screw/washer/spacer combination that accommodates your particular monitor. • The M8 x 2.5 mm spacer (J) can be used with M6 screws (D and G) by removing the inner circle. Depending on the VESA screw holes on the back of your monitor, you need to use the correct sized mounting screws (B, C, D, E, F, or G), washers (H), and the correct spacers (I or J).
- Page 10 2 Reinstall the locking screw (clockwise) that you removed in Step 5, and tighten it securely. Locking screw STEP 8: Installing the cable clips and managing cables 1 Install the cable clips (02) on the monitor connecting arm (01). www.insigniaproducts.com...
- Page 11 Desktop Mount for Monitors up to 35 in. 2 Run monitor video and power cables up through the support tube and out the top through the monitor support base (03), then align the cables on the back side of the monitor arm and secure them in place with the cable clips (02). Note: There is a cable hole in the top of the monitor support base (03) Cable hole Cable clips (02)
- Page 12 Specifications Dimensions HxWxD 21.26-24.41 x 21.1 x 4.69 in. (54-62 x 53.6 x 11.9 cm) Weight 6.6 lbs. (3 kg) Monitor size - landscape Compatible up to 35 inch Monitor size - portrait Compatible up to 28 inch Max load capacity 26 lbs.
- Page 13 During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
- Page 14 Contact Insignia: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. *Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A ©2025 Best Buy. All rights reserved. www.insigniaproducts.com...
- Page 15 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V4 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 25-0058...
