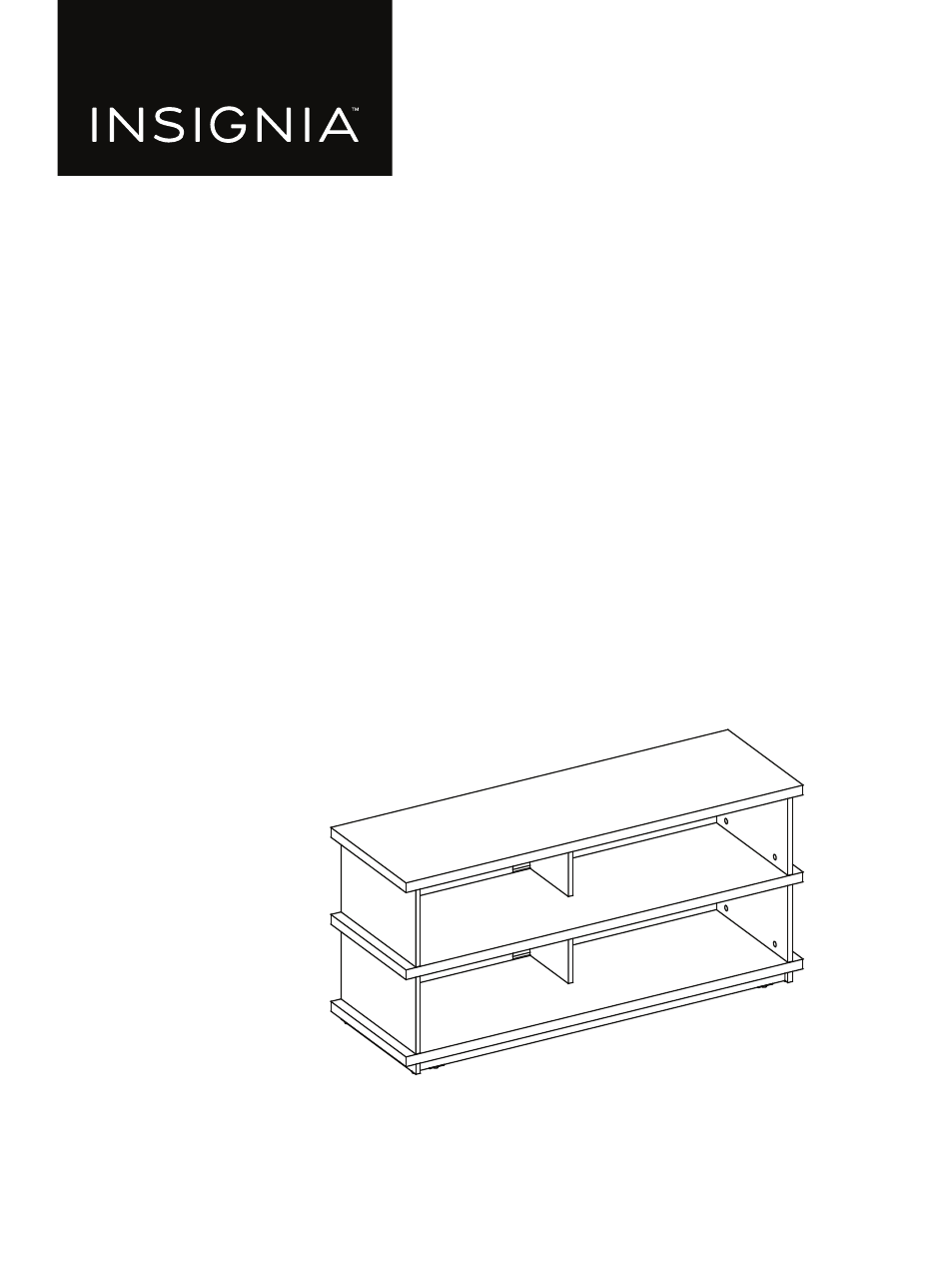

  • Page 1 ASSEMBLY GUIDE 47.5 in. TV Stand NS-STV555 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    Contents IMPORTANT SAFEGUARDS ................3 Features .

  • Page 3: Important Safeguards

    47.5 in. TV Stand IMPORTANT SAFEGUARDS WARNING Some steps are more easily handled with two adults. CAUTION The top surface of this TV stand is designed for use with a product weighing no more than 70 lbs. (31.75 kg) and having a width that permits it to sit evenly on the TV stand with no more than a one-inch overhang on each side of the shelf.

  • Page 4: Features

    Features • 47.5 in. (120.65) tabletop holds most TVs up to 55 in. (139.7 cm) and 70 lbs. (31.75 kg) • Large storage areas accommodate your DVD Player, gaming console, cable box, and more* • Cutouts make it easy to route and hide cords •...

  • Page 5: Package Contents

    47.5 in. TV Stand Package contents Parts A Top panel (1) B Media shelf (1) C Bottom panel (1) Note: Keep the stopper template attached. D Back panel (2) E Side panel (4) F Partition panel (2) G Base left stretcher (1) H Base right stretcher (1) I Base front stretcher (1) W Base back stretcher (1)

  • Page 6: Extra Hardware

    Extra hardware Cam lock Washer head screw Cam pin Wood dowel M8 x 30 mm M3.5 x 15 mm Pan head screw Cam lock cover Flat head screw Plastic holder M4 x 40 mm M3 x 17 mm Tools needed (not provided) For assembling the TV stand Phillips screwdriver...

  • Page 7: Installation Tips

    47.5 in. TV Stand Installation tips Gluing wood dowels (J) When using a wood dowel (J), put one drop of glue (T) in the hole before you insert the wood dowel (J). Insert the wood dowel (J), then gently tap it with a rubber mallet to secure it in place. Note: 1/3 of the dowel should remain exposed.

  • Page 8: Assembling Your Tv Stand

    Assembling your TV stand Tip: Assemble your TV stand on a carpeted floor or the empty TV stand carton to avoid scratching it. Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully tighten all bolts.
  • Page 9 47.5 in. TV Stand STEP 2: Preparing the side and partition panels You need: E Side panel (4) F Partition panel (2) J Wood dowel (24) T Glue (1) • Glue wood dowels (J) into the drilled inner holes on the ends of the panels (E and F). www.insigniaproducts.com...
  • Page 10 STEP 3: Attaching two side panels and one partition to the top You need: A Top panel (1) E Side panel (2) F Partition panel (1) L Cam lock (6) Phillips screwdriver • Align and attach two side panels (E) and one partition panel (F) to the top panel (A) by engaging and tightening six cam locks (L).
  • Page 11 47.5 in. TV Stand STEP 4: Installing the upper back panel You need: D Back panel (1) • Align and slide one back panel (D) into the grooves on in the side panels (E) until fully inserted into the top panel (A). Groove www.insigniaproducts.com...
  • Page 12 STEP 5: Installing the media shelf You need: B Media shelf (1) L Cam lock (6) Phillips screwdriver • Align and attach the media shelf (B) to both side panels (E) and the partition panel (F) by engaging and tightening six cam locks (L).
  • Page 13 47.5 in. TV Stand STEP 6: Preparing the lower side panels and partition panel You need: K Cam pin (6) Phillips screwdriver • Securely screw six cam pins (K) into the indicated holes in the media shelf (B), using a Phillips screwdriver. www.insigniaproducts.com...
  • Page 14 STEP 7: Attaching the lower side panels and partition to the media shelf You need: E Side panel (2) F Partition panel (1) L Cam lock (6) Phillips screwdriver • Align and attach the remaining two side panels (E) and one partition (F) to the media shelf (B) by engaging and tightening six cam locks (L).
  • Page 15 47.5 in. TV Stand STEP 8: Installing the lower back panel You need: D Back panel (1) • Align and slide the lower back panel (D) into the grooves on both side panels (E) until fully inserted into the media shelf (B).
  • Page 16 STEP 9: Attaching the bottom panel You need: C Bottom panel (1) L Cam lock (6) Phillips screwdriver • Align and attach the bottom panel (C) to both side panels (E) and the partition (F) by engaging and tightening six cam locks (L).
  • Page 17 47.5 in. TV Stand STEP 10: Preparing the base side stretchers You need: G Base left stretcher (1) H Base right stretcher (1) K Cam pins (4) Phillips screwdriver • Securely screw four cam pins (K) into the indicated holes in the base stretchers (G and H), using a Phillips screwdriver. www.insigniaproducts.com...
  • Page 18 STEP 11: Preparing the base stretchers You need: G Base left stretcher (1) H Base right stretcher (1) I Base front stretcher (1) T Glue (1) J Wood dowel (8) W Base back stretcher (1) • Glue eight wood dowels (J) into the indicated holes in the base stretchers (G, H, I, and W). www.insigniaproducts.com...
  • Page 19 47.5 in. TV Stand STEP 12: Assembling the base stretchers You need: L Cam lock (4) Phillips screwdriver • Align and attach the base front and back stretchers (I and W) between the base side stretchers (G and H) by engaging and tightening four cam locks (L).
  • Page 20 STEP 13: Attaching the assembled base to the bottom shelf You need: N Pan head screw M4 x 40 mm (12) Phillips screwdriver • Align and attach the assembled base (G, H, I, and W) to the bottom panel (C) with twelve M4 x 40 mm pan head screws (N).
  • Page 21 47.5 in. TV Stand STEP 14: Fastening the back panels to the partitions You need: M Washer head screw M3.5 x 15 mm (2) Phillips screwdriver • Insert two M3.5 x 15 mm washer head screws (M) through the pre-drilled holes in the back panels (D) and screw them into the partition panels (F) using a Phillips screwdriver.
  • Page 22 STEP 15: Fastening the back panels to the shelves and sides You need: Q Plastic holders (16) R Flat head screw M3 x 17 mm (16) Phillips screwdriver 1 Insert sixteen plastic holders (Q) evenly into the gaps between the back panels (D) and the panels (A, B, C, and E) as shown.
  • Page 23 47.5 in. TV Stand STEP 16: Installing the cam lock covers You need: P Cam lock cover (24) 1 Turn the unit upright (with assistance) and position it near the final location. 2 Place the cam lock covers (P) over the visible cam locks (L) to conceal the cams. www.insigniaproducts.com...
  • Page 24 STEP 17: Installing the stopper(s) on the top panel You need: S Acrylic stopper (2) Pliers If you place your TV on top of your TV stand, you must follow these instructions to prevent your TV from tipping. Otherwise, skip to STEP 18: Positioning the TV stand and installing the tipping restraints on page 25. If your TV has one leg 1 Remove the paper backing from the bottom of the stopper (S), then place it in the stopper cut-out of the template on the top panel (A).
  • Page 25 47.5 in. TV Stand STEP 18: Positioning the TV stand and installing the tipping restraints You need: V Tipping restraint (2) Phillips screwdriver 1/8" drill bit Rubber mallet Power drill 1 Position the assembled TV stand against the wall where you plan to use it. 2 Adjust the leveling feet to level the TV stand.

  • Page 26: Maintaining Your Tv Stand

    Maintaining your TV stand Wood/Laminate • Use your favorite type of furniture polish. • Do not spray polish directly onto the TV stand. Spray onto a soft cloth, then wipe the TV stand. • Always test any polish in a discrete location first, such as the back of the TV stand, to make sure that there is no adverse reaction.

  • Page 27: One-Year Limited Warranty

    During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 28 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V2 ENGLISH ©2024 Best Buy. All rights reserved.
