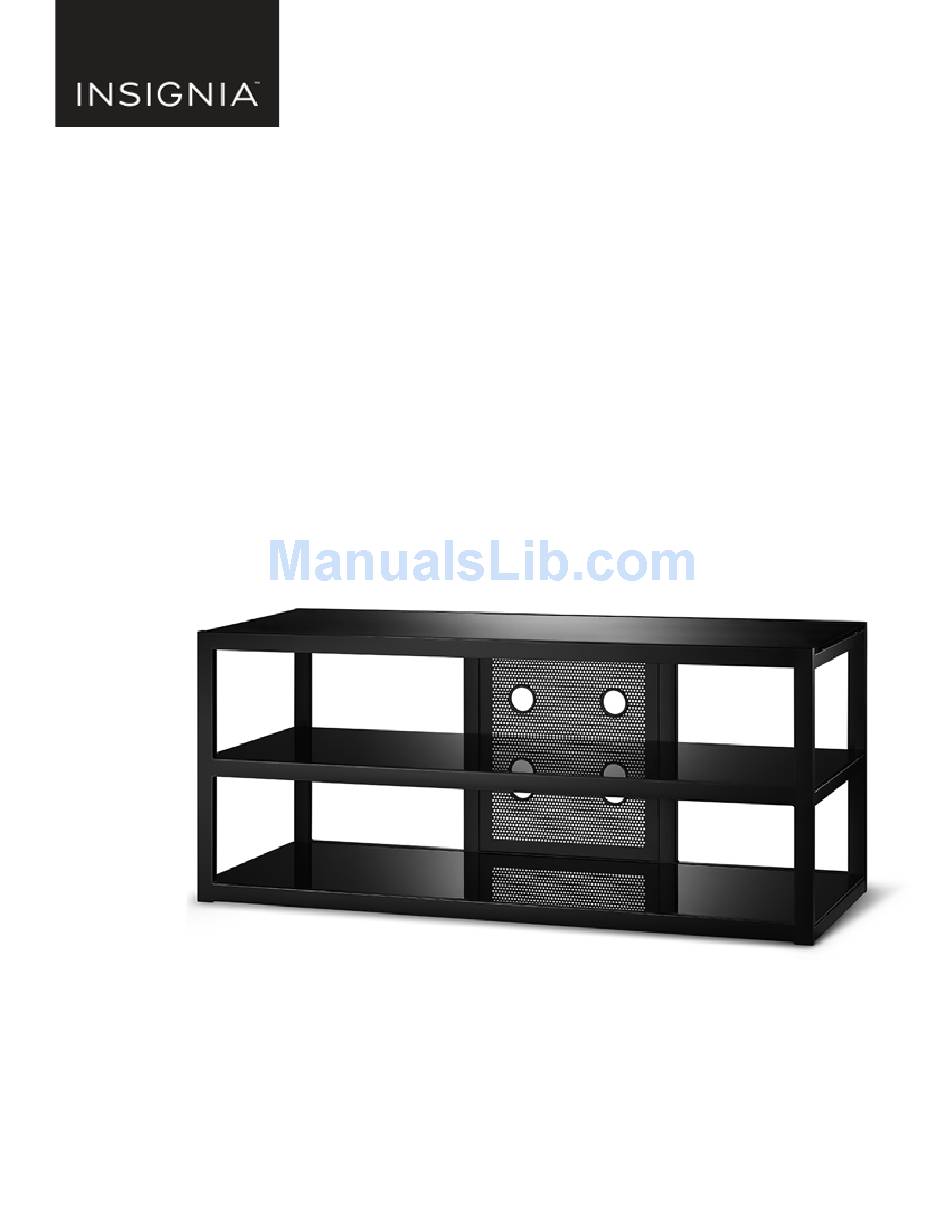

Metal and Glass TV
Stand for TVs up to 65"
or 110 lbs.
NS-HMG1856
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS: PARTS..........................................3
PACKAGE CONTENTS: HARDWARE ..............................4
ASSEMBLY INSTRUCTIONS.............................................. 5
CARE AND MAINTENANCE .......................................... 11
USER GUIDE

Advertisement

loading

Related Manuals for Insignia NS-HMG1856

Summary of Contents for Insignia NS-HMG1856

  • Page 1: Table Of Contents

    USER GUIDE Metal and Glass TV Stand for TVs up to 65” or 110 lbs. NS-HMG1856 SAFETY INFORMATION AND SPECIFICATIONS..2 PACKAGE CONTENTS: PARTS..........3 PACKAGE CONTENTS: HARDWARE ......4 ASSEMBLY INSTRUCTIONS..........5 CARE AND MAINTENANCE .......... 11 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Safety Information And Specifications

    NS-HMG1856 SAFETY INFORMATION AND SPECIFICATIONS CAUTION: The top surface of this stand is Maximum weight designed for use with a product weighing no Top shelf: 110 lbs. (50 kg) more than 110 lbs. (50 kg) and having a width Middle/Bottom shelf: 50 lbs. (22.7 kg)

  • Page 3: Package Contents: Parts

    Metal and Glass TV Stand Tools needed: Phillips screwdriver PACKAGE CONTENTS: PARTS Make sure that you have all the parts necessary to assemble your new TV stand. A Top glass shelf (Qty. 1) D Back frame (Qty. 1) B Lower glass shelf (Qty. 2) E Side frame (Qty.

  • Page 4: Package Contents: Hardware

    NS-HMG1856 PACKAGE CONTENTS: HARDWARE Make sure that you have all the hardware necessary to assemble your new TV stand. Label Hardware Qty. Label Hardware Qty. 5/8” pan head Metal bracket screw Cable Glass spacer management clip Allen wrench 1/2” bolt 1/2”...

  • Page 5: Assembly Instructions

    Metal and Glass TV Stand ASSEMBLY INSTRUCTIONS Step 1: Attach the metal brackets 1 Attach four metal brackets (G) to each of the side frames (E) with four 1/2” pan head screws (J) and a Phillips screwdriver. Make sure that the brackets face the bottom. BOTTOM 2 Attach two metal brackets (G) to the front frame (C) with two 1/2”...
  • Page 6 NS-HMG1856 Step 2: Attaching the connecting bars 1 Attach the four middle bars (F) to the back frame (D) with four 1/2” pan head screws (J), and a Phillips screwdriver. 2 Attach two metal brackets (G) to the back frame (D) with two 1/2” pan head screws (J) and a Phillips screwdriver.
  • Page 7 Metal and Glass TV Stand Step 3: Attach the front and back frames 1 Turn the back frame assembly upright. 2 Attach the four middle connecting bars (F) to the front frame (C) using four 1/2” pan head screws (J) and a Phillips screwdriver.
  • Page 8 NS-HMG1856 Step 4: Attaching the cable management clips • Attach the cable management clips (L) to the back frame using two 5/8” pan head screws (K) and a Phillips screwdriver. You can attach the clips to any of the four available holes.
  • Page 9 Metal and Glass TV Stand Step 5: Attach the glass spacers and suction cups 1 Peel off the 24 glass spacers (H) and stick them onto the side frames (E), middle bars (F), and metal brackets (G), as shown. 2 Push eight suction cups (N) into the holes in the middle bars (F). The metal brackets are on the bottom.
  • Page 10 NS-HMG1856 Step 6: Place the glass shelves 1 Slide a lower glass shelf (B) into the bottom of the assembly. 2 Slide a lower glass shelf (B) into the middle of the assembly. 3 Slide the top glass shelf (A) onto the top of the assembly.

  • Page 11: Care And Maintenance

    Metal and Glass TV Stand CARE AND MAINTENANCE Glass • Use a commercial liquid glass cleaner and a soft cloth. • Do not use harsh powders or any other abrasive substances as they will scratch the glass. WARNING Please use your stand correctly and safely. Improper use can cause safety hazards or damage to your furniture or household items. Carefully read the following chart.
  • Page 12 DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND Insignia and are not returned to you. If service of Products or NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY parts are required after the Warranty Period expires, you must AFTER THE WARRANTY PERIOD.
  • Page 13 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved.
