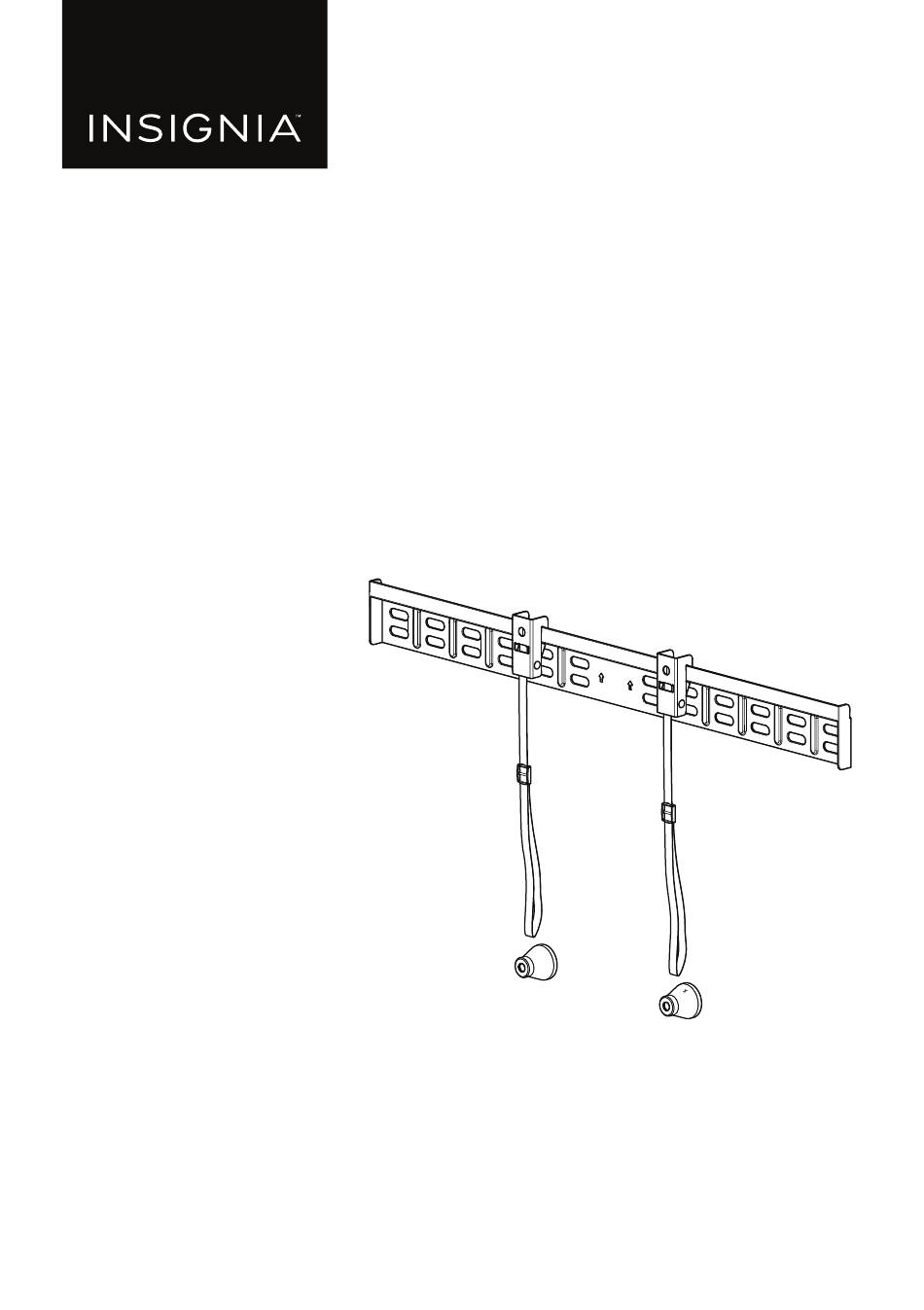

- Page 1 INSTALLATION GUIDE Fixed-Position Wall Mount for TVs 40–70 in. NS-HTVMF0C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Safety Information And Specifications
For customer service, call: Customer Service or call a qualified contractor. Insignia is not responsible for damage or injury 877-467-4289 (U.S./Canada markets) caused by incorrect installation or use. CAUTION: Do not exceed the maximum weight indicated. This mounting system is intended for use only with the maximum weights indicated. -
Page 3: Tools Needed
FIXED-POSITION WALL MOUNT FOR TVs 40-70 in. Tools needed You will need the following tools to assemble your new TV wall mount: ardware Socket wrench with 1/2 in. Edge-to-edge Pencil (13 mm) socket or adjustable stud finder wrench Phillips screwdriver Level Hammer Drill... -
Page 4: Tv Hardware Bag
TV Hardware Bag Label Hardware Qty. Label Hardware Qty. TV Standoff M8 × 35 mm screw M6 × 12 mm screw M6/M8 washer M8 × 16 mm screw Spacers M8 × 20 mm screw 5/16 in. × 2 3/4 in. lag bolt M6 ×... -
Page 5: Installation Instructions
FIXED-POSITION WALL MOUNT FOR TVs 40-70 in. Installation instructions STEP 1 - Determining whether your TV has a flat back or an irregular or obstructed back Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. - Page 6 STEP 2 - Select screws, washers, and spacers Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV requires, test various sizes by hand threading the screws.
- Page 7 FIXED-POSITION WALL MOUNT FOR TVs 40-70 in. STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back Align the left and right TV brackets (1) with the upper screw holes on the back of the TV. Make sure that the brackets are level.
- Page 8 STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs Place spacers (9) over the screw holes on the back of the TV. Align the left and right TV brackets (1) with the upper screw holes on the back of the TV. Make sure that the brackets are level.
- Page 9 FIXED-POSITION WALL MOUNT FOR TVs 40-70 in. STEP 4 - Determine wall-mount location Note: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen. This is normally 40 to 60 in.
- Page 10 STEP 5 - Option 1: Installing on a wood stud* wall Note: Any drywall covering the wall must not exceed 5/8 in. (16 mm). Locate the stud. Verify the center of the stud with an edge-to-edge stud finder. Align the center of the wall plate template (R) at the height (a + b - 1.5 in.) you determined in the previous step, make sure that it is level, then tape it to the wall.
- Page 11 FIXED-POSITION WALL MOUNT FOR TVs 40-70 in. • DO NOT over-tighten the lag bolts (11). * Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 11/2 x 31/2 in. (38 x 89 mm). * Minimum horizontal spacing between fasteners cannot be less than 16 in. (406 mm). Align the center of the template with the height mark (a+b) you made in step 4.
- Page 12 STEP 5 - Option 2: Installing on a solid concrete or concrete block wall (requires Concrete Installation Kit CMK1) CAUTION: To prevent property damage or personal injury, never drill into the mortar between the blocks. Mount the wall plate directly onto the concrete surface. Align the center of the wall plate template (R) at the height (a + b - 1.5 in.) you determined in the previous step, make sure that it is level, then tape it to the wall.
- Page 13 FIXED-POSITION WALL MOUNT FOR TVs 40-70 in. • DO NOT over-tighten the lag bolts (C1). Align the center of the template with the height mark (a+b) you made in step 4. 3 in. (75 mm) * Minimum solid concrete thickness: 8 in. (203mm) * Minimum concrete block size: 8 x 8 x 16 in.
- Page 14 STEP 6 - Mounting the TV to the wall plate Holding the TV with the top of the screen tilted toward the wall, slide the upper notches of the right and left TV brackets (1) over the upper lip of the wall plate (10). Push the bottom of the TV toward the wall until the latch mechanism clicks into place.
- Page 15 FIXED-POSITION WALL MOUNT FOR TVs 40-70 in. Removing the TV from the wall plate • Pull down and hold both release straps, then pull the bottom of the TV away from the wall and lift the assembly off the wall plate. HEAVY! You will need assistance with this step.
-
Page 16: One-Year Limited Warranty
Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. - Page 17 REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS.
- Page 18 Part Number: 6907-302037 www.insigniaproducts.com 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave. South, Richfield, MN 55423 U.S.A. V4 ENGLISH ©2020 Best Buy. All rights reserved.
