Connecting the 82357B to a USB hub

This section shows steps to connect the 82357B to a USB port on your PC via a
standard USB hub.
Any USB hub used with the 82357B MUST be self-powered (must not be
NOTE
bus-powered or powered from the USB bus). Also, be sure to check the
applicable USB hub documentation for hub operating parameters, such as
power requirements and maximum length of USB cables.
1 Plug the power adapter into the hub and into an electrical outlet. Make sure
2 Make sure your PC is ON. Connect the USB cable of the USB hub to any
3 Plug at least one 82357B USB/GPIB Interface into the port of the USB hub. It

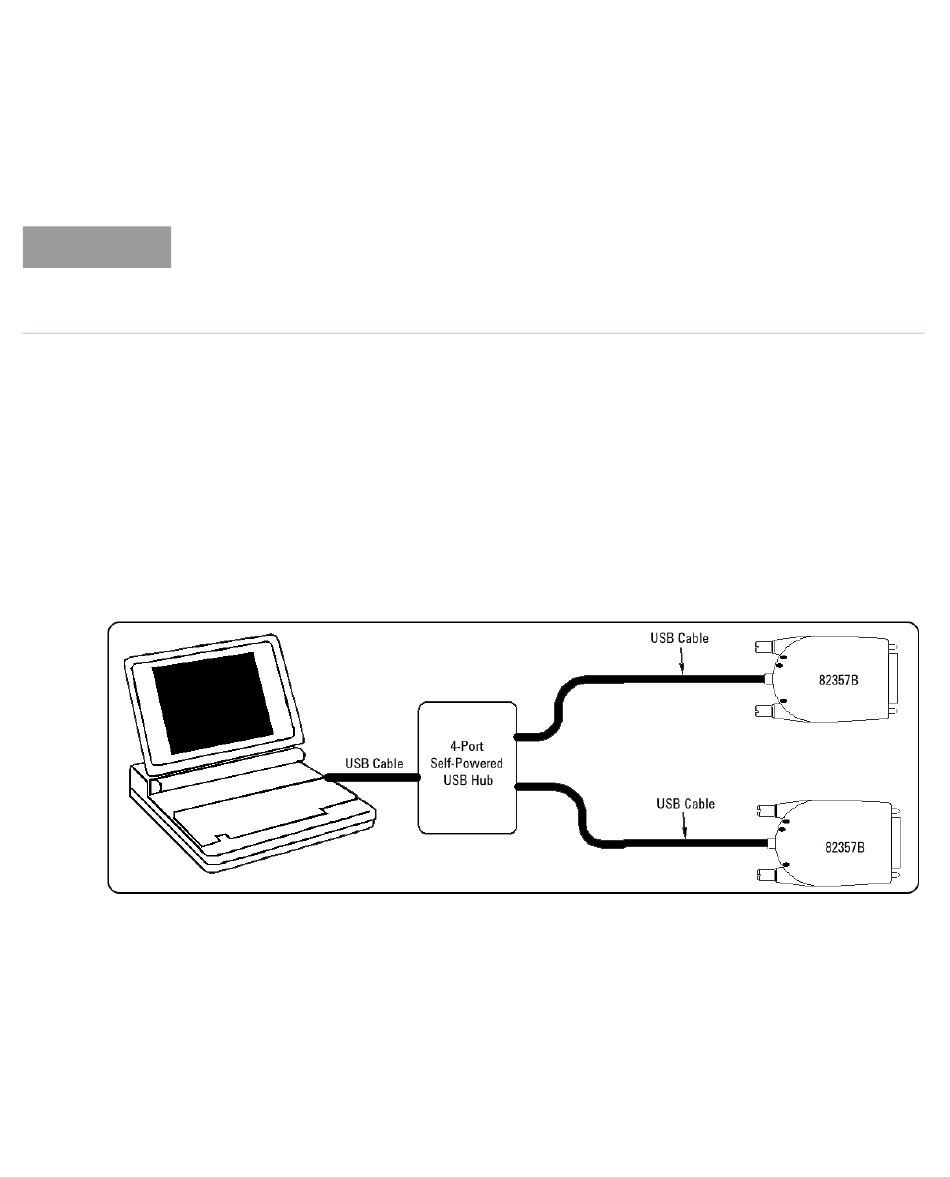

Figure 1-5
Keysight 82357B User's Guide
the hub is operating in self-powered mode.
self-powered USB hub with two 82357B USB/GPIB Interfaces connected.
available USB port on your PC.
is not necessary to connect GPIB instruments to any 82357B at this time.
Connecting the 82357B to a USB Hub
Installing the Keysight 82357B
Figure 1-5 shows a 4-port
